SKU: KMS830MLJ

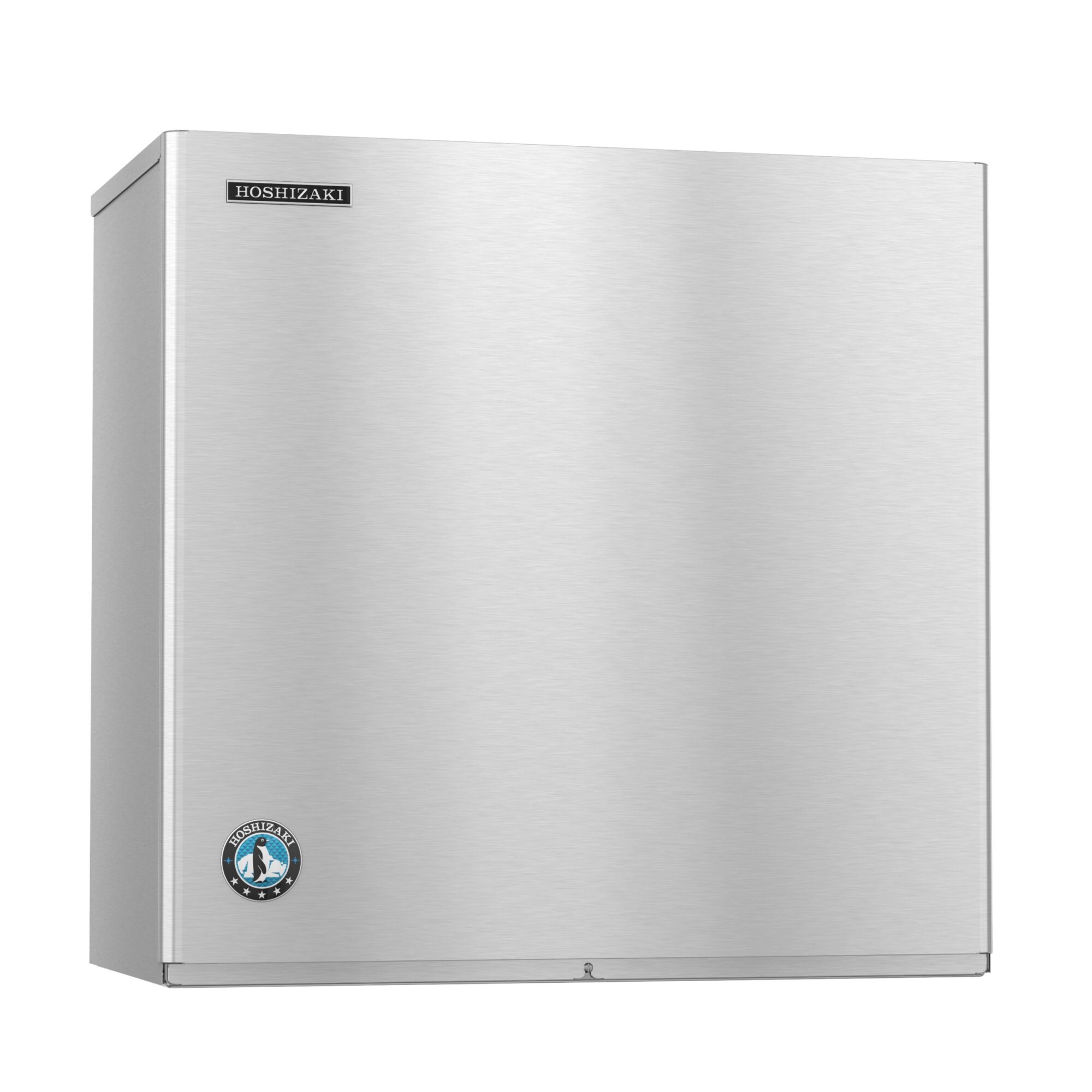

Hoshizaki KMS830MLJ Crescent Cuber Icemaker, Remote-cooled, Serenity Series Stainless Steel

Quick Specification More details

Width:
30"
Depth:
16.5"
Height:
29"
Type:
Ice Makers

About this product

Discontinued – Replaced by KMS-822MLJ
Dimensions: 30″ W x 16-1/2″ D x 29″ H
Up to 820 lbs of ice produced per 24 hours
Mount units side-by-side for x the ice production

Summer Sale

Clearance

SKU: KMS830MLJ

Hoshizaki KMS830MLJ Crescent Cuber Icemaker, Remote-cooled, Serenity Series Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
16.5"
Height:
29"
Type:
Ice Makers

About this product

Discontinued – Replaced by KMS-822MLJ
Dimensions: 30″ W x 16-1/2″ D x 29″ H
Up to 820 lbs of ice produced per 24 hours
Mount units side-by-side for x the ice production

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KMS830MLJ

Technical Details

Product details

Electrical Specs	Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser, Amperage: 10.6, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 14700 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	135
Utility Consumption	4.6 kWh per 100 lbs @ 90/70, 17.5 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	16.5 in.
Height	29 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMS-830MLJ with SRK-10J remote condenser is capable of producing approximately 820 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-10J icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-830MLJ requires a Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by KMS-822MLJ
Dimensions: 30″ W x 16-1/2″ D x 29″ H
Up to 820 lbs of ice produced per 24 hours
Mount units side-by-side for x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection:14700 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
10.6 amps (20 Amp Max fuse)
4.6 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
