SKU: KMS830MLH3

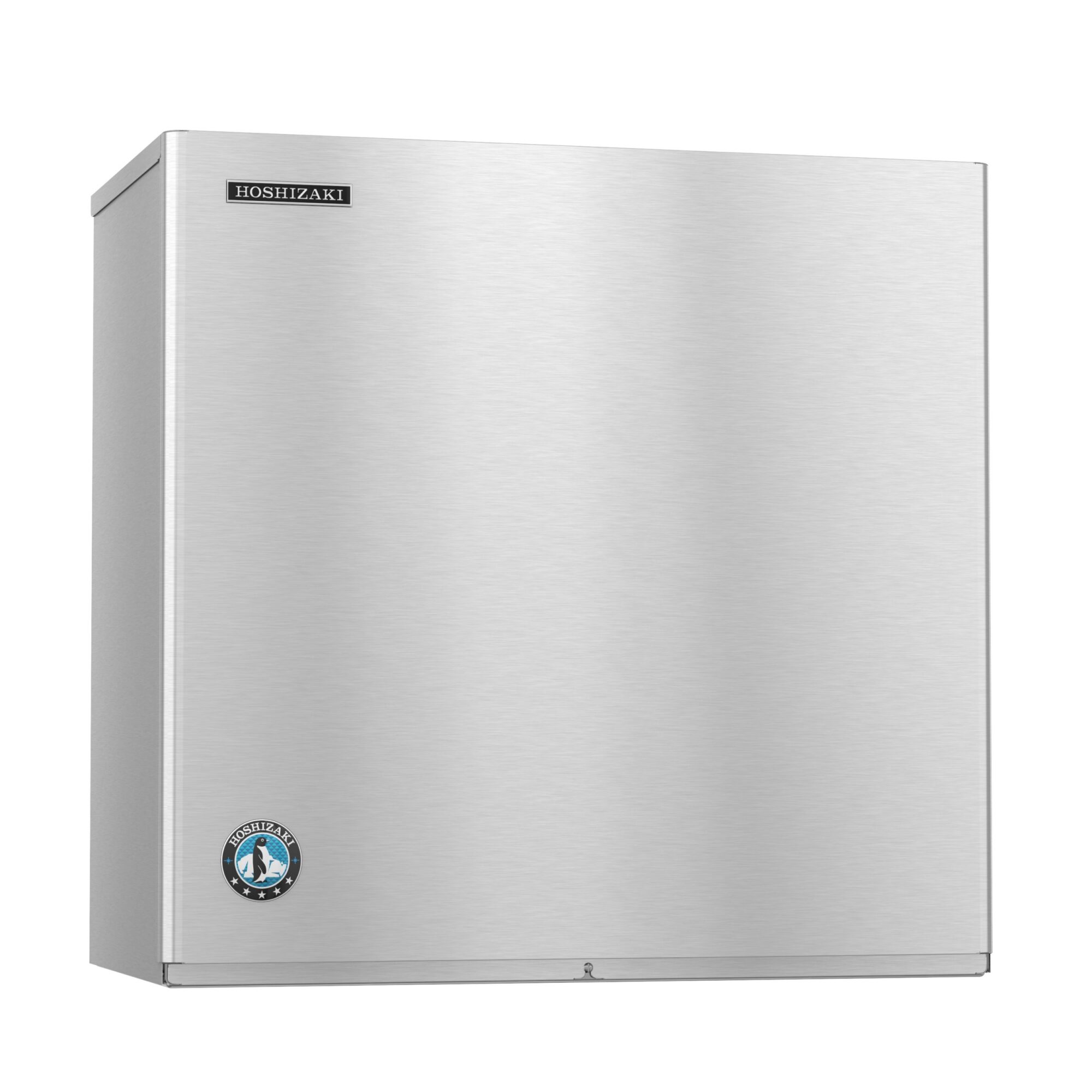

Hoshizaki KMS830MLH3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
30"
Depth:
16.5"
Height:
29"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 16-1/2″ D x 29″ H
Up to 791 lbs of ice produced per 24 hours
Remote-cooled with SRK-8H3
Produces crescent shaped ice cubes

SKU: KMS830MLH3

Hoshizaki KMS830MLH3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
16.5"
Height:
29"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 16-1/2″ D x 29″ H
Up to 791 lbs of ice produced per 24 hours
Remote-cooled with SRK-8H3
Produces crescent shaped ice cubes

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI KMS830MLH3

Technical Details

Product details

Electrical Specs	Three phase, 115v/60/1 (*115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser), Amperage: 7.5, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	206 lbs
Utility Consumption	5.4 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	16.5 in.
Height	29 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years
Parts	5 Years
Labor	5 Years

Description

The KMS-830MLH with SRK-8H3 remote condenser is capable of producing approximately 791 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-8H3 icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-830MLH requires a Three phase, 115v/60/1, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

Product Features

Dimensions: 30″ W x 16-1/2″ D x 29″ H
Up to 791 lbs of ice produced per 24 hours
Remote-cooled with SRK-8H3
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers
EverCheck™ alert system
CycleSaver™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
7.5 amps (20 Amp Max fuse)
5.4 kwh/100 lbs.@ 90/70
Three phase, 115v/60/1, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
