SKU: KMS2000MLJ3

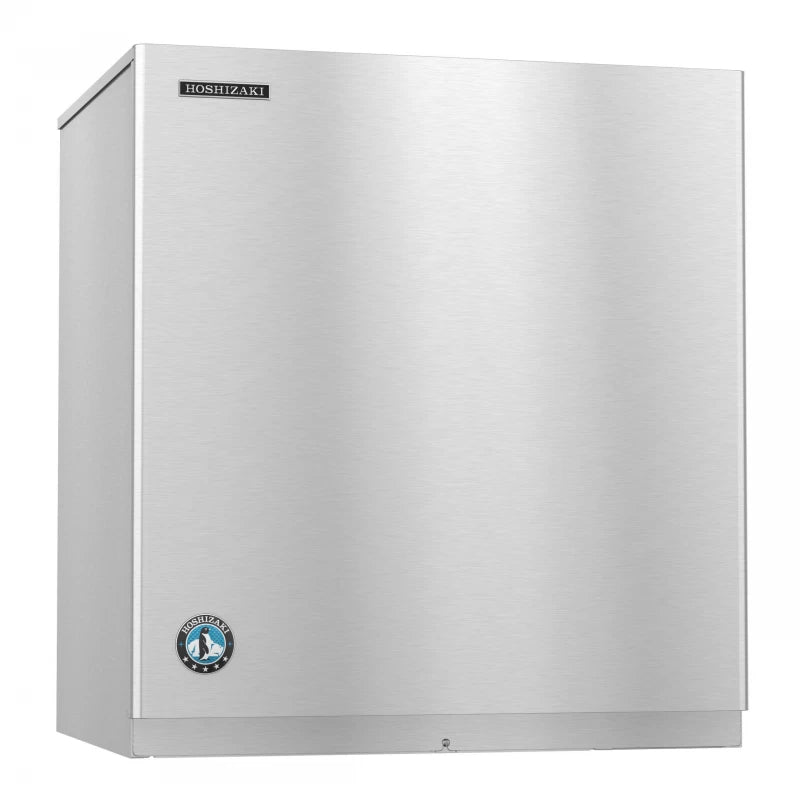

Hoshizaki KMS2000MLJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24"
Height:
32.88"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1910 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers

Summer Sale

Clearance

SKU: KMS2000MLJ3

Hoshizaki KMS2000MLJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24"
Height:
32.88"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1910 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI KMS2000MLJ3

Technical Details

Product details

Shipping Weight	206 lbs
Utility Consumption	7.1 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Three phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser, Amperage: 13, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 31200 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 201
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Dimensions & weight

Width	30 in.
Height	32.88 in.
Length	24 in.
Weight	206 lbs.
Depth	24 in.
Height	32.875 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	37.88 in.
Shipping Length	29 in.
Shipping Weight	246 lbs.
Total of Shipping Weight	246 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	13.7 ft³
Dimensional Weight	170.29 lbs.
Total of Cubes	13.7 ft³
Total of Dimensional Weight	170.29 lbs.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years
Parts	5 Years
Labor	5 Years

Description

The KMS-2000MLJ with SRK-20J3 remote condenser is capable of producing approximately 1910 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-20J3 icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-2000MLJ requires a Three phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers. Please consult the Specification Sheet for additional details.

Product Features

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1910 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (7.1 oz. / 201 g)
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
13 amps (20 Amp Max fuse)
Three phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts & Labor warranty on evaporator.
7.1 kwh/100 lbs.@ 90/70
EverCheck™ alert system
CycleSaver™ design
Heat Rejection:31200 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
