SKU: KMS2000MLH

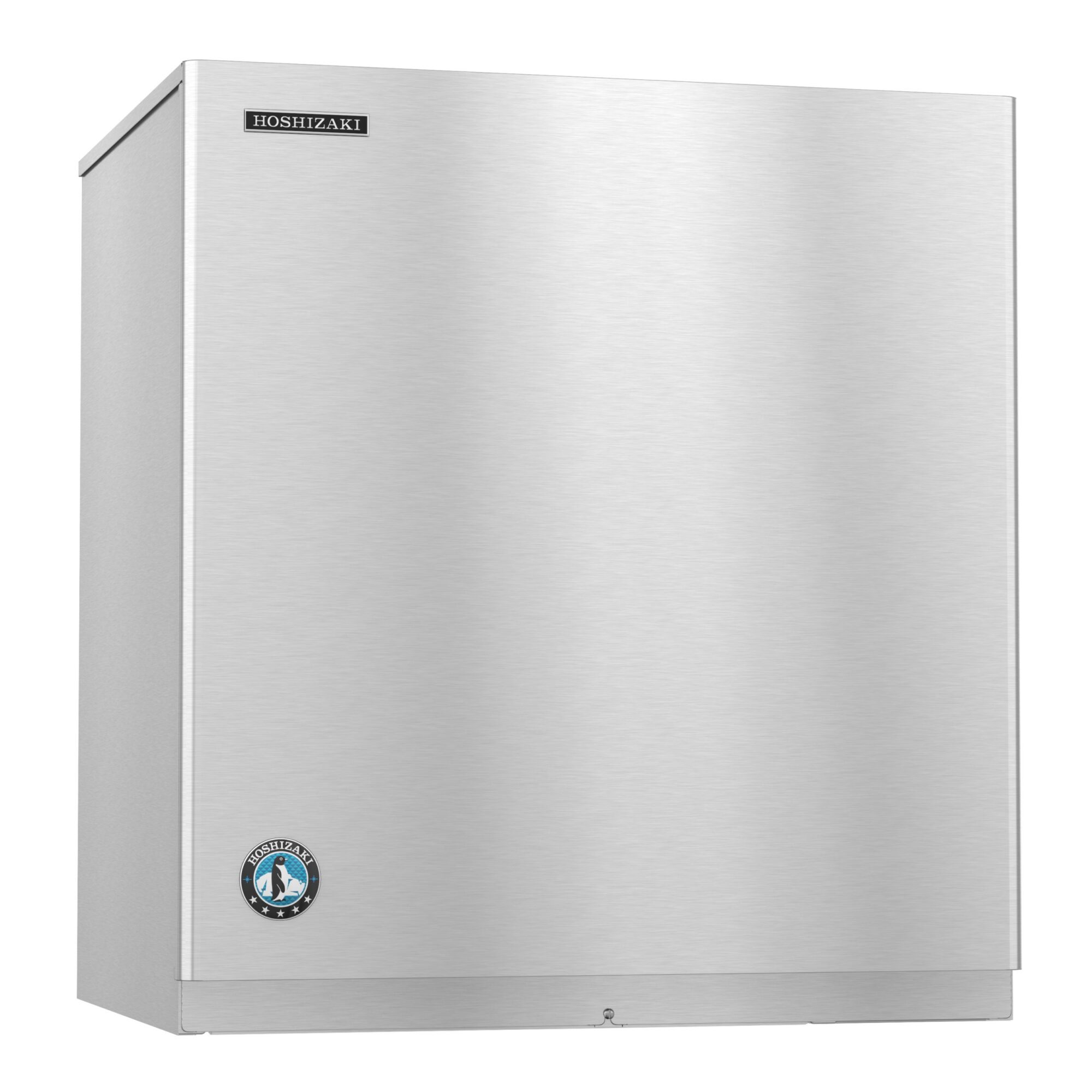

Hoshizaki KMS2000MLH Crescent Cuber Icemaker, Remote-cooled, Serenity Series Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24"
Height:
32.875"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1861 lbs of ice produced per 24 hours
Remote-cooled with SRK-20H

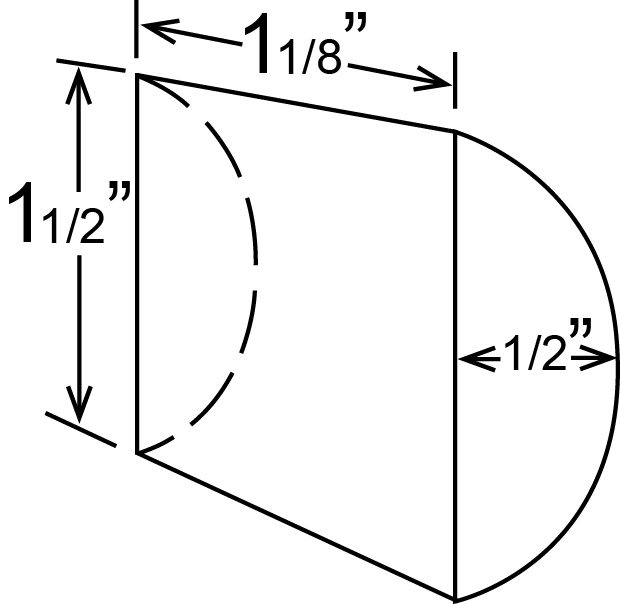

Produces crescent shaped ice cubes

SKU: KMS2000MLH

Hoshizaki KMS2000MLH Crescent Cuber Icemaker, Remote-cooled, Serenity Series Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24"
Height:
32.875"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1861 lbs of ice produced per 24 hours
Remote-cooled with SRK-20H
Produces crescent shaped ice cubes

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI KMS2000MLH

Technical Details

Product details

Electrical Specs	Single phase, See Remote Condenser (*115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser), Amperage: 21.3, Max Fuse/HACR Breaker: 30 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	325
Utility Consumption	4.7 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	24 in.
Height	32.875 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMS-2000MLH with SRK-20H remote condenser is capable of producing approximately 1861 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-20H icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-2000MLH requires a Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.

Product Features

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1861 lbs of ice produced per 24 hours
Remote-cooled with SRK-20H
Produces crescent shaped ice cubes
Durable stainless steel exterior

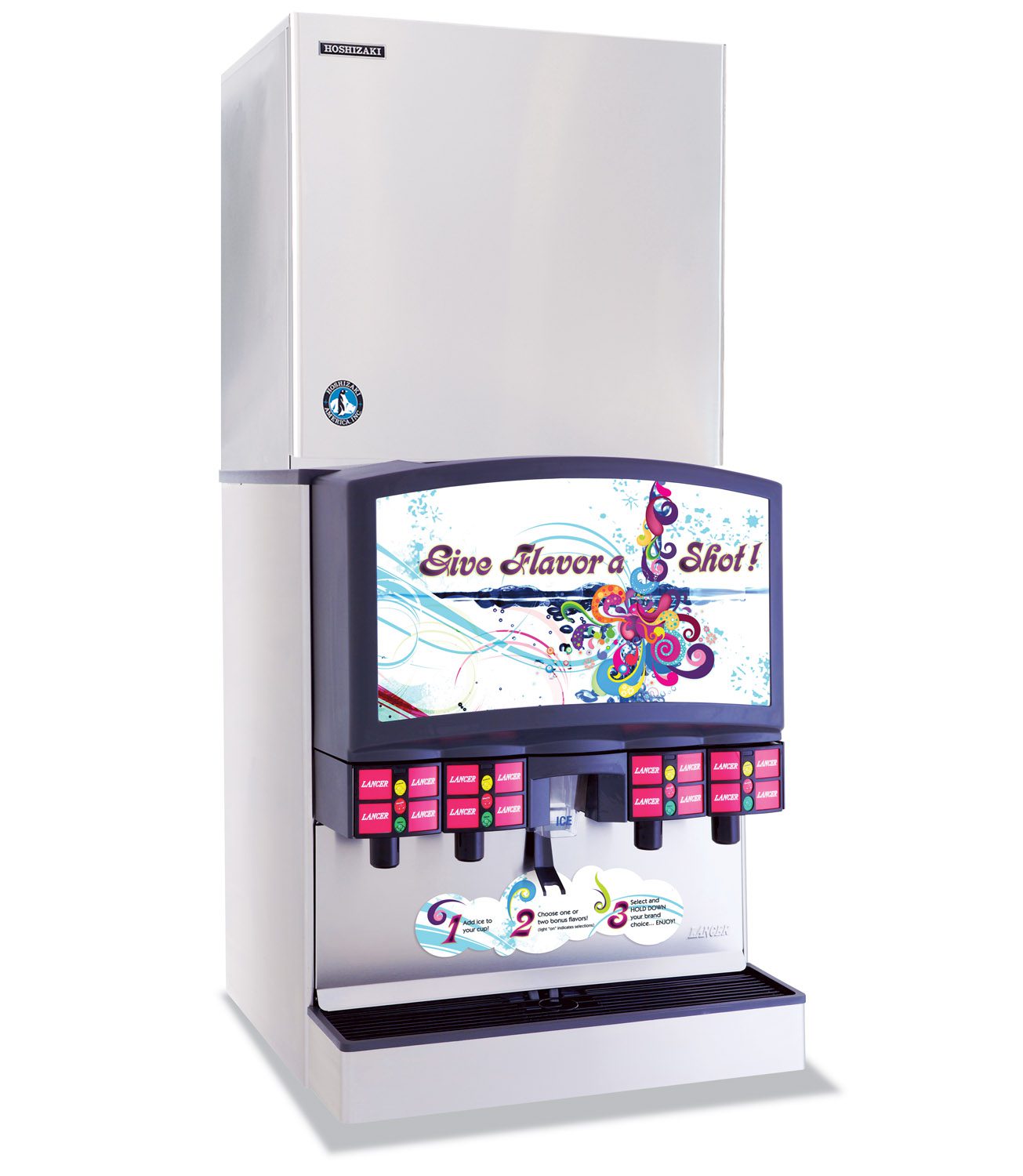

Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
21.3 amps (30 Amp Max fuse)
4.7 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
