SKU: KMS1402MLJ3

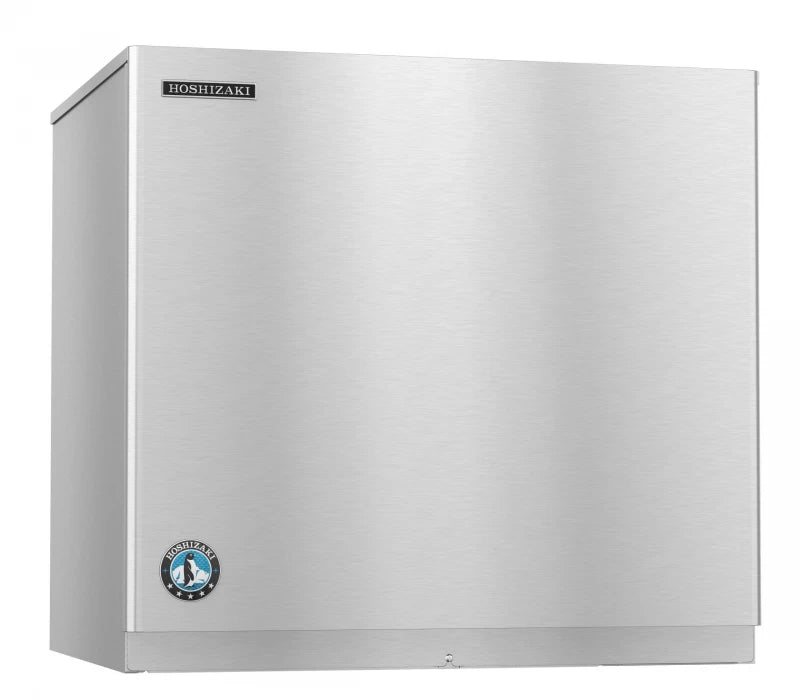

Hoshizaki KMS1402MLJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24"
Height:
28"
Type:
Ice Makers

About this product

Up to 1474 lbs of ice produced per 24 hours
Remote-cooled with SRK-15J3
Dimensions: 30″ W x 24″ D x 28″ H
Durable stainless steel exterior

Summer Sale

Clearance

SKU: KMS1402MLJ3

Hoshizaki KMS1402MLJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24"
Height:
28"
Type:
Ice Makers

About this product

Up to 1474 lbs of ice produced per 24 hours
Remote-cooled with SRK-15J3
Dimensions: 30″ W x 24″ D x 28″ H
Durable stainless steel exterior

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI KMS1402MLJ3

Technical Details

Product details

Electrical Specs	Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-15J3 Remote Condenser), Amperage: 9.2, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.55 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 28000 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	185

Dimensions & weight

Weight	185 lbs.
Width	30 in.
Depth	24 in.
Height	28 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	225 lbs.
Total of Shipping Weight	225 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMS-1402MLJ-3 with SRK-15J3 remote condenser is capable of producing approximately 1474 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-15J3 icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-1402MLJ-3 requires a Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-15J3 Remote Condenser) electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, B-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details. KMD-141MLJ.

Product Features

Up to 1474 lbs of ice produced per 24 hours
Remote-cooled with SRK-15J3
Dimensions: 30″ W x 24″ D x 28″ H
Durable stainless steel exterior

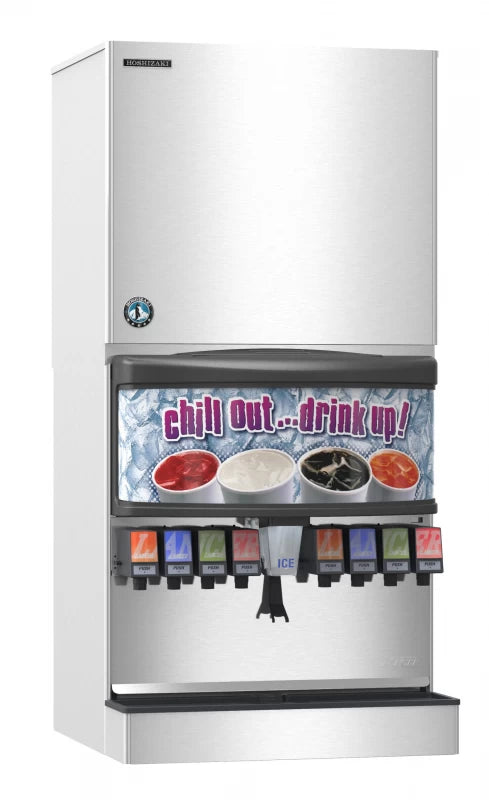

Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, B-500, B-700, B-800, B-900, B-1150, B-1300
R-404A refrigerant (7.1 oz. / 200 g)
Produces crescent shaped ice cubes
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
9.2 amps (20 Amp Max fuse)
4.55 kwh/100 lbs.@ 90/70
Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-15J3 Remote Condenser)
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts & Labor warranty on evaporator.
EverCheck™ alert system
CycleSaver™ design
Heat Rejection:28000 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
