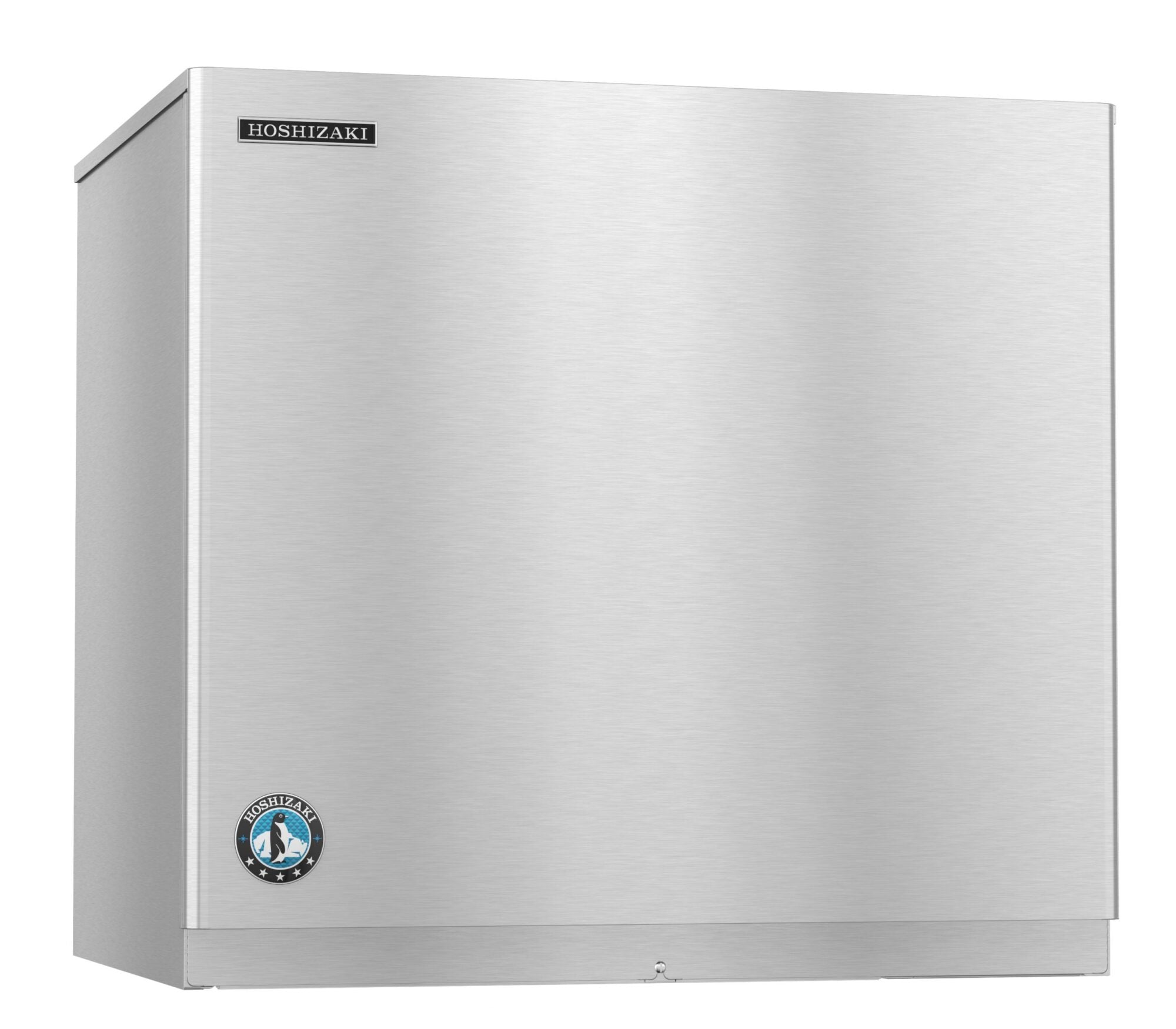

Hoshizaki KMS1401MLJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for HOSHIZAKI KMS1401MLJ3
Technical Details
Product details
| Electrical Specs | Three phase, See Remote Condenser (*115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser), Amperage: 11.5, Max Fuse/HACR Breaker: 20 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g) |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 177 lbs |
| Utility Consumption | 4.7 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70 |
Dimensions & weight
| Width | 30 in. |
| Depth | 24 in. |
| Height | 28 in. |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
| Parts | 5 Years |
| Labor | 5 Years |
Description
The KMS-1401MLJ with SRK-14J3 remote condenser is capable of producing approximately 1400 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-14J3 icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-1401MLJ requires a Three phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.
Product Features
- Discontinued – Replaced by KMS-2000MLJ
- Dimensions: 30″ W x 24″ D x 28″ H
- Up to 1400 lbs of ice produced per 24 hours
- Remote-cooled with SRK-14J3
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (7.1 oz. / 200 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.5 amps (20 Amp Max fuse)
- 4.7 kwh/100 lbs.@ 90/70
- Three phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
