Hoshizaki KMS1122MLJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel
Sale price
Contact us for Pricing
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for Hoshizaki KMS1122MLJ3
Technical Details
Product details
| Electrical Specs | Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J3 Remote Condenser), Amperage: 10.5, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 4.05 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 21300 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 145 |
Dimensions & weight
| Weight | 145 lbs. |
| Width | 22 in. |
| Depth | 18.125 in. |
| Height | 31.25 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
Description

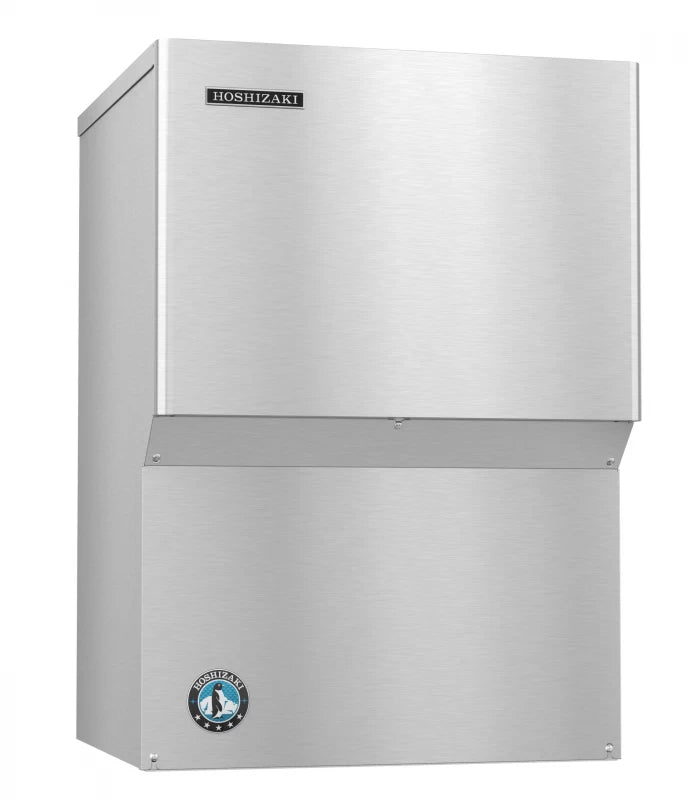

The KMS-1122MLJ-3 with SRK-12J3 remote condenser is capable of producing approximately 1151 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-12J3 icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-1122MLJ-3 requires a Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J3 Remote Condenser) electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. KMD-111MLJ.
Product Features
- Dimensions: 22″ W x 18-1/8″ D x 31-1/4″ H
- Up to 1151 lbs of ice produced per 24 hours
- Remote-cooled with SRK-12J3
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

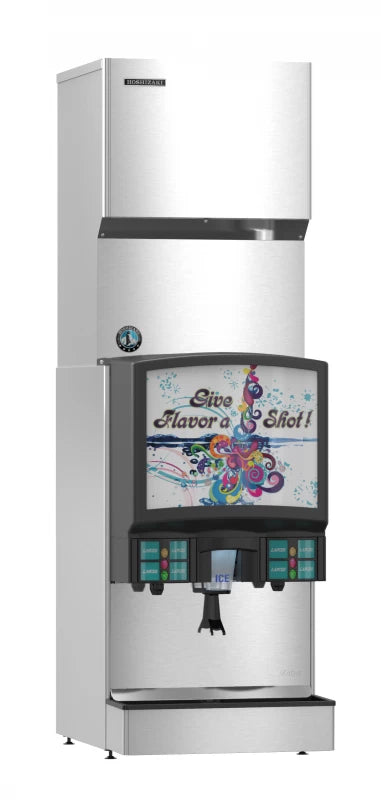

- Compatible bins & dispensers, sold separately: Beverage Dispensers
- R-404A refrigerant (7.1 oz. / 200 g)
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 10.5 amps (20 Amp Max fuse)
- 4.05 kwh/100 lbs.@ 90/70
- Five Years: Parts & Labor warranty on evaporator.
- Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J3 Remote Condenser)
- EverCheck™ alert system
- CycleSaver™ design
- Heat Rejection:21300 BTU/hr
- ENERGY STAR® qualified
- Three Years: Parts & Labor warranty on entire machine.
