SKU: KML631MAH

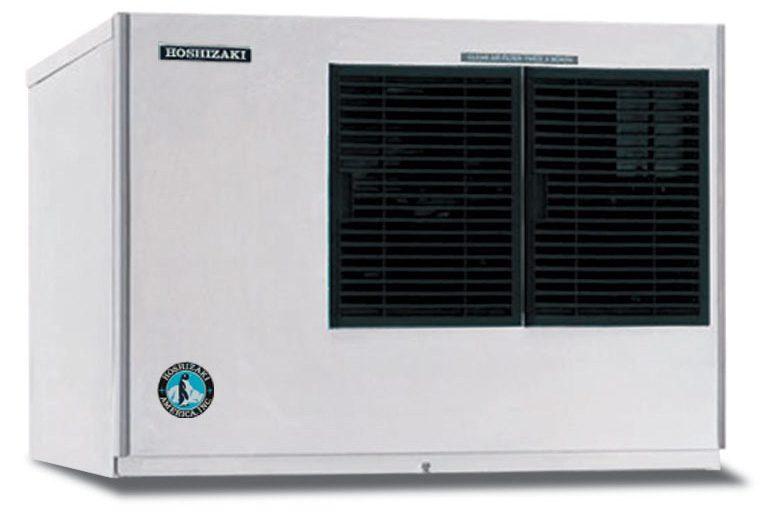

HOSHIZAKI KML631MAH KML-631MAH Crescent Cuber Icemaker, Air-cooled

Name: HOSHIZAKI KML631MAH KML-631MAH Crescent Cuber Icemaker, Air-cooled
Brand: HOSHIZAKI
SKU: KML631MAH
Availability: OutOfStock

Quick Specification More details

Width:
30.0 Inch
Depth:
27.38 Inch
Height:
26.0 Inch
Type:
Ice Makers

About this product

Discontinued - Replaced by KML-700MAJ
Dimensions: 30" W x 27-3/8" D x 26" H
Up to 605 lbs of ice produced per 24 hours
Air-cooled, Low Profile Modular, 30" Wide Icemaker

SKU: KML631MAH

HOSHIZAKI KML631MAH KML-631MAH Crescent Cuber Icemaker, Air-cooled

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30.0 Inch
Depth:
27.38 Inch
Height:
26.0 Inch
Type:
Ice Makers

About this product

Discontinued - Replaced by KML-700MAJ
Dimensions: 30" W x 27-3/8" D x 26" H
Up to 605 lbs of ice produced per 24 hours
Air-cooled, Low Profile Modular, 30" Wide Icemaker

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

Product Details for HOSHIZAKI KML631MAH

Technical Details

Features

Discontinued - Replaced by KML-700MAJ	Yes
Dimensions: 30" W x 27-3/8" D x 26" H	Yes
Up to 605 lbs of ice produced per 24 hours	Yes
Air-cooled, Low Profile Modular, 30" Wide Icemaker	Yes

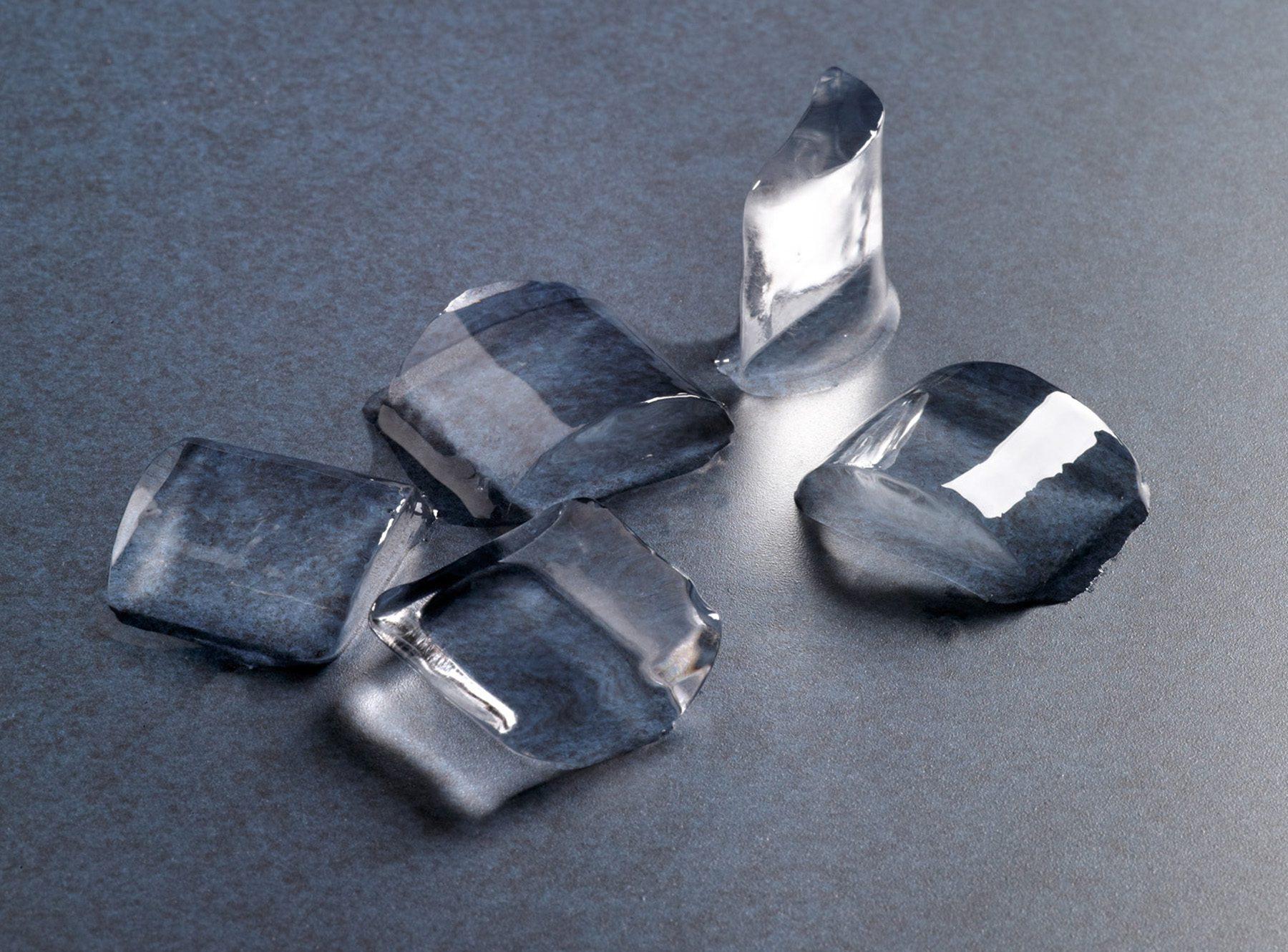

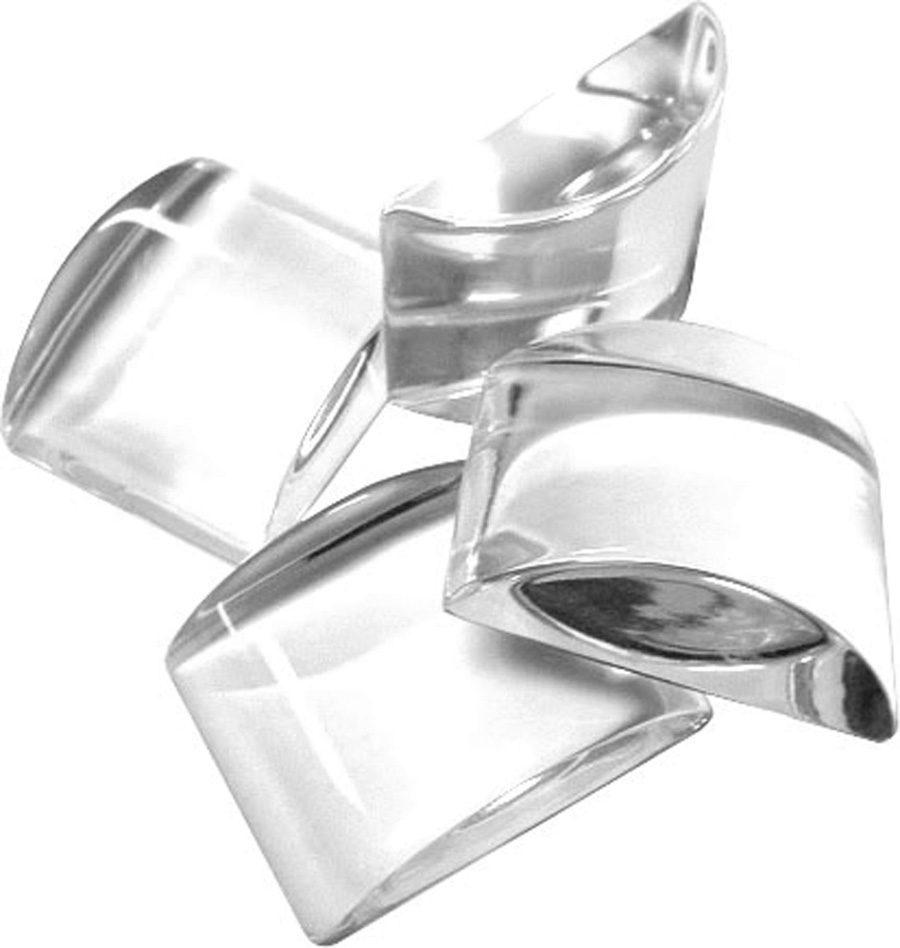

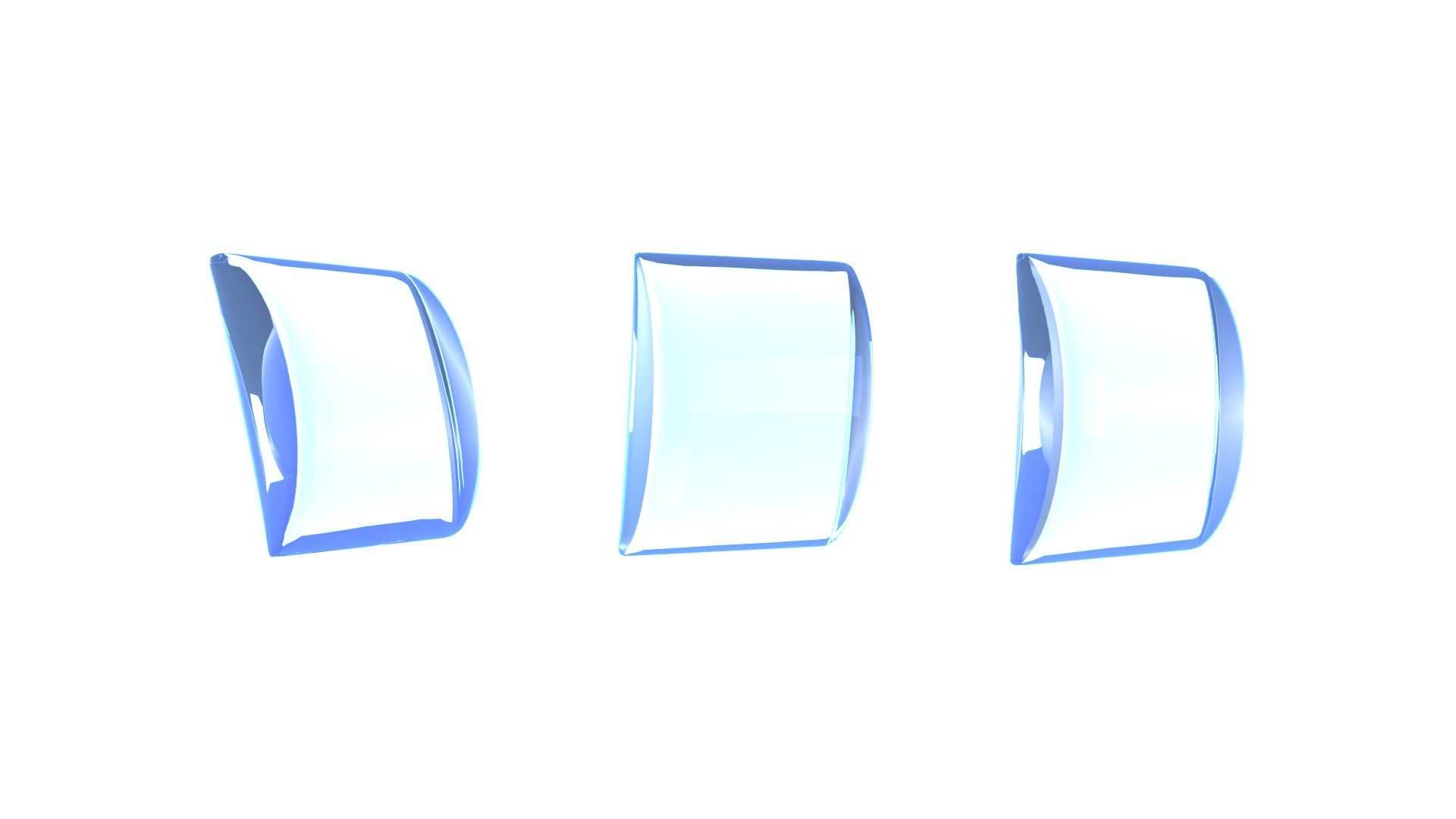

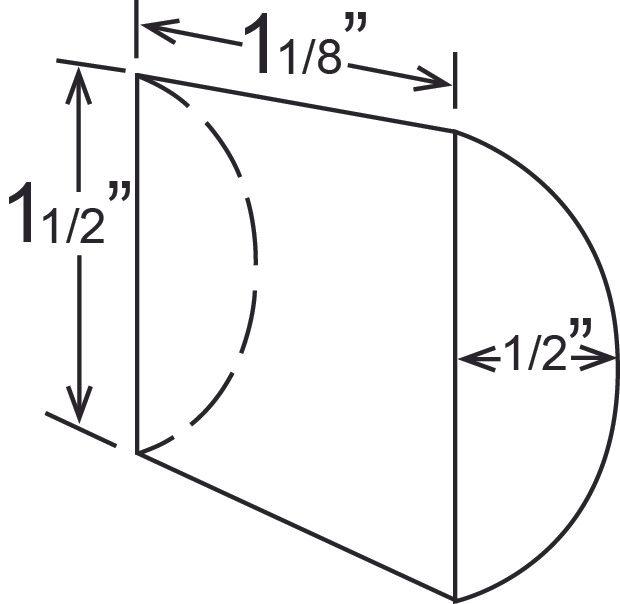

Produces crescent shaped ice cubes	Yes
Durable stainless steel exterior	Yes
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B	Yes
EverCheck(TM) alert system	Yes
CycleSaver(TM) design	Yes
R-404A refrigerant ( / )	Yes
Heat Rejection: BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 187 - 253V	Yes
8.1 amps (20 Amp Max fuse)	Yes
5.7 kwh/100 lbs.@ 90/70	Yes
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Three Years: Parts & Labor warranty on entire machine.	Yes
Five Years: Parts & Labor warranty on evaporator.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	No
Smart Device	No

Features

Discontinued - Replaced by KML-700MAJ
Dimensions: 30" W x 27-3/8" D x 26" H
Up to 605 lbs of ice produced per 24 hours
Air-cooled, Low Profile Modular, 30" Wide Icemaker
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
EverCheck(TM) alert system
CycleSaver(TM) design
R-404A refrigerant ( / )
Heat Rejection: BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 187 - 253V
8.1 amps (20 Amp Max fuse)
5.7 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Description

The KML-631MAH is capable of producing approximately 605 lbs of crescent cubed ice. Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Low Profile Modular ice makerfeatures an CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KML-631MAH requires a Single phase, 208-230v/60/1 *3 wire with dedicated neutral for 115V electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.
