SKU: KMD860MRJ

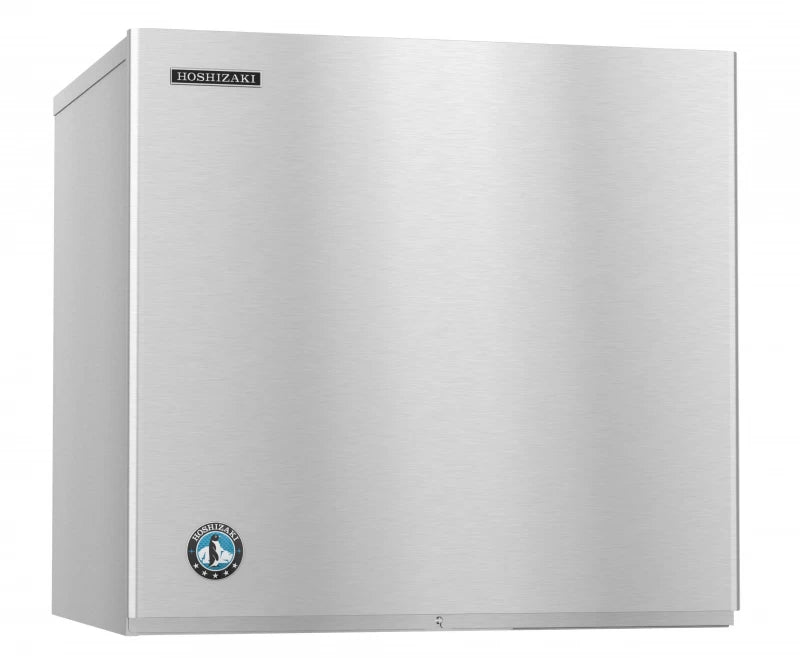

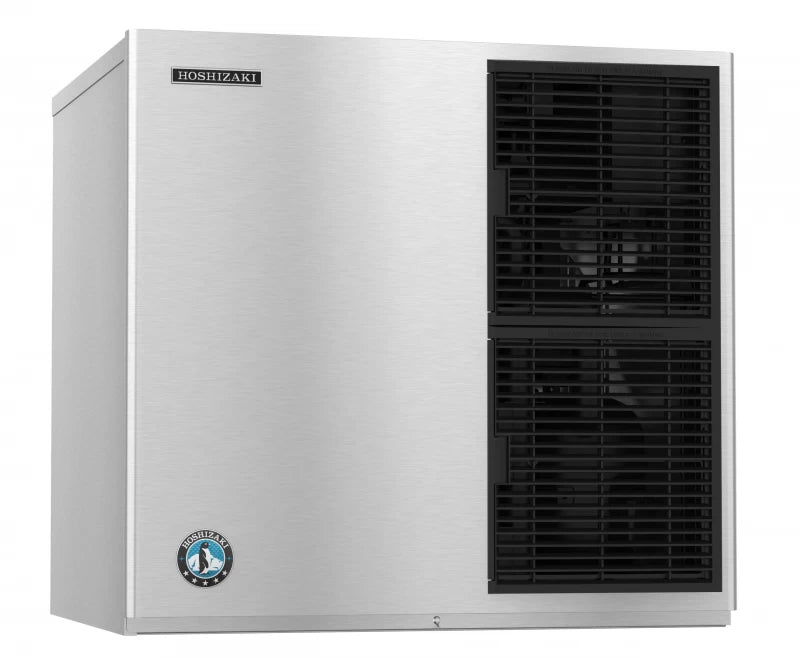

Hoshizaki KMD860MRJ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24.625"
Height:
28"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 24-5/8″ D x 28″ H
Up to 967 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

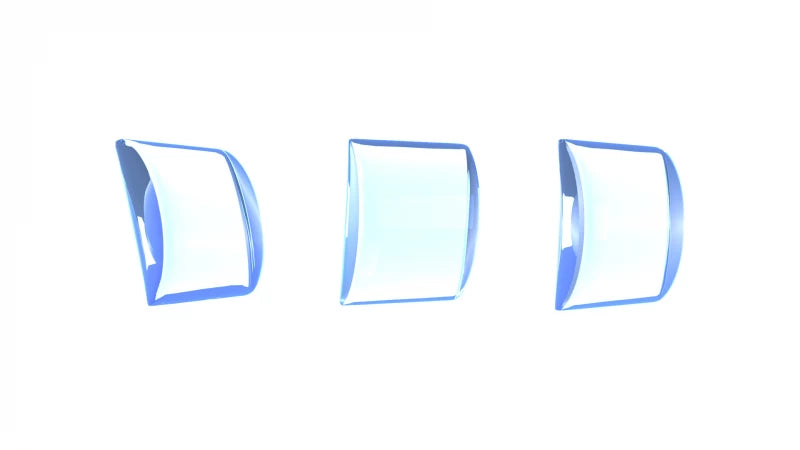

Produces crescent shaped ice cubes

Summer Sale

Clearance

SKU: KMD860MRJ

Hoshizaki KMD860MRJ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24.625"
Height:
28"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 24-5/8″ D x 28″ H
Up to 967 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KMD860MRJ

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.5, Max Fuse/HACR Breaker: 20 A
Utility Consumption	5.05 kWh per 100 lbs @ 90/70, 18.2 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 13000 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 15.2 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	260

Dimensions & weight

Weight	260 lbs.
Width	30 in.
Depth	24.625 in.
Height	28 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	300 lbs.
Total of Shipping Weight	300 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMD-860MRJ is capable of producing approximately 967 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-9F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MRJ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. KMD-860MRJZ.

Product Features

Dimensions: 30″ W x 24-5/8″ D x 28″ H
Up to 967 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Durable stainless steel exterior
R-404A refrigerant (5 lbs. 15.2 oz. / 2699 g)
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
12.5 amps (20 Amp Max fuse)
5.05 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts & Labor warranty on evaporator.
Discontinued – Replaced by KMD-860MRJZ
EverCheck™ alert system
CycleSaver™ design
Heat Rejection:13000 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
