SKU: KMD460MWH

Hoshizaki KMD460MWH Crescent Cuber Icemaker, Water-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24.25"
Height:
22.125"
Type:
Ice Makers

About this product

Discontinued – Replaced by KMD-460MWJ
Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
Up to 505 lbs of ice produced per 24 hours
Water-cooled, Modular, 30″ Wide Icemaker

Summer Sale

Clearance

SKU: KMD460MWH

Hoshizaki KMD460MWH Crescent Cuber Icemaker, Water-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24.25"
Height:
22.125"
Type:
Ice Makers

About this product

Discontinued – Replaced by KMD-460MWJ
Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
Up to 505 lbs of ice produced per 24 hours
Water-cooled, Modular, 30″ Wide Icemaker

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KMD460MWH

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 6400 BTU/hr, Refrigerant Charge: R-404A, (14.1 oz. / 400
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Drain Hard Pipe or E
Shipping Weight	170
Utility Consumption	4.1 kWh per 100 lbs @ 90/70, 16.9 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	24.25 in.
Height	22.125 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

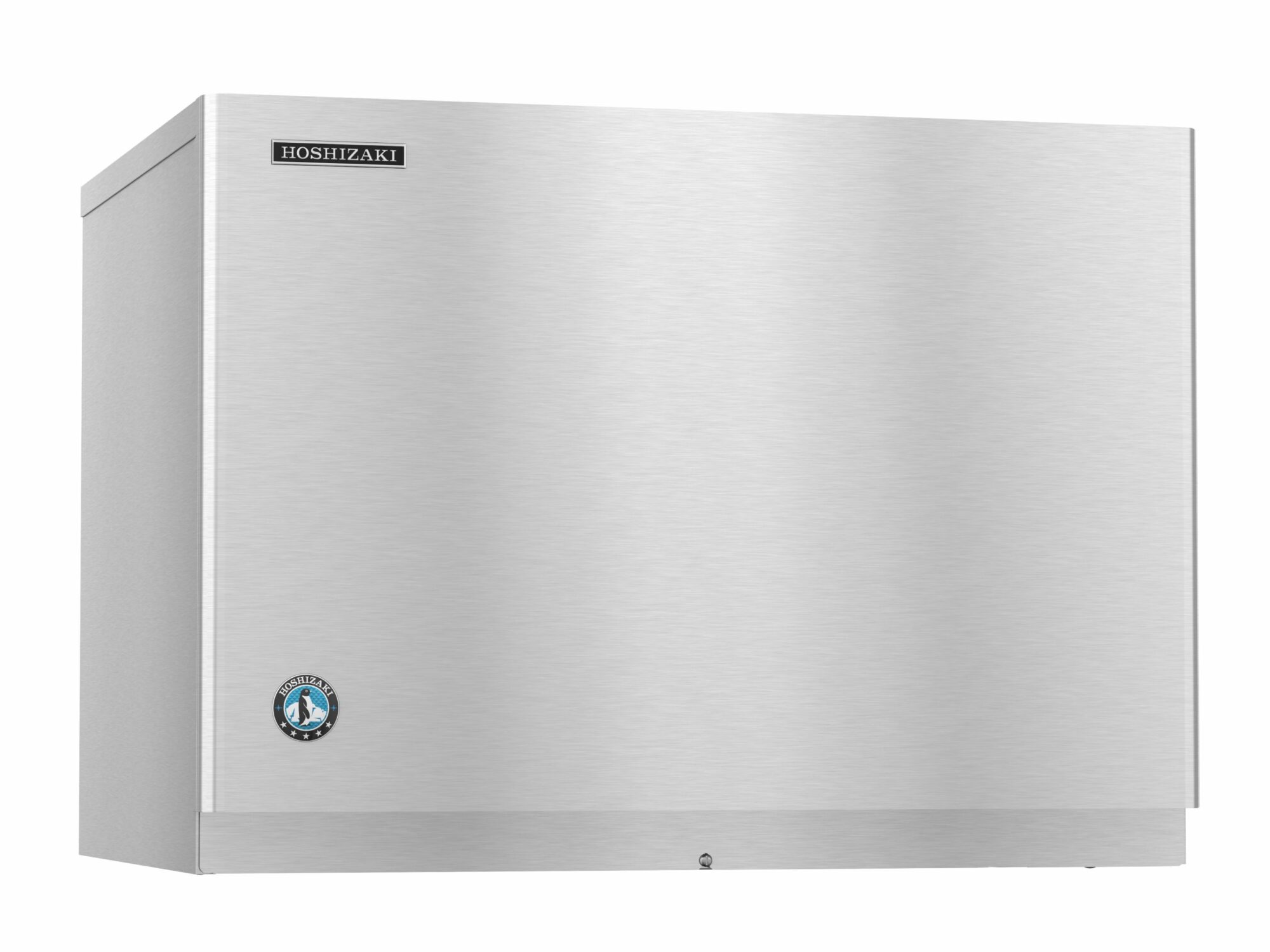

The KMD-460MWH is capable of producing approximately 505 lbs of crescent cubed ice. Our efficient stainless steel evaporators create our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-460MWH requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by KMD-460MWJ
Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
Up to 505 lbs of ice produced per 24 hours
Water-cooled, Modular, 30″ Wide Icemaker

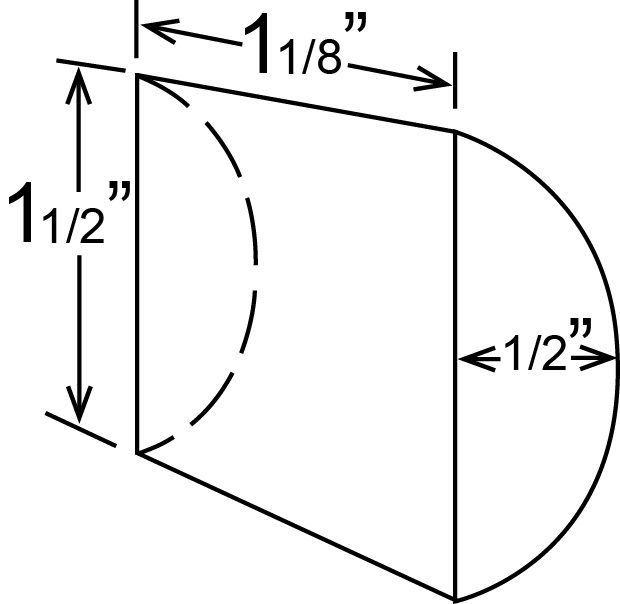

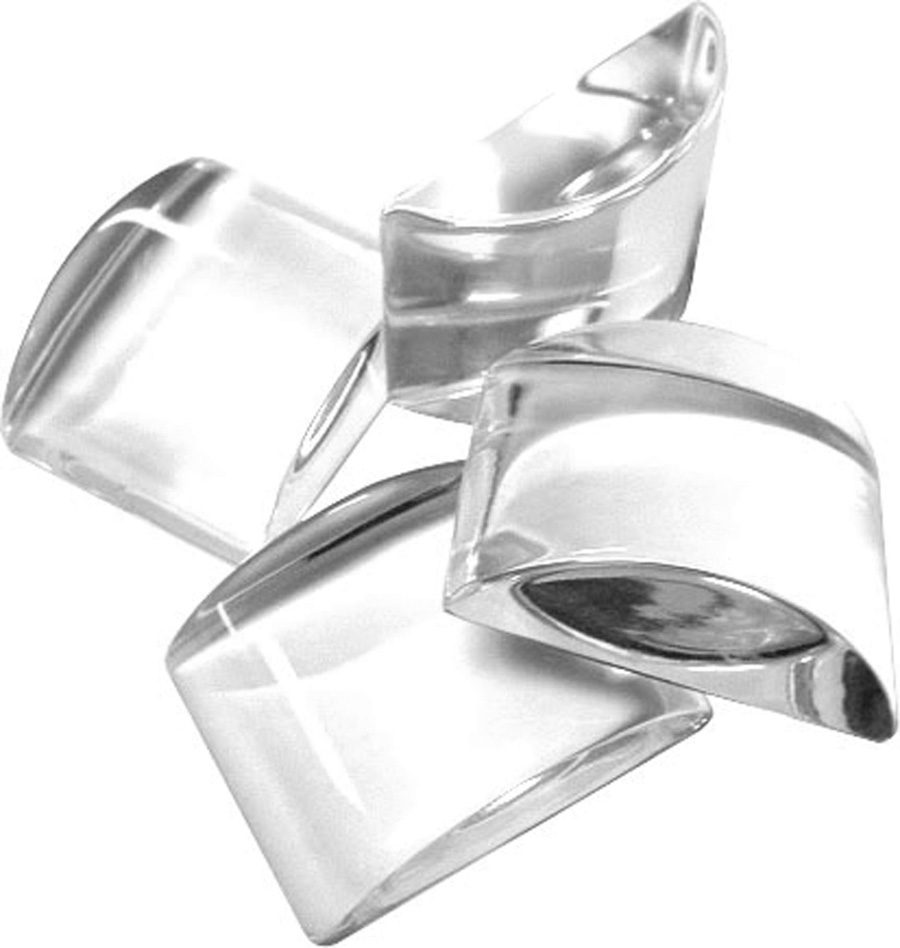

Produces crescent shaped ice cubes
Durable stainless steel exterior

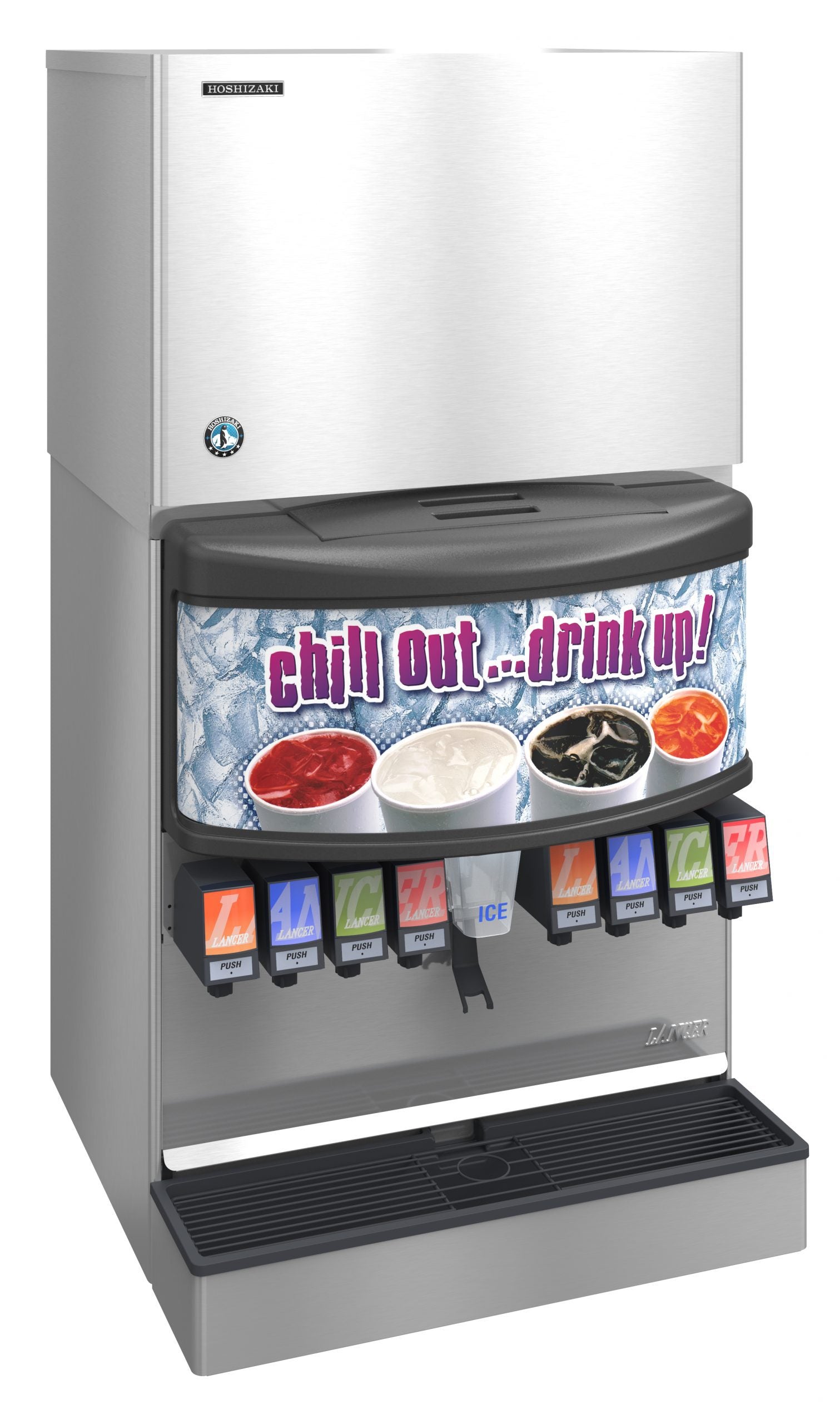

Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (14.1 oz. / 400 g)
Heat Rejection:6400 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
8.5 amps (15 Amp Max fuse)
4.1 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
