SKU: KMD450MAH

Hoshizaki KMD450MAH Crescent Cuber Icemaker, Air-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
24.25"
Height:
22.125"
Type:
Ice Makers

About this product

Discontinued – Replaced by KMD-460MAH
Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
Up to 457 lbs of ice produced per 24 hours
Air-cooled, Modular, 30″ Wide Icemaker

Summer Sale

Clearance

SKU: KMD450MAH

Hoshizaki KMD450MAH Crescent Cuber Icemaker, Air-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
24.25"
Height:
22.125"
Type:
Ice Makers

About this product

Discontinued – Replaced by KMD-460MAH
Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
Up to 457 lbs of ice produced per 24 hours
Air-cooled, Modular, 30″ Wide Icemaker

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KMD450MAH

Technical Details

Product details

Electrical Specs	Single phase, 115-120v/60/1 , Amperage: 10, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	170
Utility Consumption	5.48 kWh per 100 lbs @ 90/70, 18.9 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	24.25 in.
Height	22.125 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KMD-450MAH is capable of producing approximately 457 lbs of crescent cubed ice. Our efficient stainless steel evaporators create our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-450MAH requires a Single phase, 115-120v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-200H. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by KMD-460MAH
Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
Up to 457 lbs of ice produced per 24 hours
Air-cooled, Modular, 30″ Wide Icemaker

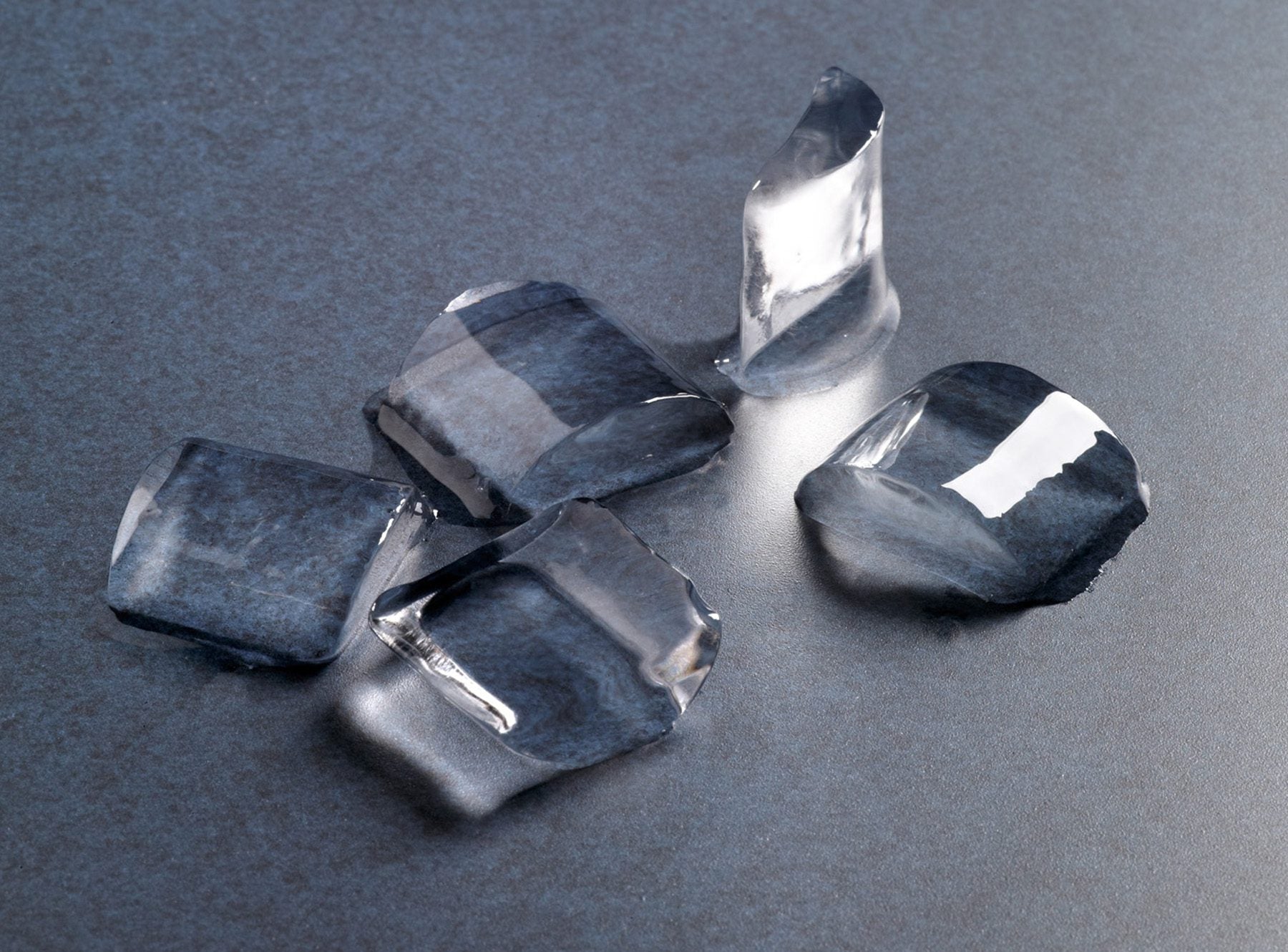

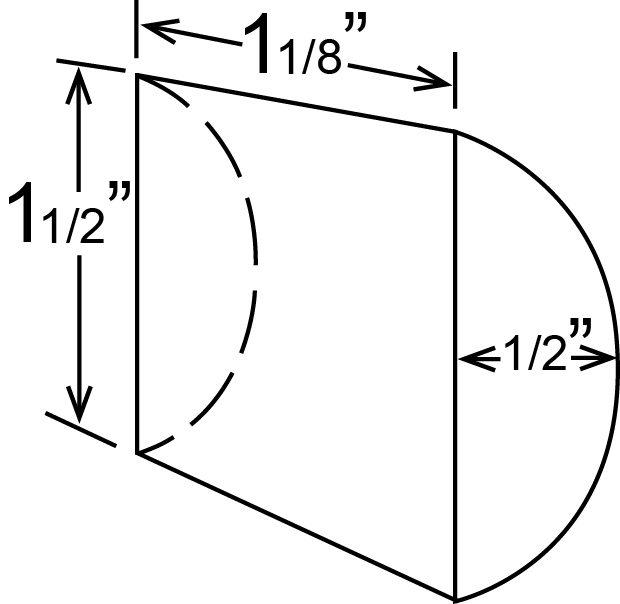

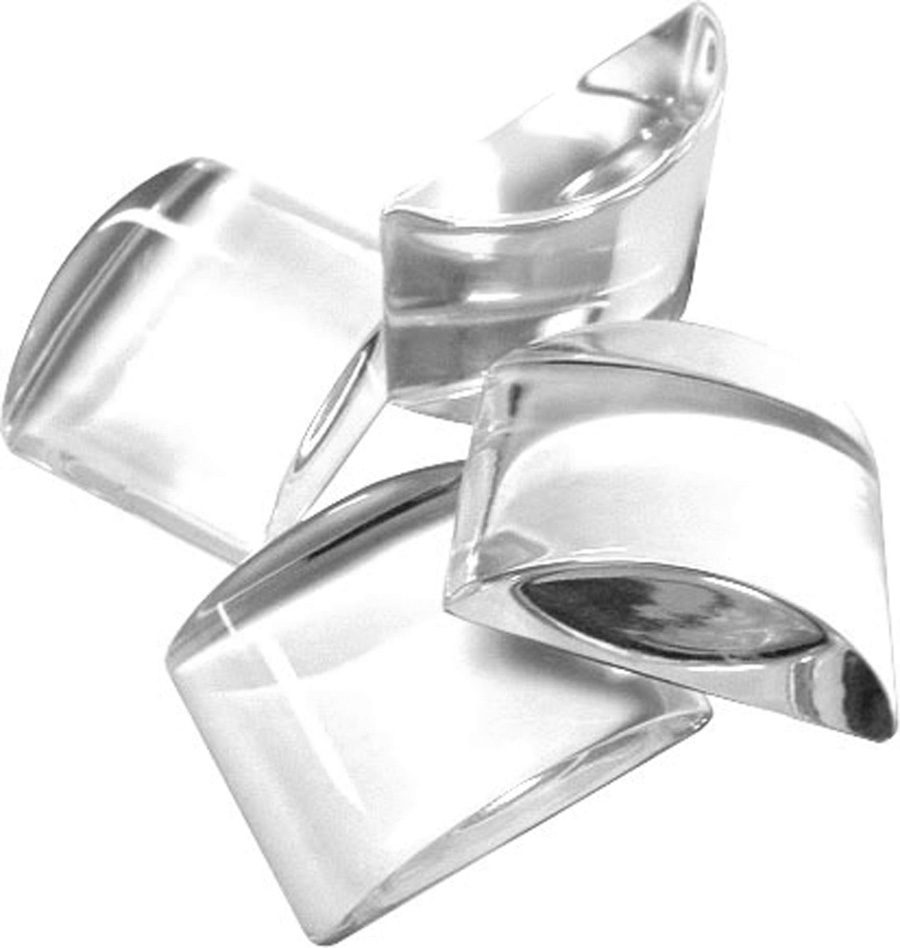

Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-200H
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant ( / )
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
10 amps (15 Amp Max fuse)
5.48 kwh/100 lbs.@ 90/70
Single phase, 115-120v/60/1
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
