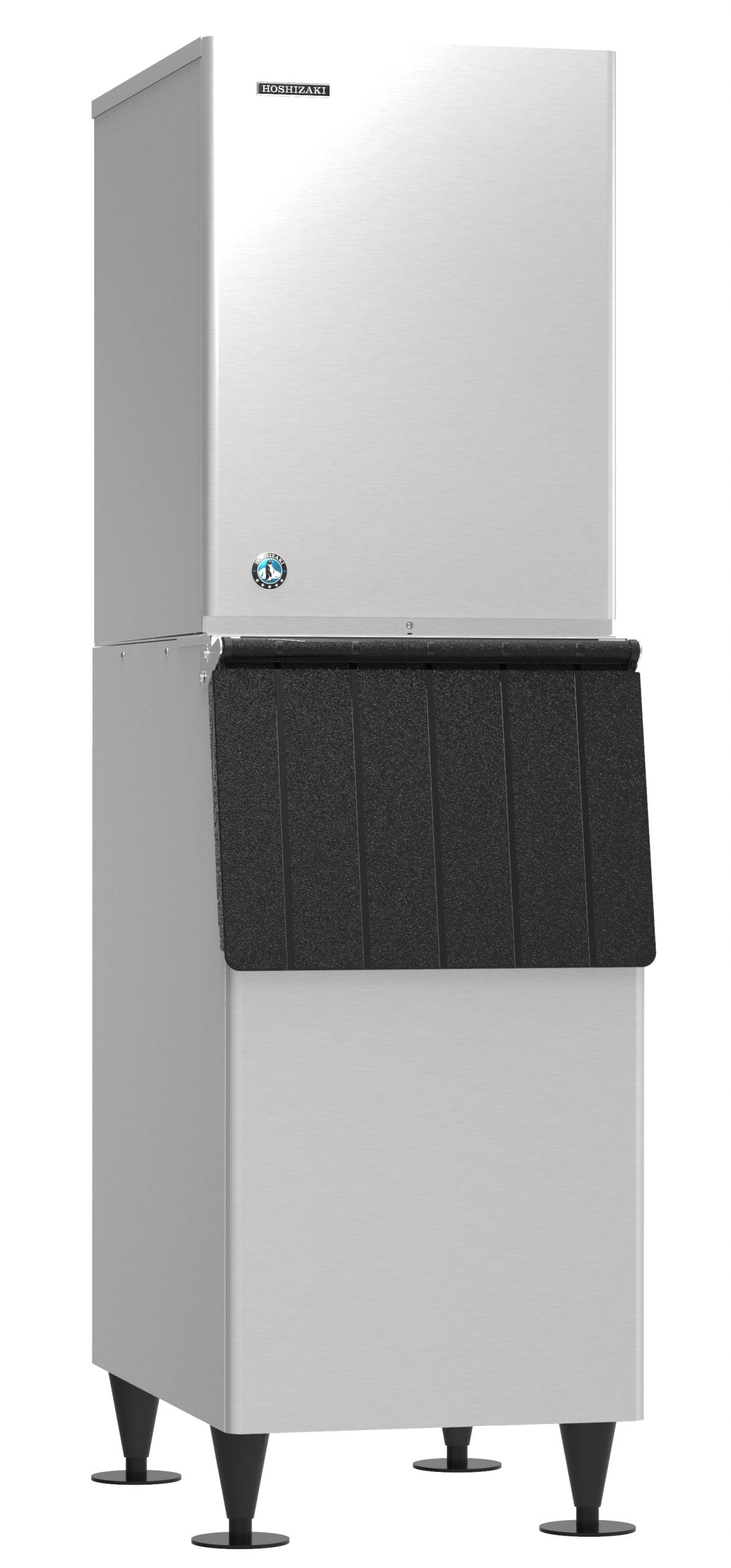

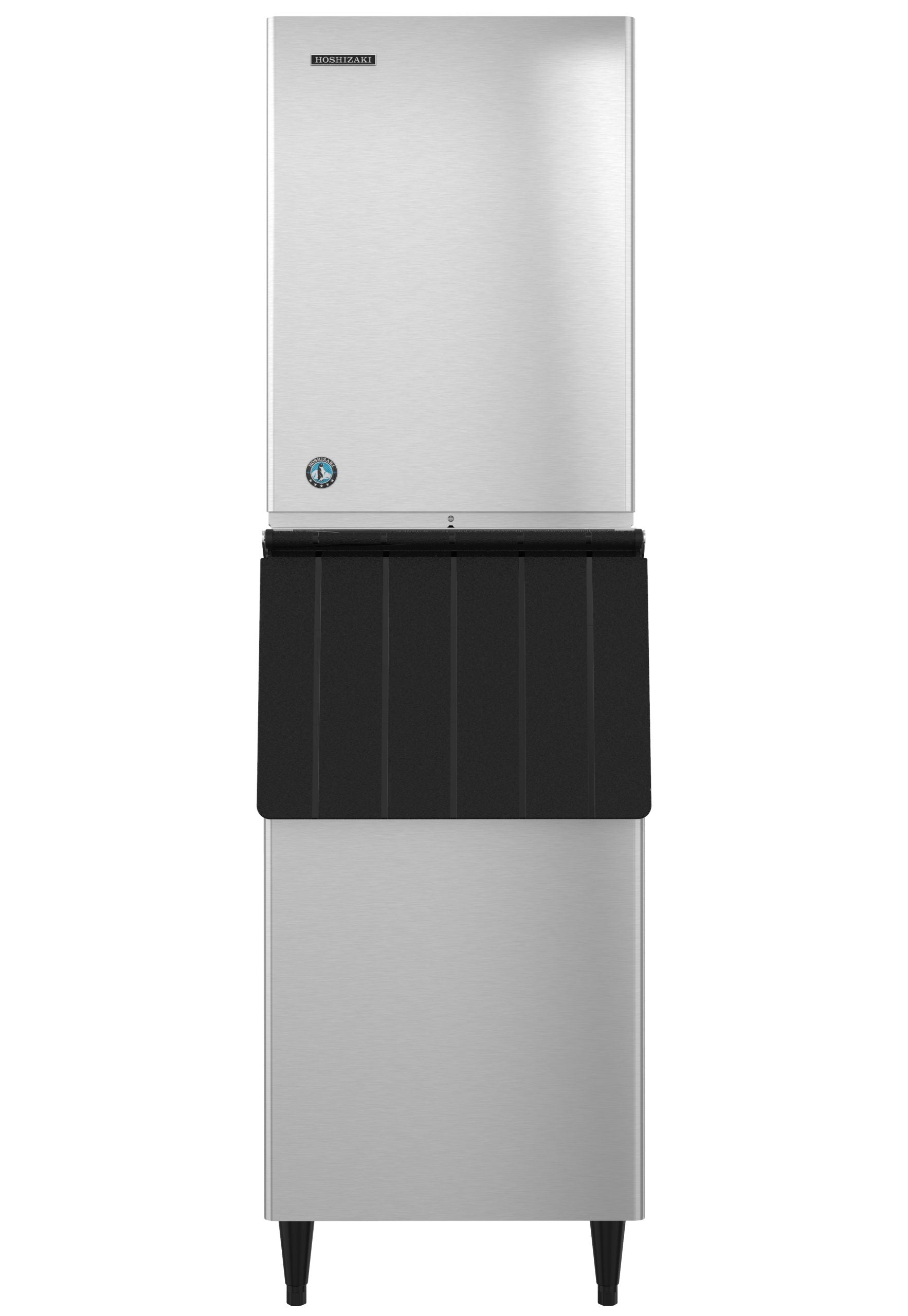

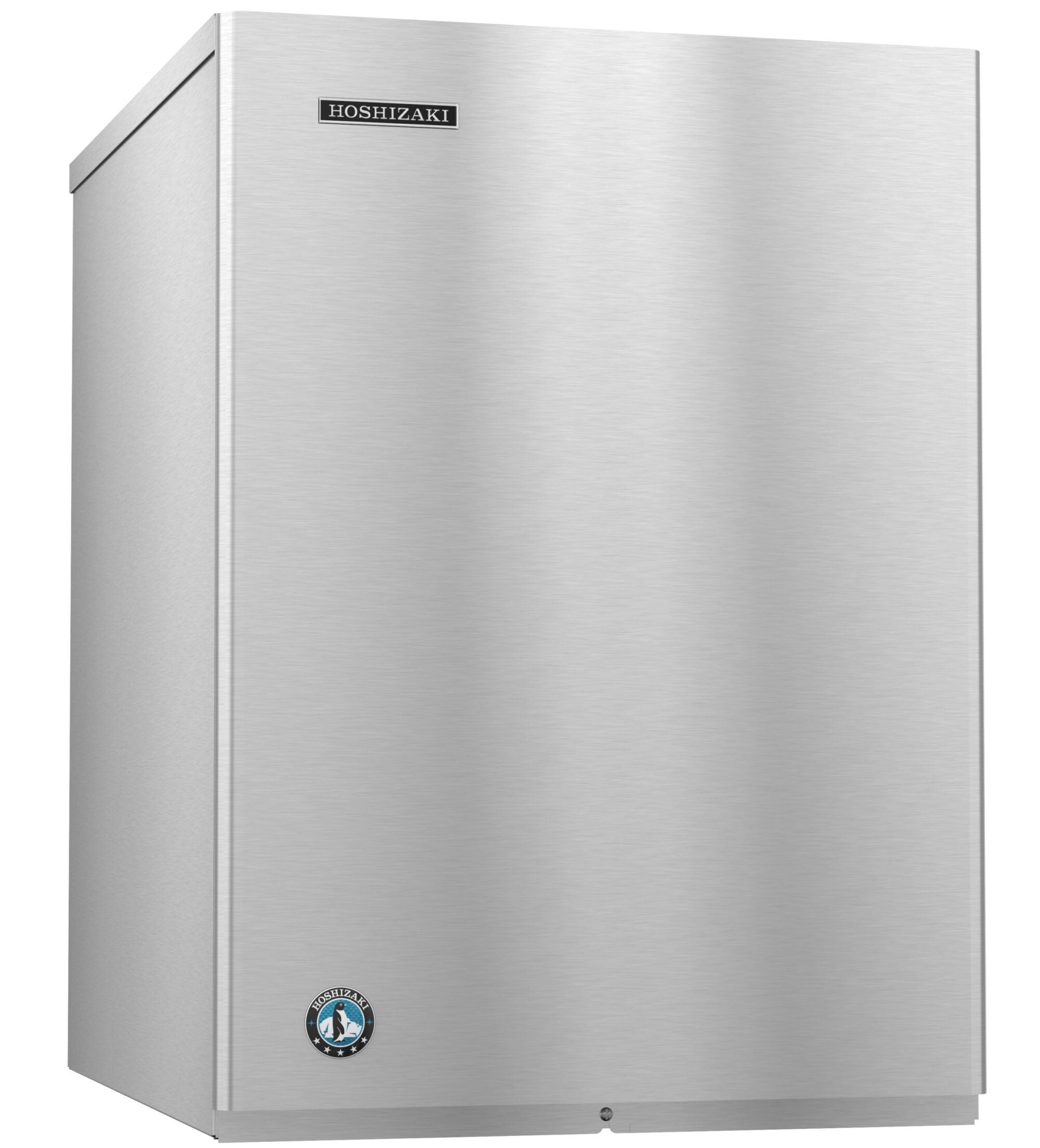

Hoshizaki KM650MRJ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
30.313"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-660MRJ
Dimensions: 22″ W x 27-3/8″ D x 30-5/16″ H
Up to 632 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Summer Sale

Clearance

SKU: KM650MRJ

Hoshizaki KM650MRJ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
30.313"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-660MRJ
Dimensions: 22″ W x 27-3/8″ D x 30-5/16″ H
Up to 632 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KM650MRJ

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 16.1, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 10200 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 4.8 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	170
Utility Consumption	5.3 kWh per 100 lbs @ 90/70, 15 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	22 in.
Depth	27.375 in.
Height	30.313 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-650MRJ is capable of producing approximately 632 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-650MRJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. KM-660MRJ.

Product Features

Discontinued – Replaced by KM-660MRJ
Dimensions: 22″ W x 27-3/8″ D x 30-5/16″ H
Up to 632 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (4 lbs. 4.8 oz / 1950 g)
Heat Rejection:10200 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
16.1 amps (20 Amp Max fuse)
5.3 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
