SKU: KM420MRJZ

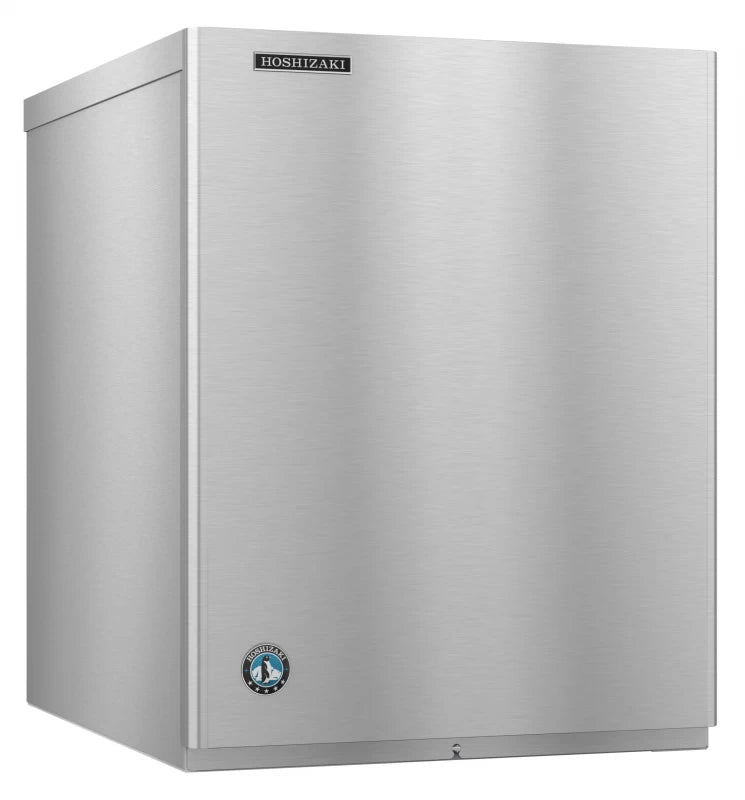

Hoshizaki KM420MRJZ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
28"
Type:
Ice Makers

About this product

Dimensions: 22″ W x 27-3/8″ D x 28″ H
Up to 521 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes

Summer Sale

Clearance

SKU: KM420MRJZ

Hoshizaki KM420MRJZ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
28"
Type:
Ice Makers

About this product

Dimensions: 22″ W x 27-3/8″ D x 28″ H
Up to 521 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KM420MRJZ

Technical Details

Product details

Utility Consumption	5 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 12.05, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 6200 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 2.7oz. /
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	175

Dimensions & weight

Weight	175 lbs.
Width	22 in.
Depth	27.375 in.
Height	28 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	215 lbs.
Total of Shipping Weight	215 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-420MRJZ is capable of producing approximately 521 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-420MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. KM-520MRJZ

Product Features

Dimensions: 22″ W x 27-3/8″ D x 28″ H
Up to 521 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
R-404A refrigerant (4 lbs. 2.7oz. / 1891 g)
12.05 amps (20 Amp Max fuse)
Ambient temperature range: 45 – 100°F
Water pressure: 10 – 113psig
Water temperature range: 45 – 90°F
Voltage range: 104 – 127V
5 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Five Years: Parts & Labor warranty on evaporator.
Discontinued – Replaced by KM-520MRJZ
EverCheck™ alert system
CycleSaver™ design
Heat Rejection:6200 BTU/hr
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
