SKU: KM2100SWJ3

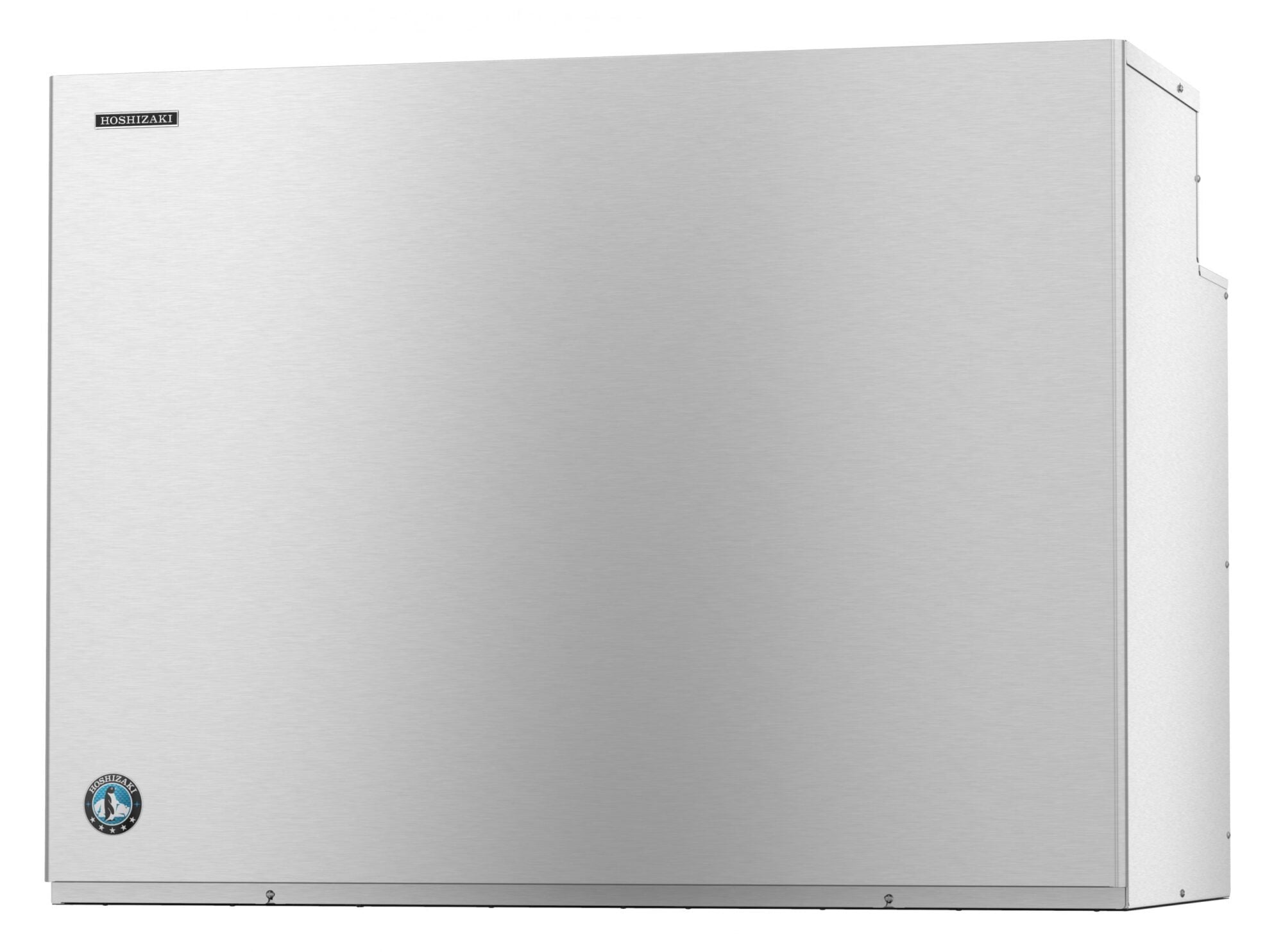

Hoshizaki KM2100SWJ3 Crescent Cuber Icemaker, Water-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-2200SWJ3
Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
Up to 1964 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production

Summer Sale

Clearance

SKU: KM2100SWJ3

Hoshizaki KM2100SWJ3 Crescent Cuber Icemaker, Water-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-2200SWJ3
Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
Up to 1964 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KM2100SWJ3

Technical Details

Product details

Electrical Specs	Three phase, 208-230v/60/3 , Amperage: 12.5, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/8″ Nominal ID Hard Pipe or Equivalent, Minimum 3/8″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	440
Utility Consumption	3.16 kWh per 100 lbs @ 90/70, 19.3 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	48 in.
Depth	27.375 in.
Height	36.438 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-2100SWJ3 is capable of producing approximately 1964 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2100SWJ3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by KM-2200SWJ3
Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
Up to 1964 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production

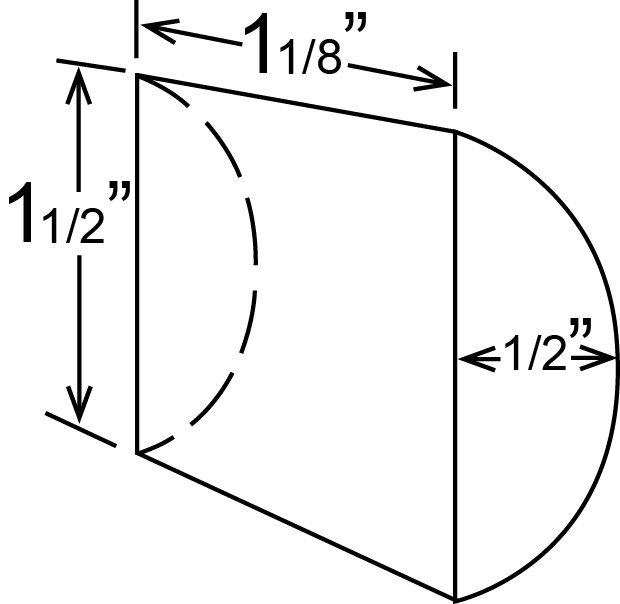

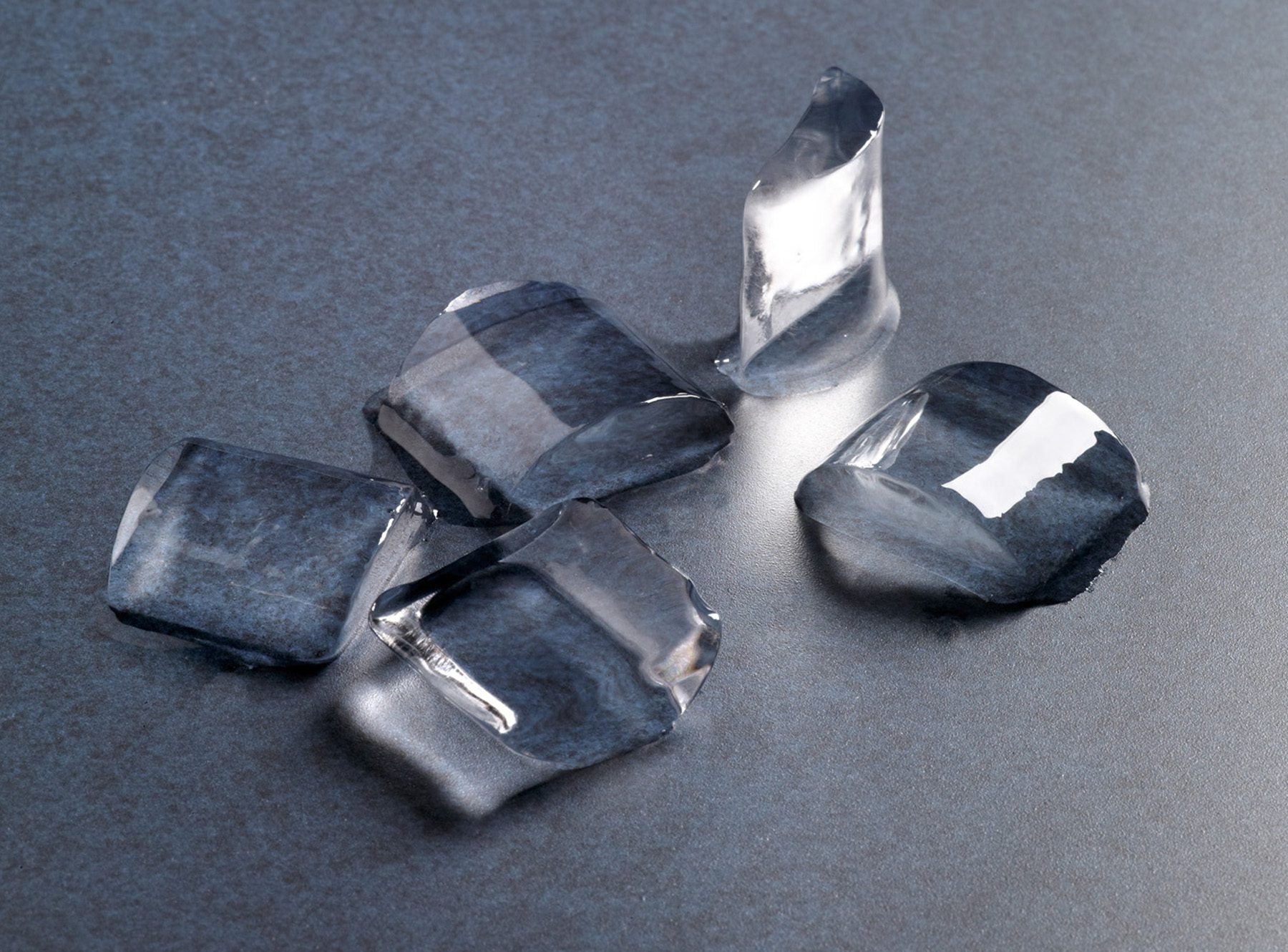

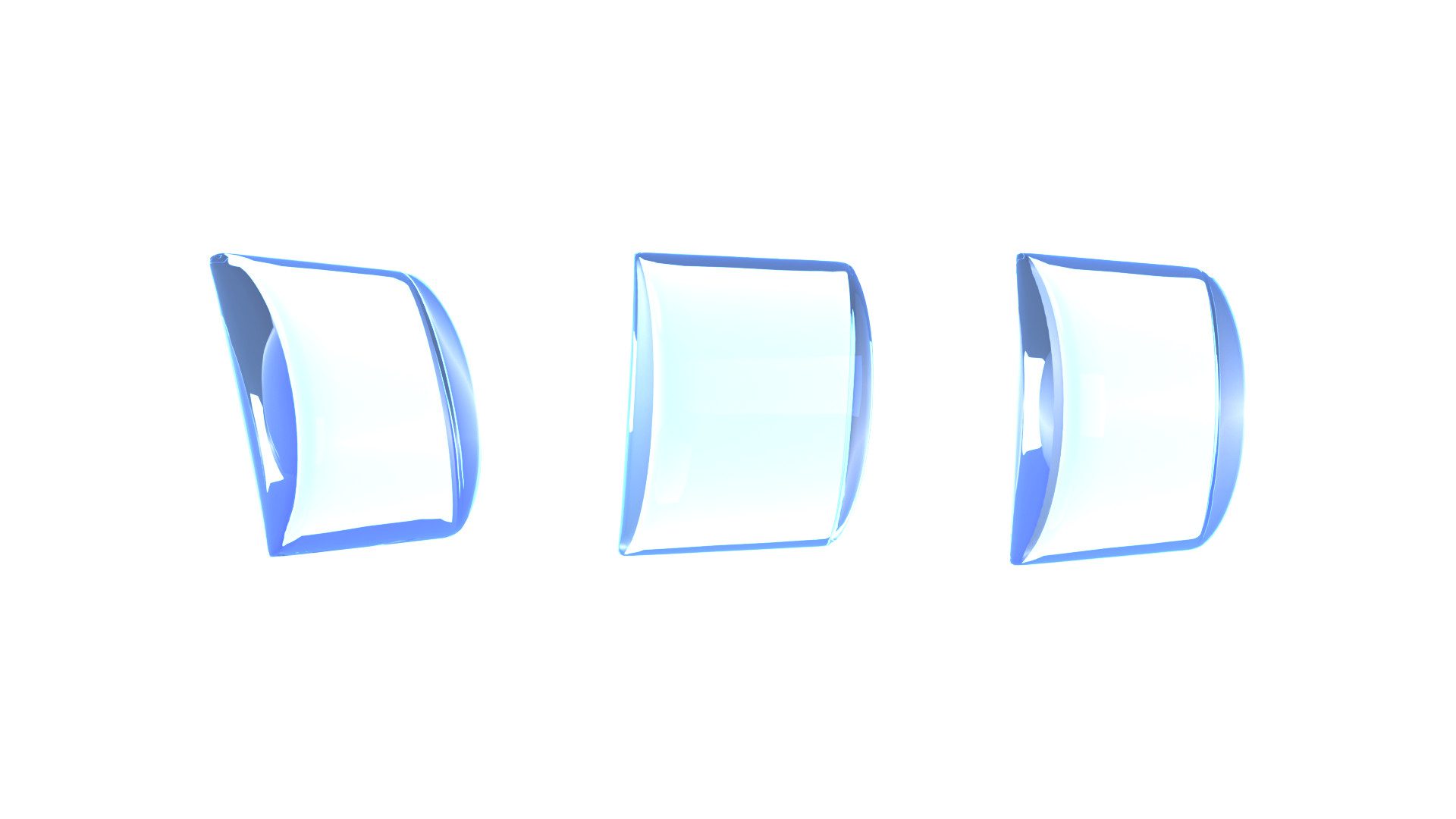

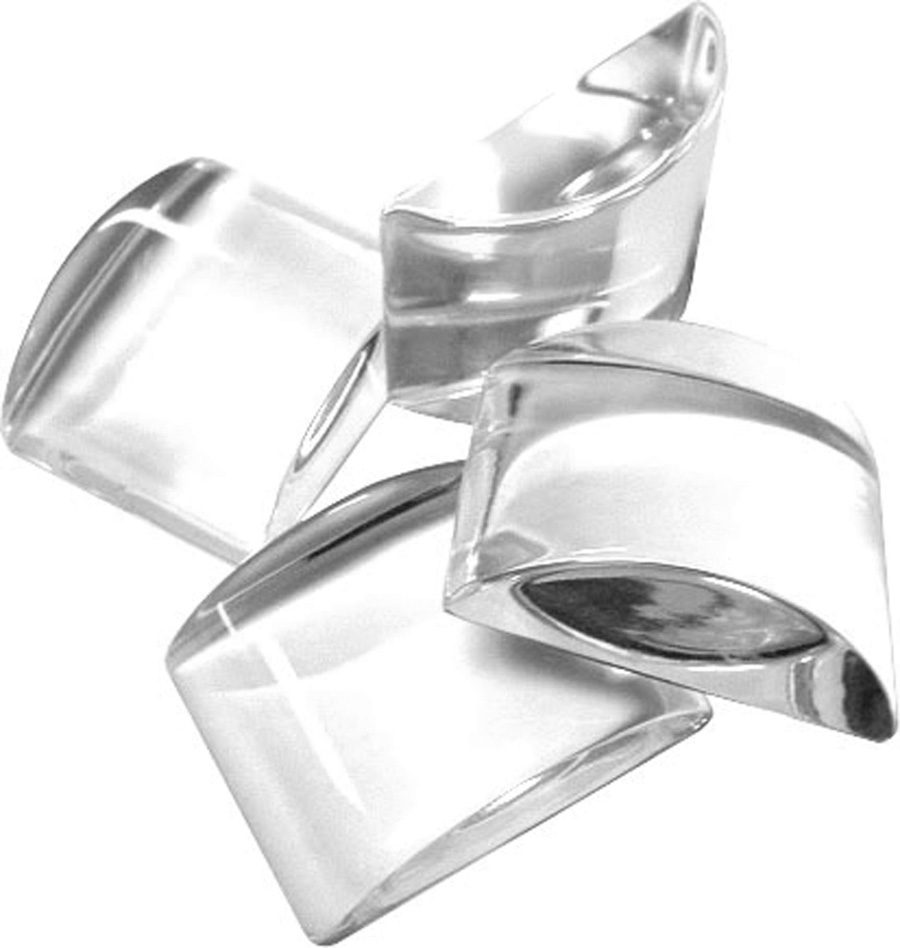

Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant ( / )
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
12.5 amps (20 Amp Max fuse)
3.16 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
