SKU: KM1400SWH3M

HOSHIZAKI KM1400SWH3M KM-1400SWH3-M Crescent Cuber Icemaker, Water-cooled

Name: HOSHIZAKI KM1400SWH3M KM-1400SWH3-M Crescent Cuber Icemaker, Water-cooled
Brand: HOSHIZAKI
SKU: KM1400SWH3M
Availability: OutOfStock

Quick Specification More details

Width:
48.0 Inch
Depth:
27.38 Inch
Height:
27.38 Inch
Type:
Ice Makers

About this product

Dimensions: 48" W x 27-3/8" D x 27-3/8" H
Up to 1343 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production

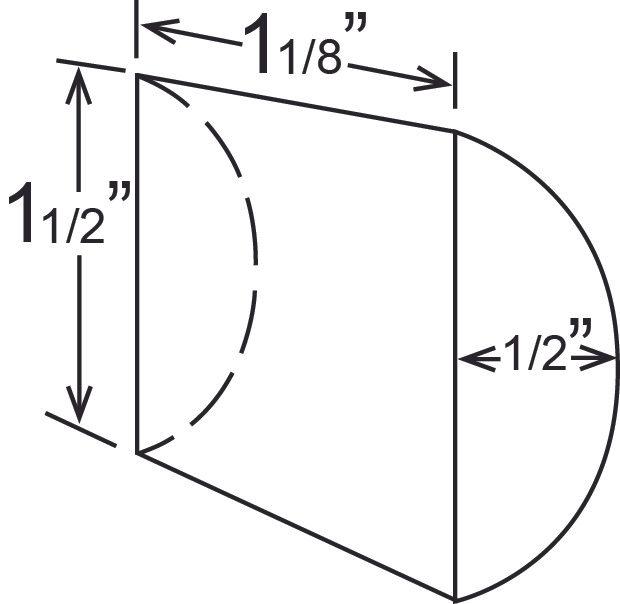

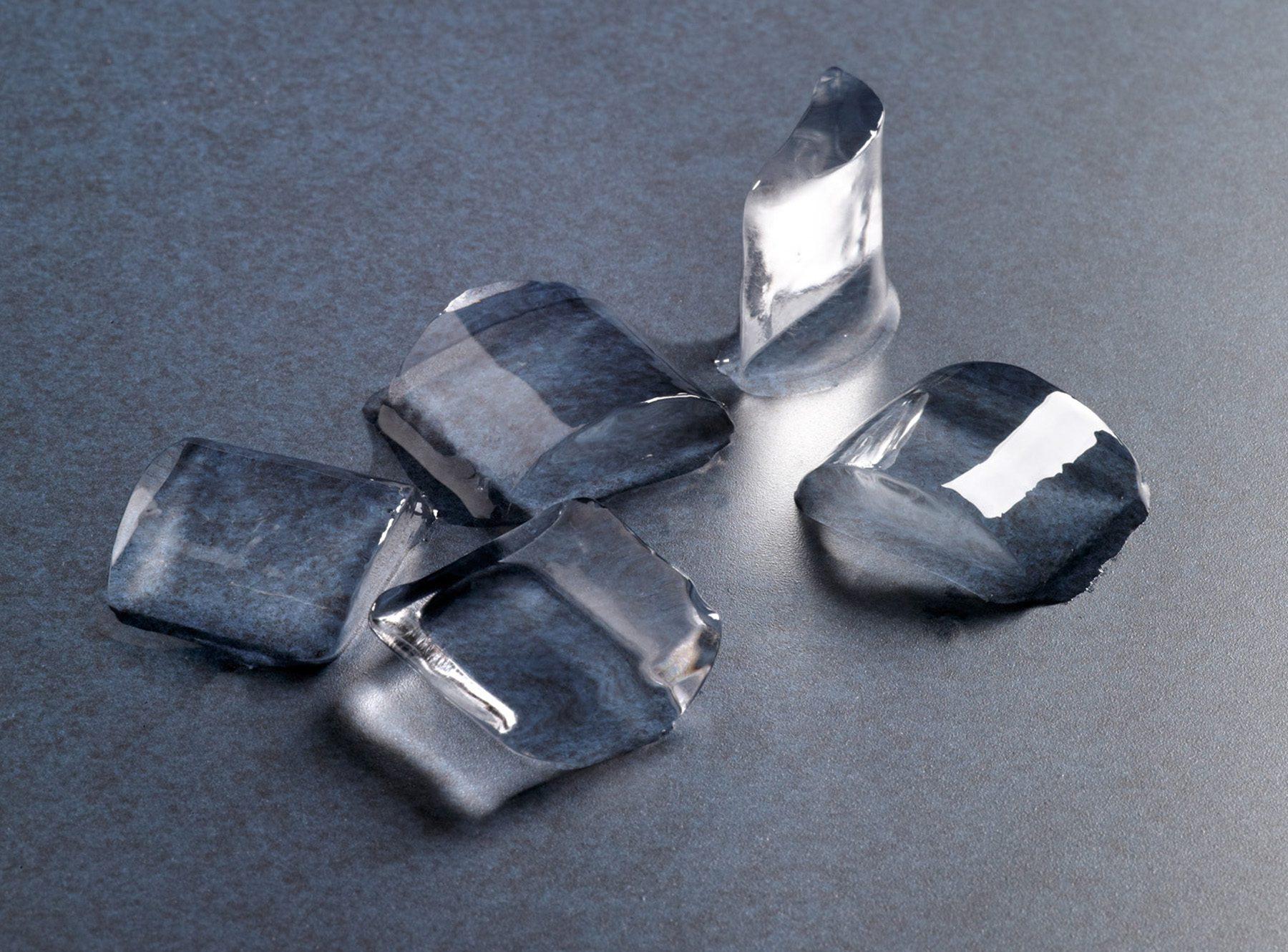

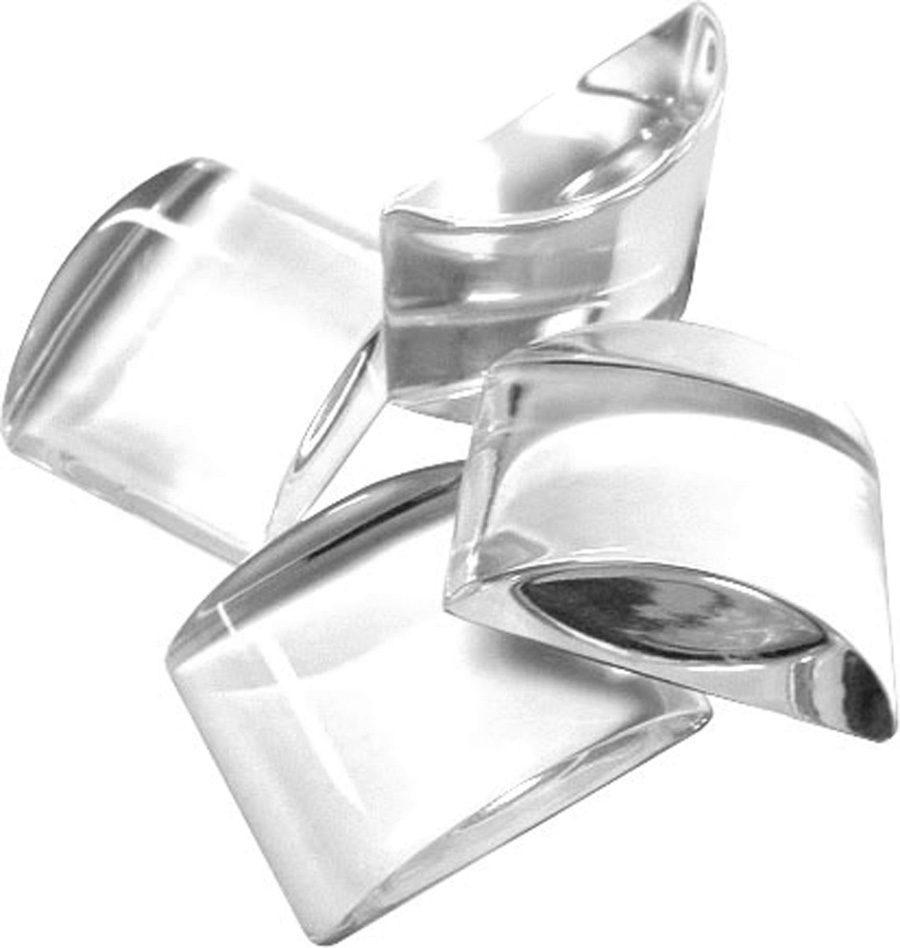

Produces crescent shaped ice cubes

SKU: KM1400SWH3M

HOSHIZAKI KM1400SWH3M KM-1400SWH3-M Crescent Cuber Icemaker, Water-cooled

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48.0 Inch
Depth:
27.38 Inch
Height:
27.38 Inch
Type:
Ice Makers

About this product

Dimensions: 48" W x 27-3/8" D x 27-3/8" H
Up to 1343 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

Product Details for HOSHIZAKI KM1400SWH3M

Technical Details

Features

Dimensions: 48" W x 27-3/8" D x 27-3/8" H	Yes
Up to 1343 lbs of ice produced per 24 hours	Yes
Stack 2 units for 2x the ice production	Yes
Produces crescent shaped ice cubes	Yes
Durable stainless steel exterior	Yes

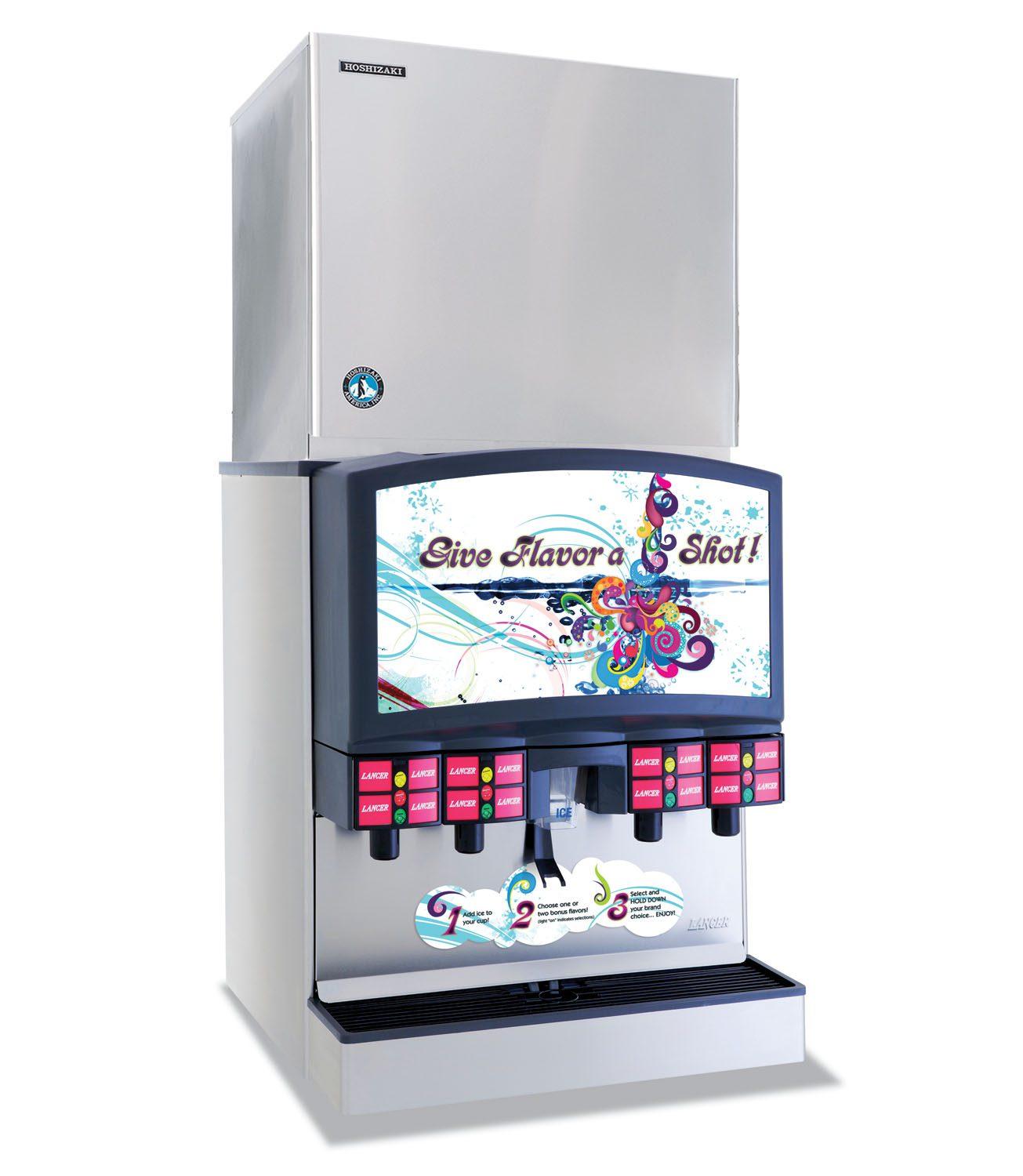

Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650	Yes
EverCheck(TM) alert system	Yes
CycleSaver(TM) design	Yes
R-404A refrigerant ( / )	Yes
Heat Rejection: BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 187 - 253V	Yes
11.5 amps (20 Amp Max fuse)	Yes
4.7 kwh/100 lbs.@ 90/70	Yes
Three phase, 208-230v/60/3	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Three Years: Parts & Labor warranty on entire machine.	Yes
Five Years: Parts & Labor warranty on evaporator.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	No
Smart Device	No

Features

Dimensions: 48" W x 27-3/8" D x 27-3/8" H
Up to 1343 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck(TM) alert system
CycleSaver(TM) design
R-404A refrigerant ( / )
Heat Rejection: BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 187 - 253V
11.5 amps (20 Amp Max fuse)
4.7 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Description

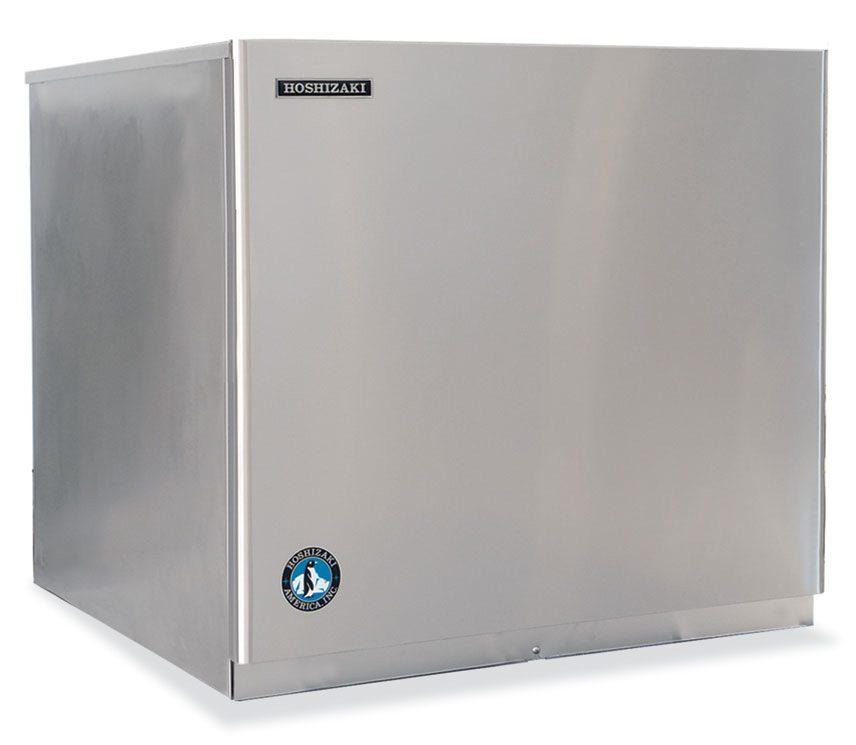

The KM-1400SWH3-M is capable of producing approximately 1343 lbs of crescent cubed ice. Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, Marine, 3 Phase ice maker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-1400SWH3-M requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
