SKU: KM1340MRJ

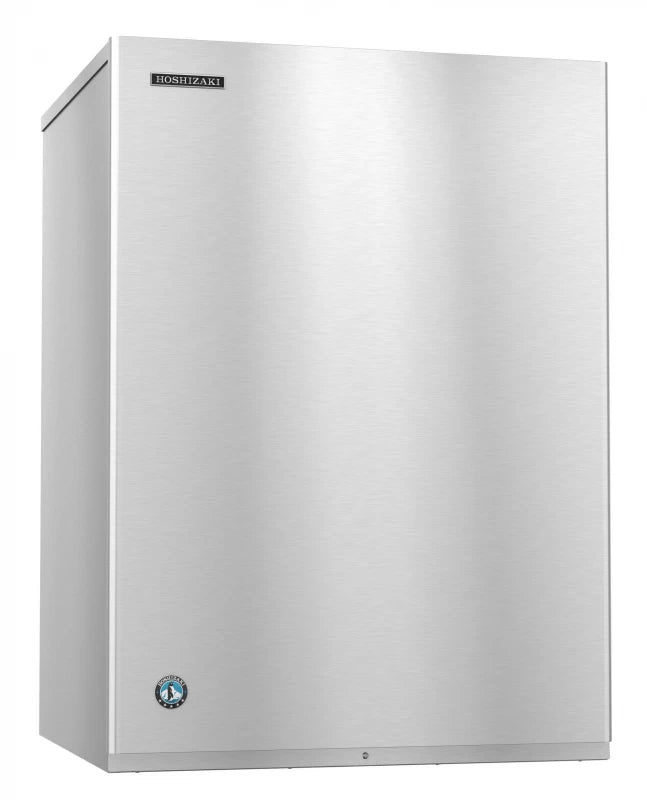

Hoshizaki KM1340MRJ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
41.5"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
Up to 1371 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior

Summer Sale

Clearance

SKU: KM1340MRJ

Hoshizaki KM1340MRJ Crescent Cuber Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
41.5"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
Up to 1371 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KM1340MRJ

Technical Details

Product details

Utility Consumption	4.54 kWh per 100 lbs @ 90/70, 17.5 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 208-230v/60/1, 6 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required, Amperage: 14, Max F
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 19900 BTU/hr, Refrigerant Charge: R-404A, (6 lbs. 9.8 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	295

Dimensions & weight

Weight	295 lbs.
Width	30 in.
Depth	27.375 in.
Height	41.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	335 lbs.
Total of Shipping Weight	335 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-1340MRJ is capable of producing approximately 1371 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided stainless steel evaporators create the unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1340MRJ requires a Single phase, 208-230v/60/1, 6 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. KM-1340MRJZ3.

Product Features

Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
Up to 1371 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior

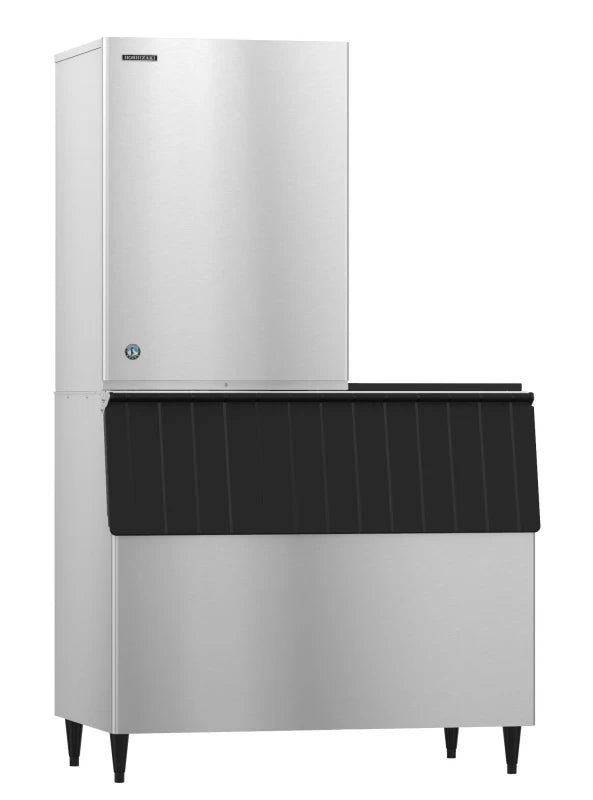

Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Produces crescent shaped ice cubes
R-404A refrigerant (6 lbs. 9.8 oz. / 3000 g)
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
14 amps (20 Amp Max fuse)
4.54 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 6 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts & Labor warranty on evaporator.
Discontinued – Replaced by KM-1340MRJZ
EverCheck™ alert system
CycleSaver™ design
Heat Rejection:19900 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
