SKU: KM1100MWH

Hoshizaki KM1100MWH Crescent Cuber Icemaker, Water-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
32.5"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-1100MWJ
Dimensions: 30″ W x 27-3/8″ D x 32-1/2″ H
Up to 1111 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Summer Sale

Clearance

SKU: KM1100MWH

Hoshizaki KM1100MWH Crescent Cuber Icemaker, Water-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
32.5"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-1100MWJ
Dimensions: 30″ W x 27-3/8″ D x 32-1/2″ H
Up to 1111 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KM1100MWH

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1 , Amperage: 9.6, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 17900 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/8″ Nominal ID Hard Pipe or Equivalent, Minimum 3/8″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	285
Utility Consumption	4.66 kWh per 100 lbs @ 90/70, 16.9 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	27.375 in.
Height	32.5 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

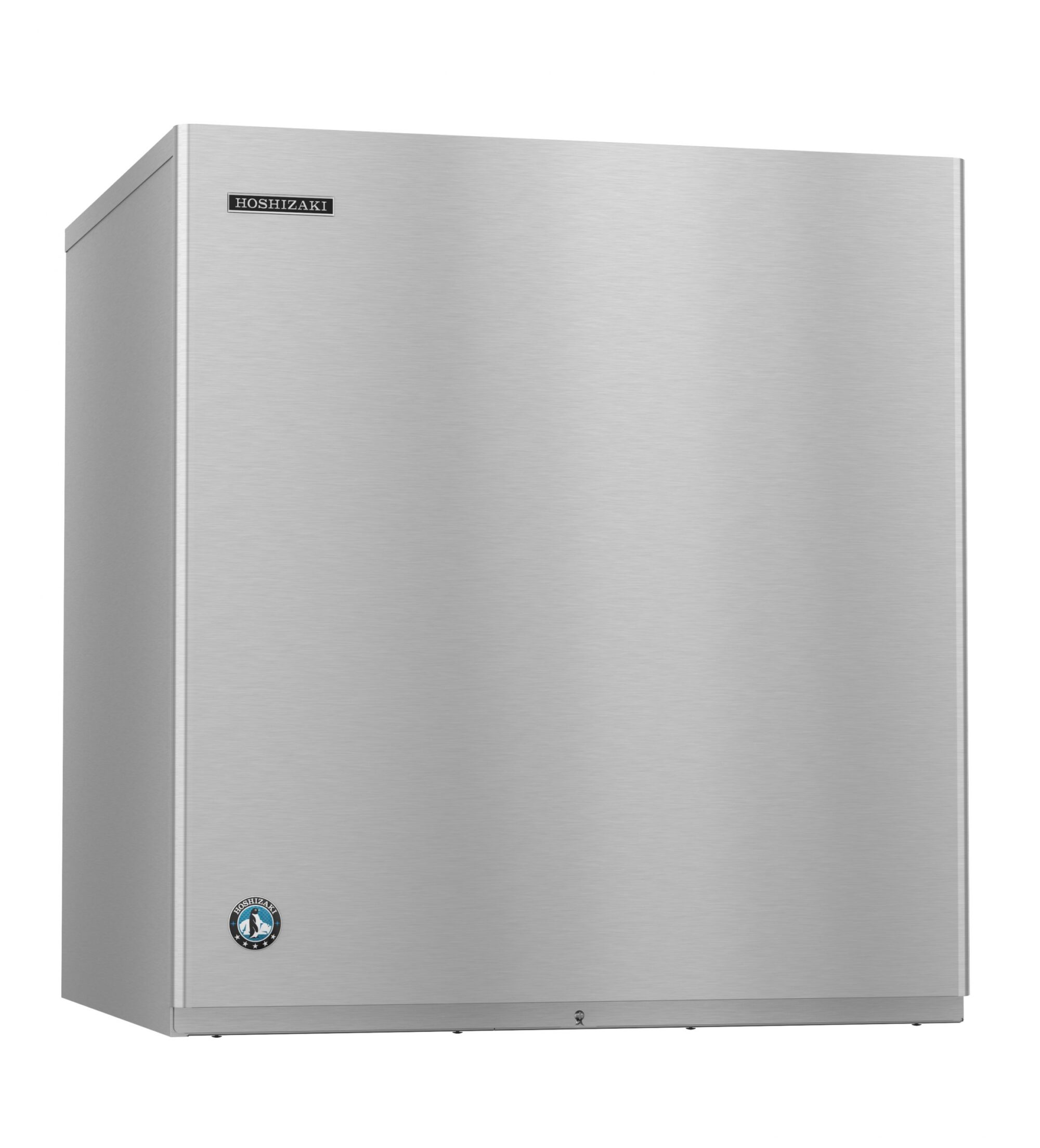

The KM-1100MWH is capable of producing approximately 1111 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1100MWH requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by KM-1100MWJ
Dimensions: 30″ W x 27-3/8″ D x 32-1/2″ H
Up to 1111 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

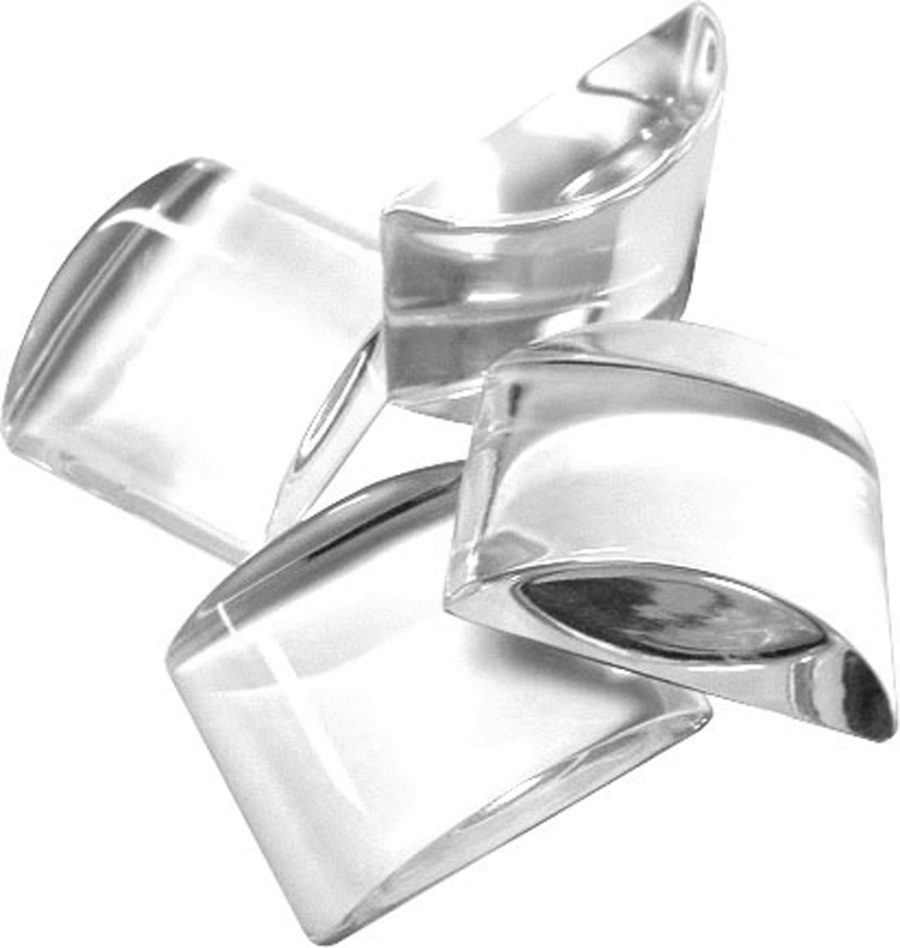

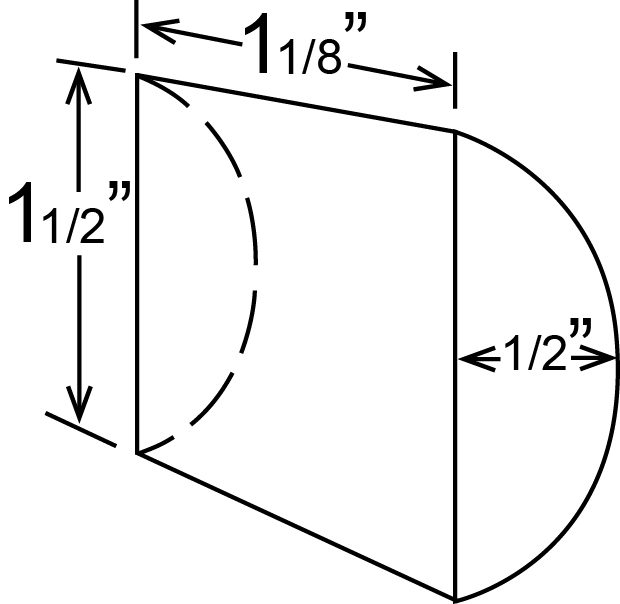

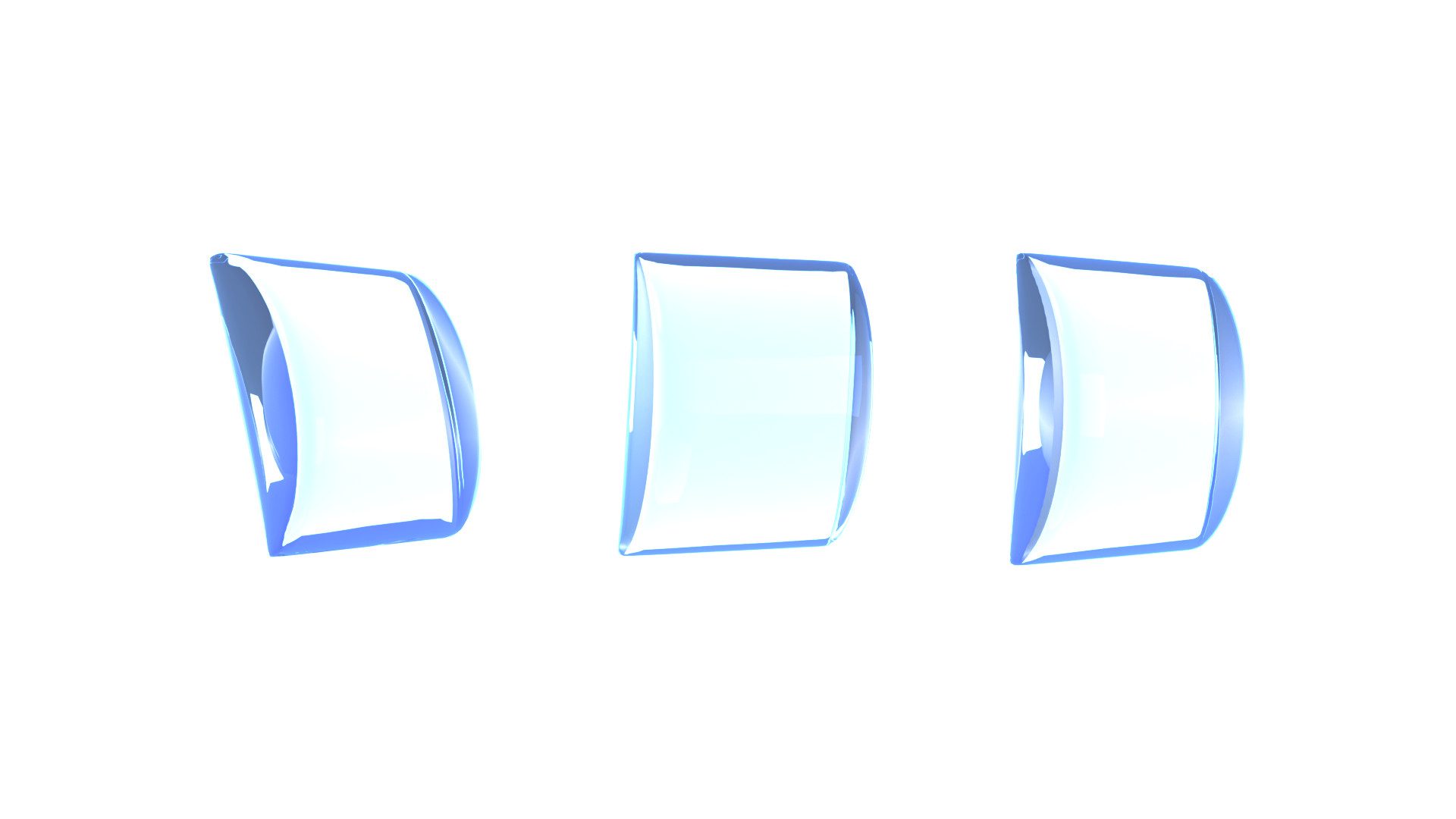

Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (1 lbs. 10.5 oz. / 750 g)
Heat Rejection:17900 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
9.6 amps (20 Amp Max fuse)
4.66 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
