SKU: KM101BAH

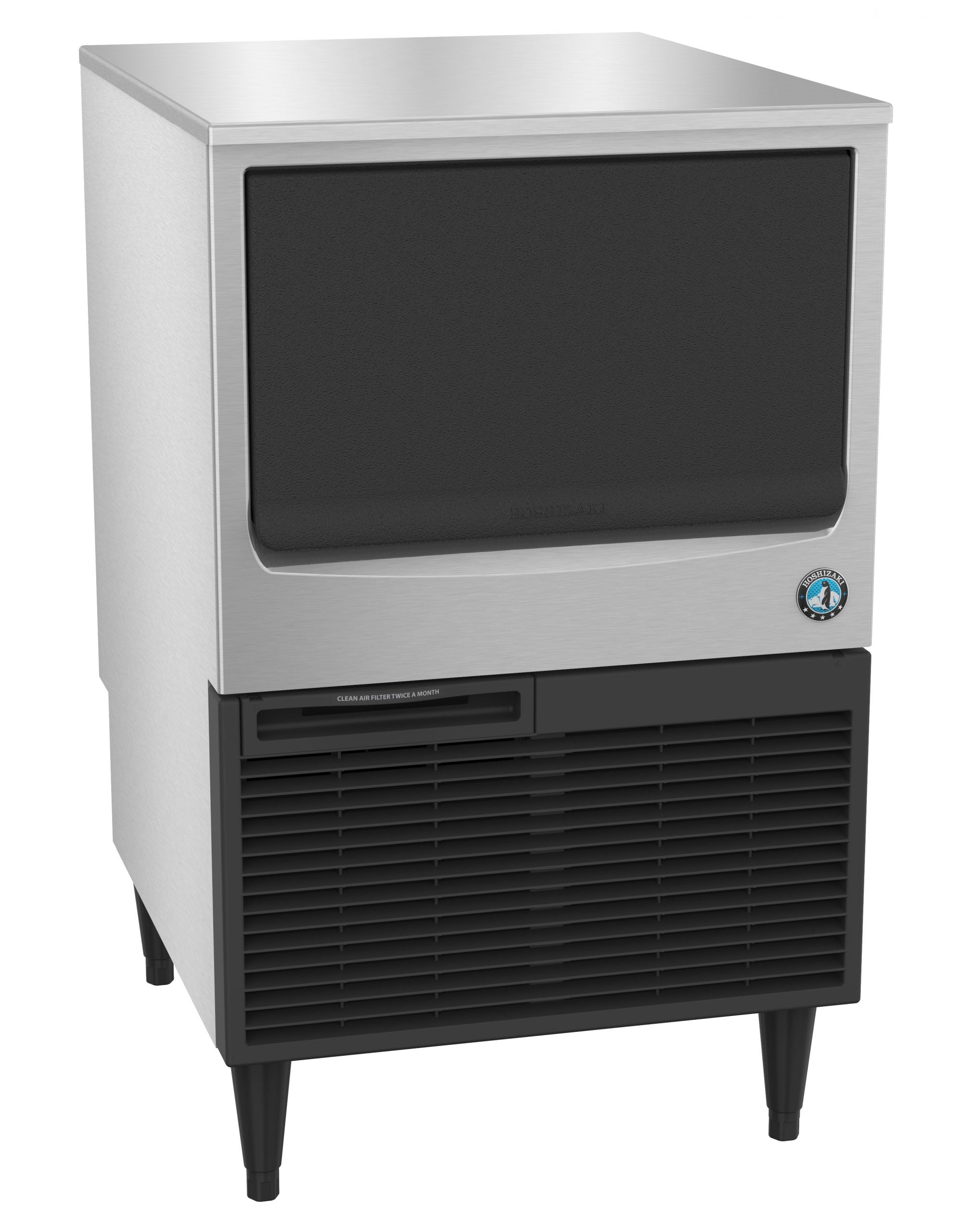

Hoshizaki KM101BAH Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin Black with Stainless Steel

Quick Specification More details

Width:
23.75"
Depth:
24.25"
Height:
39"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-115BAJ
Dimensions: 23-3/4″ W x 24-1/4″ D x 39″ H
Up to 115 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)

Summer Sale

Clearance

SKU: KM101BAH

Hoshizaki KM101BAH Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin Black with Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24.25"
Height:
39"
Type:
Ice Makers

About this product

Discontinued – Replaced by KM-115BAJ
Dimensions: 23-3/4″ W x 24-1/4″ D x 39″ H
Up to 115 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI KM101BAH

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1 6.5 ft cord with NEMA 5-15 Plug, Amperage: 5.2, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1350 BTU/hr, Refrigerant Charge: R-134a, (7.8 oz. / 220 g
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	143
Utility Consumption	9.4 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	23.75 in.
Depth	24.25 in.
Height	39 in.

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-101BAH is capable of producing approximately 115 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-101BAH requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
