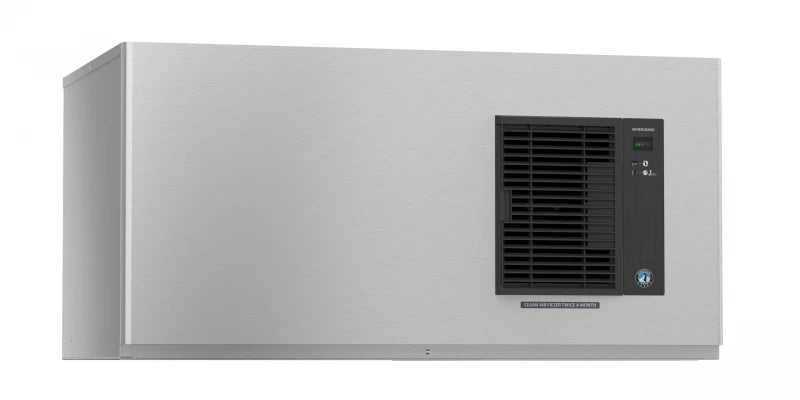

Hoshizaki IM500SAB Square Cuber Icemaker, Air-cooled Stainless Steel
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Product Details for HOSHIZAKI IM500SAB
Technical Details
Product details
| Utility Consumption | 5.8 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70 |
| Electrical Specs | Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included, Amperage: 11.5, Max Fuse/HACR Breaker: 20 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 4500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz. |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 230 |
Dimensions & weight
| Weight | 230 lbs. |
| Width | 44 in. |
| Depth | 27.625 in. |
| Height | 21.75 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 270 lbs. |
| Total of Shipping Weight | 270 lbs. |
| Source | Calculation |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Condenser) | 5 Years |
Description
The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Product Features
- Up to 489 lbs of ice produced per 24 hours

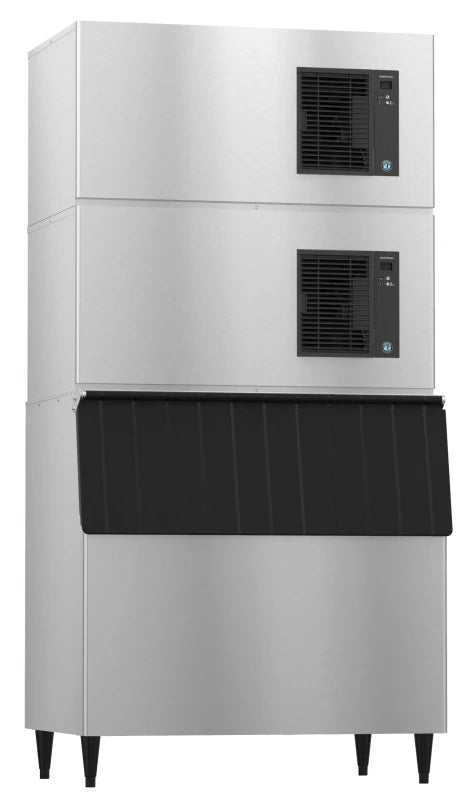

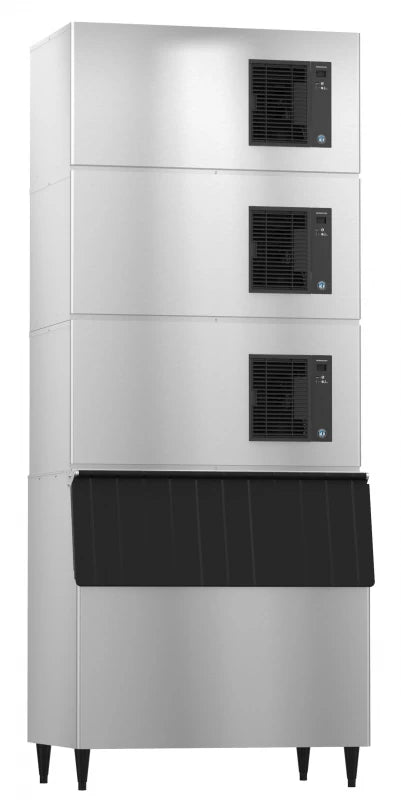

- Stack 3 units for 3x the ice production
- Durable stainless steel exterior

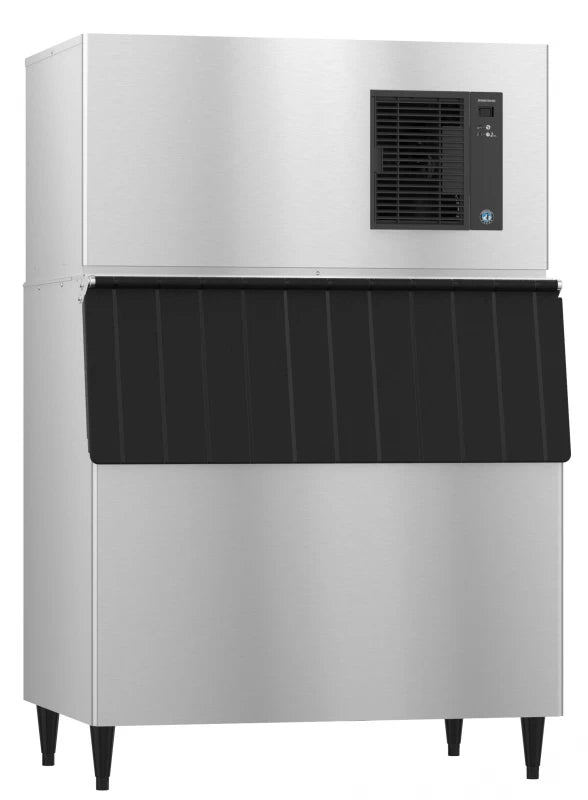

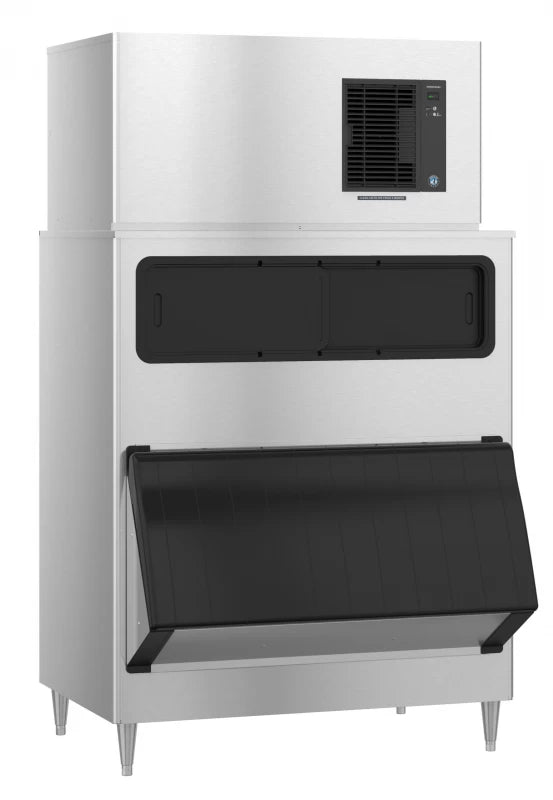

- Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650

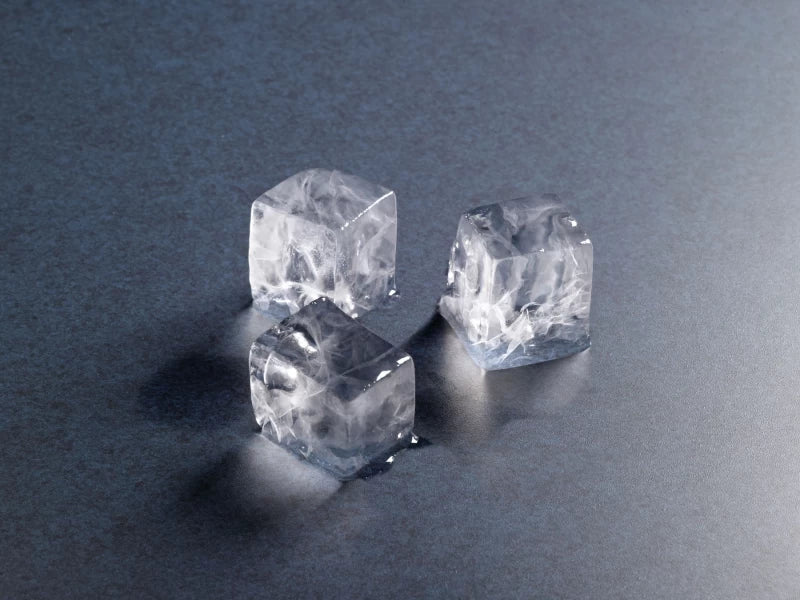

- Produces individual square cubes
- Clean individual square ice cubes
- Panels easily removed and all components accessible for service
- R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
- 5.8 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- 11.5 amps (20 Amp Max fuse)
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
- EverCheck™ digital control system with LED display
- Heat Rejection:4500 BTU/hr
- Three Years: Parts & Labor warranty on entire machine.
