SKU: IM200BAC

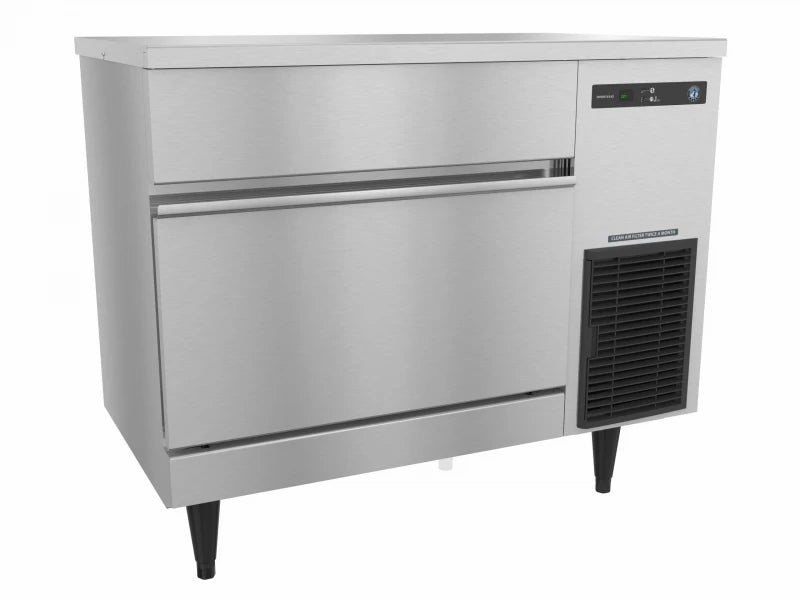

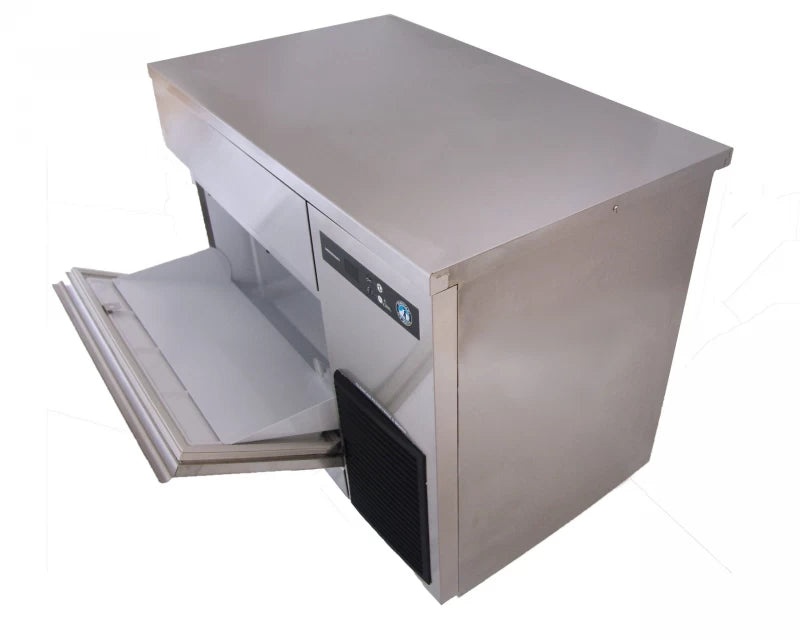

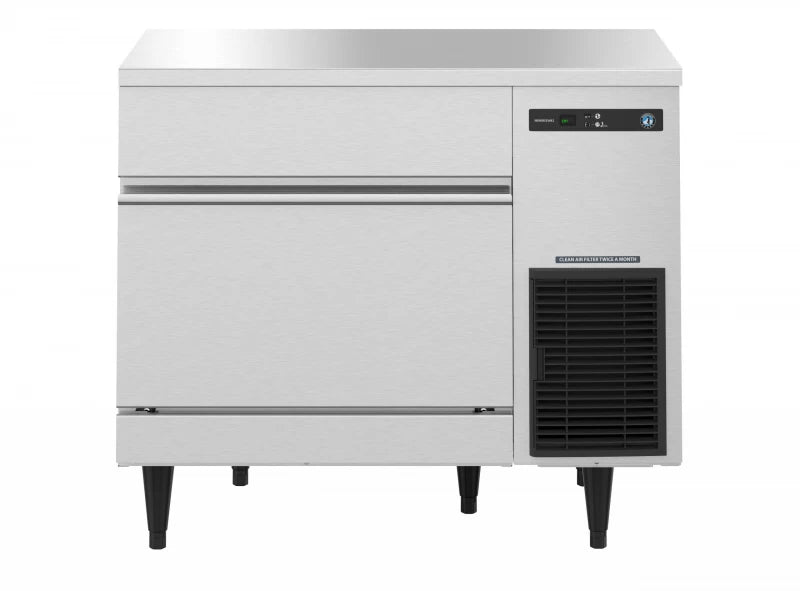

Hoshizaki IM200BAC Square Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Square Cuber Icemaker, Air-cooled, Built in Storage Bin

Quick Specification More details

  • Width:
    39.5"
  • Depth:
    23.625"
  • Height:
    33.5"
  • Type:
    Ice Makers

About this product

  • Up to 75 lbs of built-in storage capacity (2.5ft3)
  • Produces individual square cubes
  • Up to 188 lbs of ice produced per 24 hours
  • Durable stainless steel exterior
Summer Sale
Clearance

SKU: IM200BAC

Hoshizaki IM200BAC Square Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    39.5"
  • Depth:
    23.625"
  • Height:
    33.5"
  • Type:
    Ice Makers

About this product

  • Up to 75 lbs of built-in storage capacity (2.5ft3)
  • Produces individual square cubes
  • Up to 188 lbs of ice produced per 24 hours
  • Durable stainless steel exterior

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for HOSHIZAKI IM200BAC

Technical Details

Product details
Utility Consumption 8.4 kWh per 100 lbs @ 90/70, 22.5 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs Single phase, 115v/60/1 5′ 7/8″ ft cord with NEMA 5-15 Plug, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3420 BTU/hr, Refrigerant Charge: R-404A, (10.6 oz. / 301
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight 212

Dimensions & weight
Weight 45.5 lbs.
Width 39.5 in.
Depth 23.625 in.
Height 33.5 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Weight 85.5 lbs.
Total of Shipping Weight 85.5 lbs.
Source Calculation

Warranty
Parts 3 Years
Labor 3 Years
Parts (Condenser) 5 Years

Description

The IM-200BAC is capable of producing approximately 188 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 75 lbs of built-in storage capacity (2.5ft3)*. The IM-200BAC is a Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug and uses R-404A refrigerant (10.6 oz. / 301 g). Min Clearance: 0″ on top, 2″ on rear & left side, 6″ on right side. Or 2″ at top and rear, 5/8″ on left side, 6″ on right side.. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.


Product Features

  • Up to 75 lbs of built-in storage capacity (2.5ft3)
  • Produces individual square cubes
  • Up to 188 lbs of ice produced per 24 hours
  • Durable stainless steel exterior
  • Front in, front out airflow
  • Each cube is made individually by a dedicated jet spray
  • R-404A refrigerant (10.6 oz. / 301 g)
  • 7.6 amps (15 Amp Max fuse)
  • 8.4 kwh/100 lbs.@ 90/70
  • Clean ice and easy maintenance lead to longer unit life span
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
  • Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
  • EverCheck™ alert system
  • Heat Rejection:3420 BTU/hr
  • Three Years: Parts & Labor warranty on entire machine.
  • Discontinued – Replaced by IM-200BAK
