SKU: IM200BAA

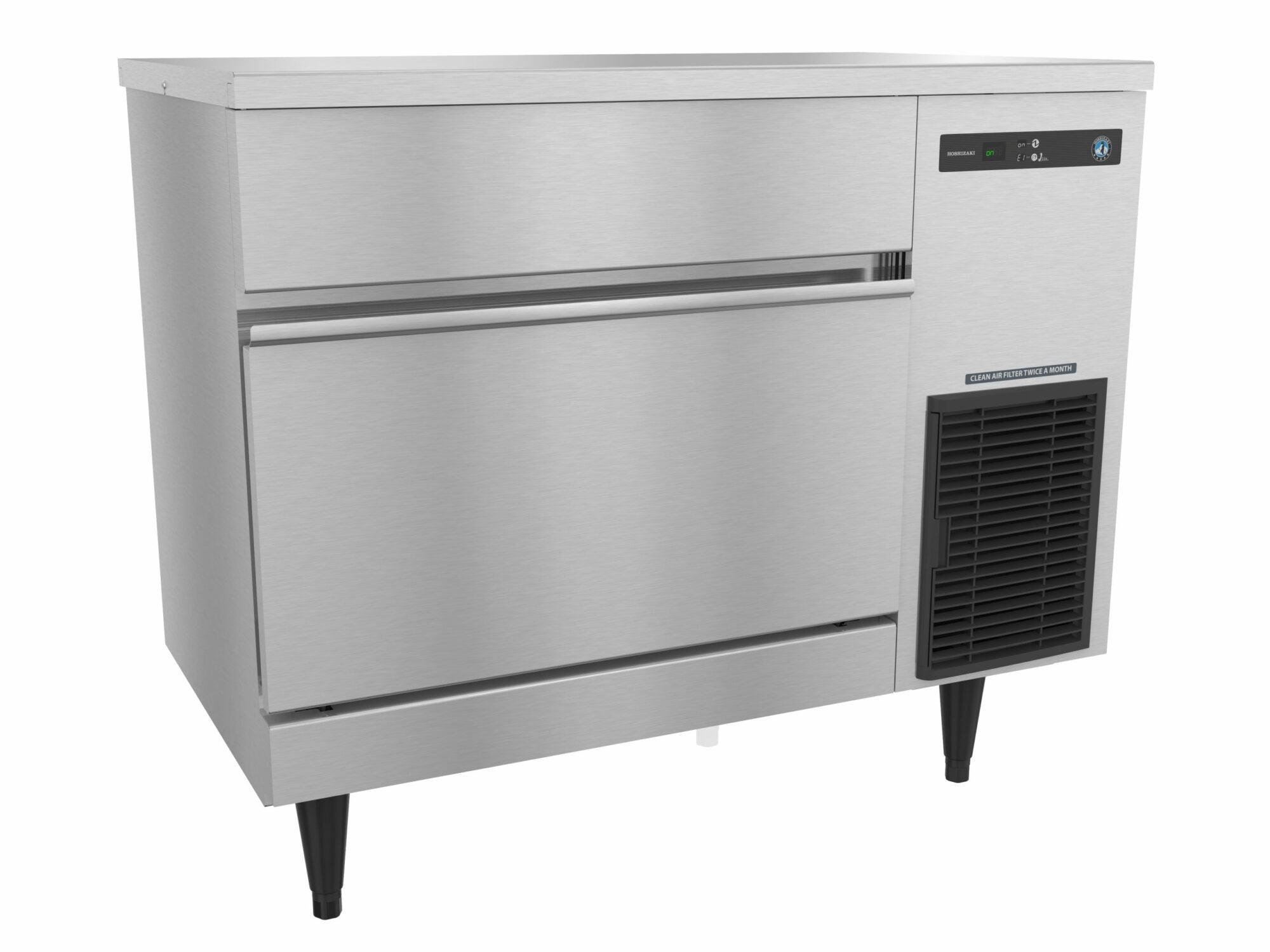

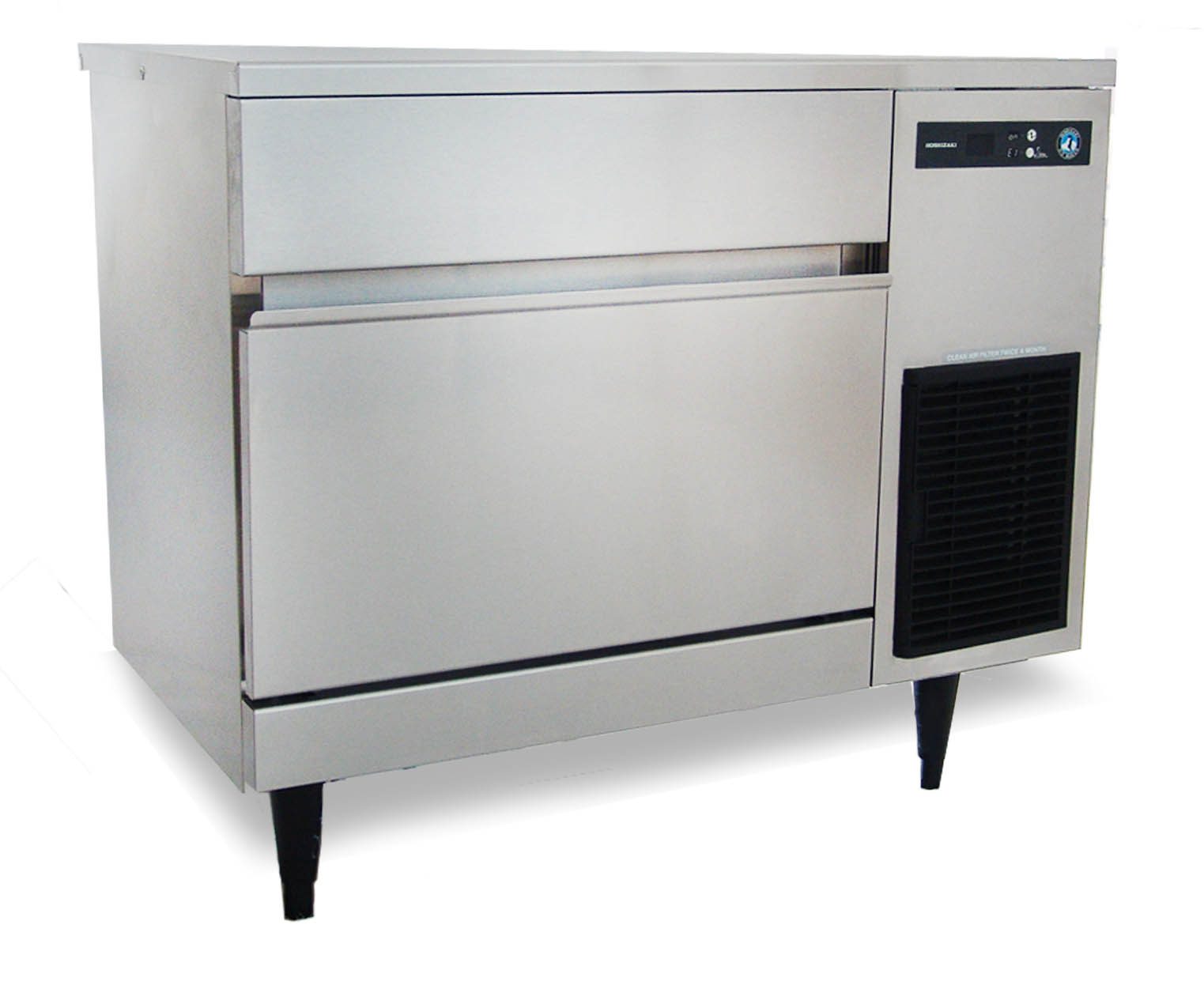

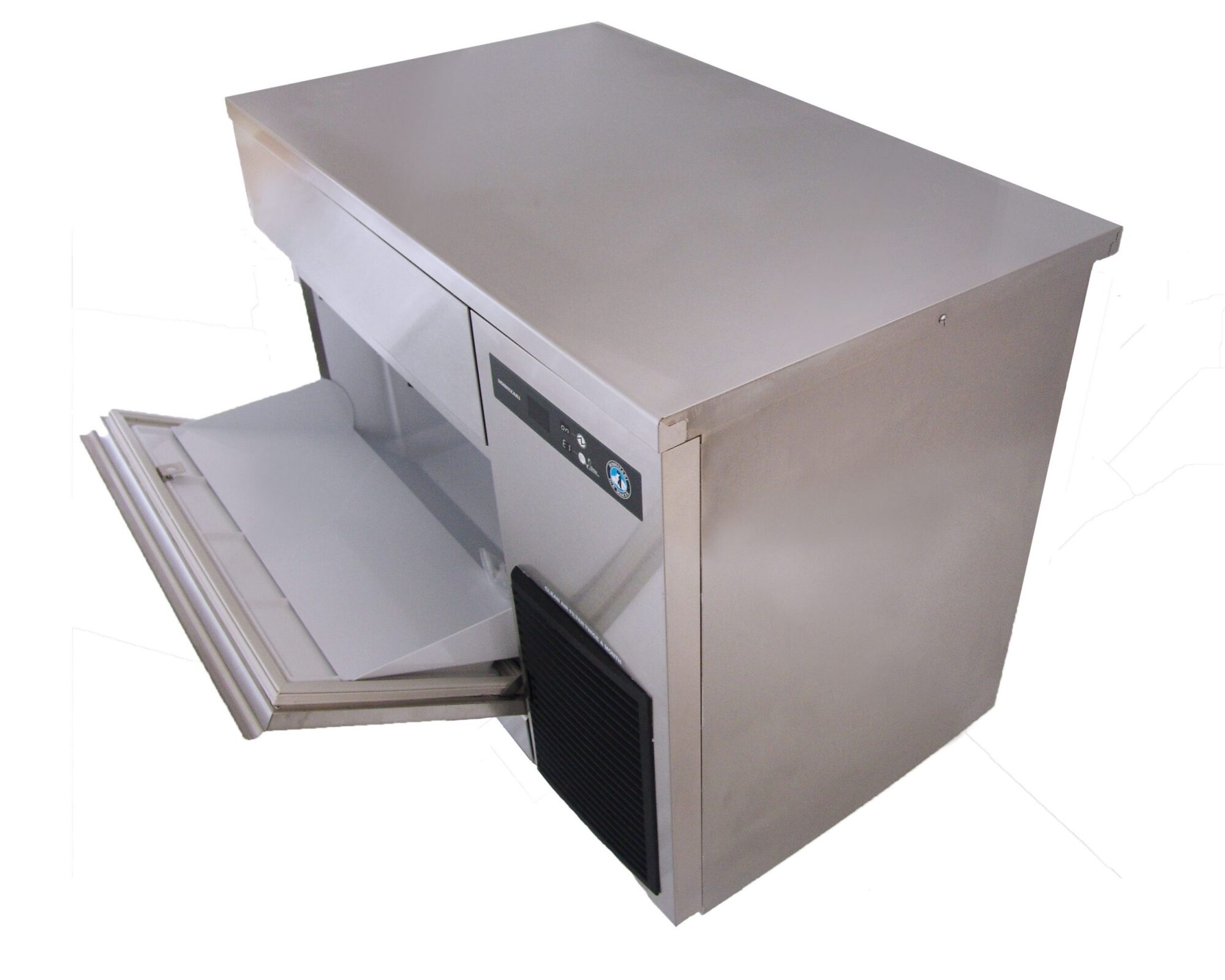

Hoshizaki IM200BAA Square Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Quick Specification More details

Width:
39.5"
Depth:
23.625"
Height:
33.5"
Type:
Ice Makers

About this product

Discontinued – Replaced by IM-200BAB
Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
Up to 200 lbs of ice produced per 24 hours
Up to 50 lbs of built-in storage capacity (2.5ft3)

Summer Sale

Clearance

SKU: IM200BAA

Hoshizaki IM200BAA Square Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
39.5"
Depth:
23.625"
Height:
33.5"
Type:
Ice Makers

About this product

Discontinued – Replaced by IM-200BAB
Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
Up to 200 lbs of ice produced per 24 hours
Up to 50 lbs of built-in storage capacity (2.5ft3)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI IM200BAA

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1 5′ 7/8″ ft cord with NEMA 5-15 Plug, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3500 BTU/hr, Refrigerant Charge: R-134a, (10.2 oz. / 290
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	203
Utility Consumption	8.3 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	39.5 in.
Depth	23.625 in.
Height	33.5 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

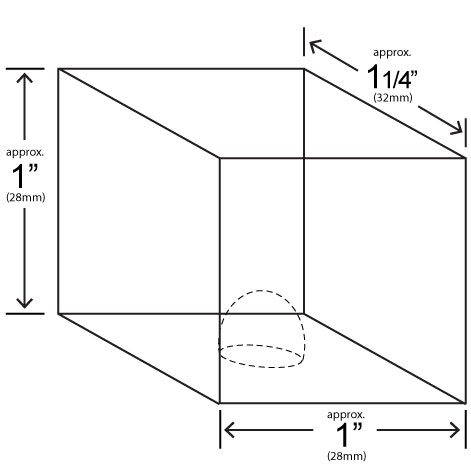

The IM-200BAA is capable of producing approximately 200 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Self Contained, Built in Storage Bin icemaker features Up to 50 lbs of built-in storage capacity (2.5ft3)*. The IM-200BAA requires a Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug electrical connection and a 5′ power cord with NEMA 5-15P plug. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
