SKU: HR24B

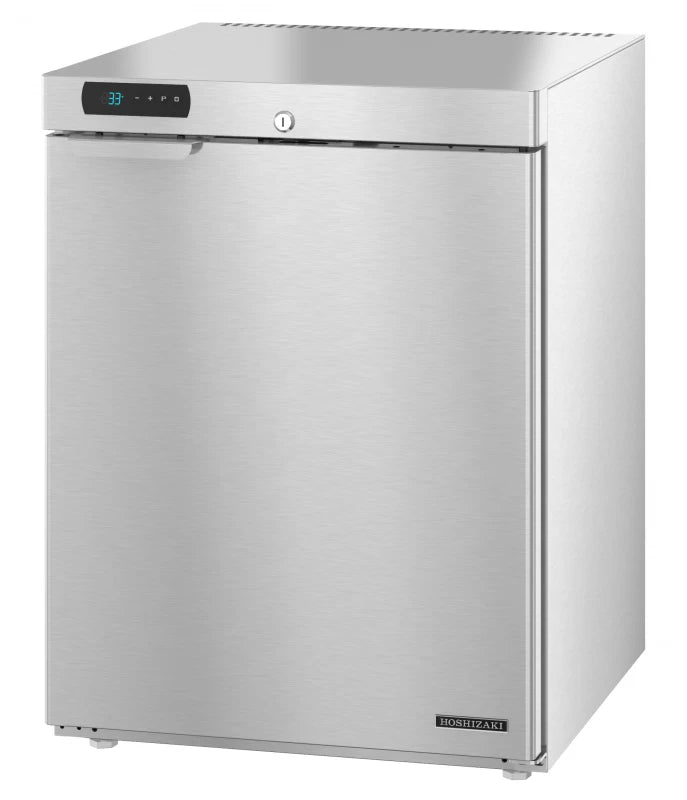

Hoshizaki HR24B Refrigerator, Single Section Undercounter Stainless Steel

Quick Specification More details

Width:
23.4"
Depth:
24.5"
Height:
31.5"
Type:
Beverage Centers

About this product

Net capacity of 3.7 cubic feet
Dimensions: 23.4″ W x 24.5″ D x 31.5″ H
UL approved for outdoor use
ADA compliant height (Under 32″ tall)

Summer Sale

Clearance

SKU: HR24B

Hoshizaki HR24B Refrigerator, Single Section Undercounter Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.4"
Depth:
24.5"
Height:
31.5"
Type:
Beverage Centers

About this product

Net capacity of 3.7 cubic feet
Dimensions: 23.4″ W x 24.5″ D x 31.5″ H
UL approved for outdoor use
ADA compliant height (Under 32″ tall)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI HR24B

Technical Details

Dimensions & weight

Weight	115 lbs.
Width	23.4 in.
Depth	24.5 in.
Height	31.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	155 lbs.
Total of Shipping Weight	155 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 6 ft. cord and plug, Energy Consumption: 0.51 kwh/day, Amperage: 1.15, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 61 – 86°F, Voltage Range: 104 – 127V, Control Setpoint Range: 34 – 52°F, Refrigerant: R-600a
Refrigeration Data	Nominal Compres. of 145 BTU/hr at 1/12 HP, Heat Rejection: 501 BTU/hr
Shipping Weight	115
Storage Specs	Nominal storage capacity: 3.7 ft3, Interior storage capacity: 3.7 ft3, Door opening: 18″ W x 27″ H, Depth with door fully extended: 51.5″ D, Shelves included: 3

Warranty

Parts	3 Years
Labor	3 Years

Description

The HR24B is a 24″ undercounter refrigerator with a lockable stainless door at an ADA compliant height that ensures that all of your perishable goods are stored safely and securely. This undercounter refrigerator is UL approved for outdoor use, allowing it to sit outdoors on the patio, by the pool, or on your porch. The HR24B allows you the convenience of refrigeration in just about any setting.

Product Features

Net capacity of 3.7 cubic feet
Dimensions: 23.4″ W x 24.5″ D x 31.5″ H
UL approved for outdoor use
ADA compliant height (Under 32″ tall)
Stainless steel exterior (front, sides, top) with grey ABS interior
Field reversible door with lock (no kit req’d)
full door length stainless steel door handle
Energy efficient, vacuum formed, seamless, one piece grey ABS interior with LED lights
Insulated with environmentally friendly cyclopentane insulation
(3) epoxy coated wire shelves adjustable in 1-1/2″ increments on built-in ABS supports
Electronic controls with LED temperature display and audio/visual alarm
R-600a refrigerant
(4) 0.5″ Built in adjustable legs are standard
Automatic time-initiated heated defrost
Optional kits: Additional epoxy or glass shelves
Nominal Compres. of 145 BTU/hr at 1/12 HP
115v/60/1, 6 ft. cord and plug
Shipping Crate: 26.75″ L x 24″ D x 36.5″ H at 115 lbs
UL approved for outdoor use, Three Years parts and labor warranty
Discontinued – Replaced by HR24C
ENERGY STAR® qualified
