SKU: HDD124S

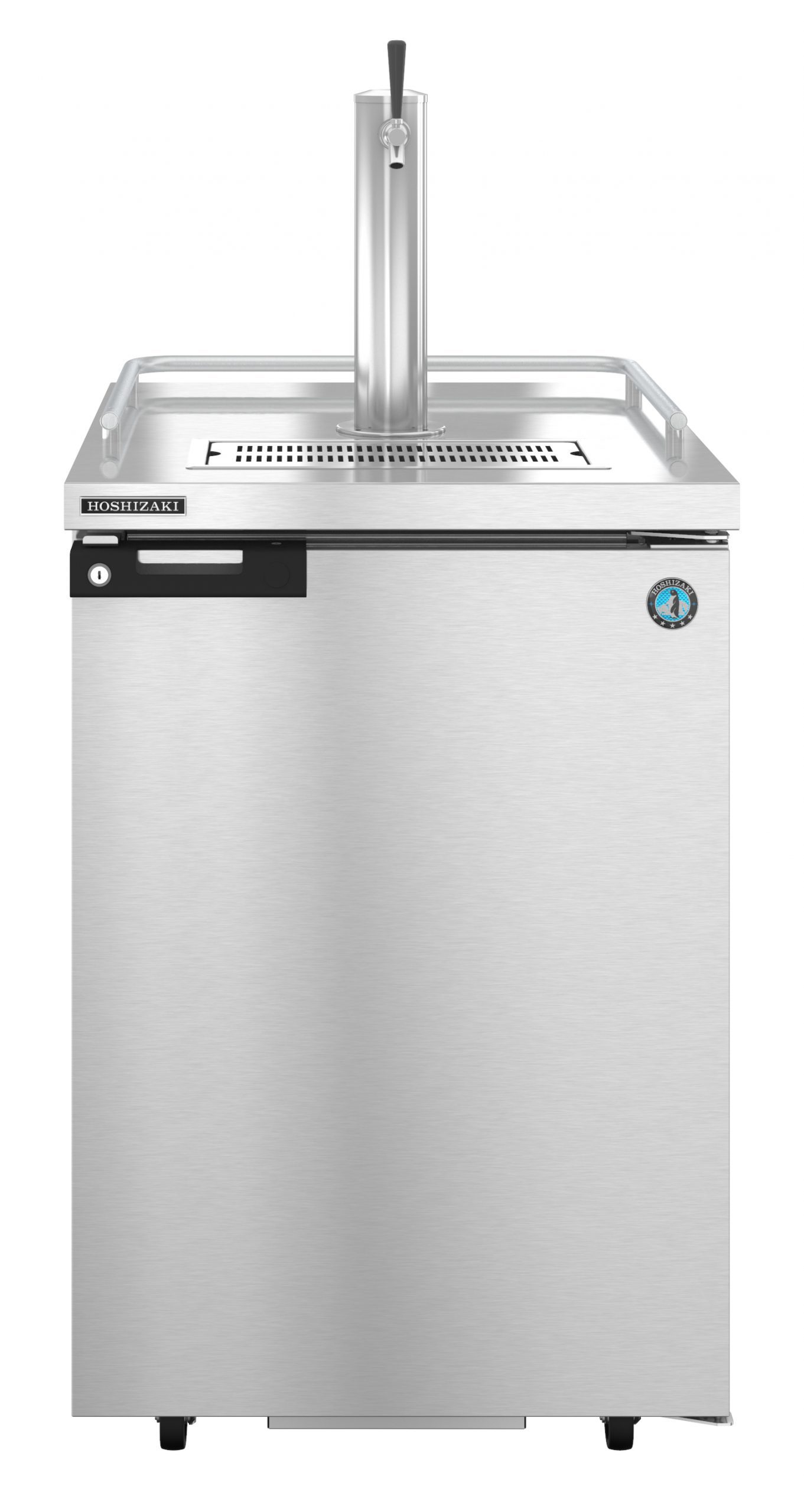

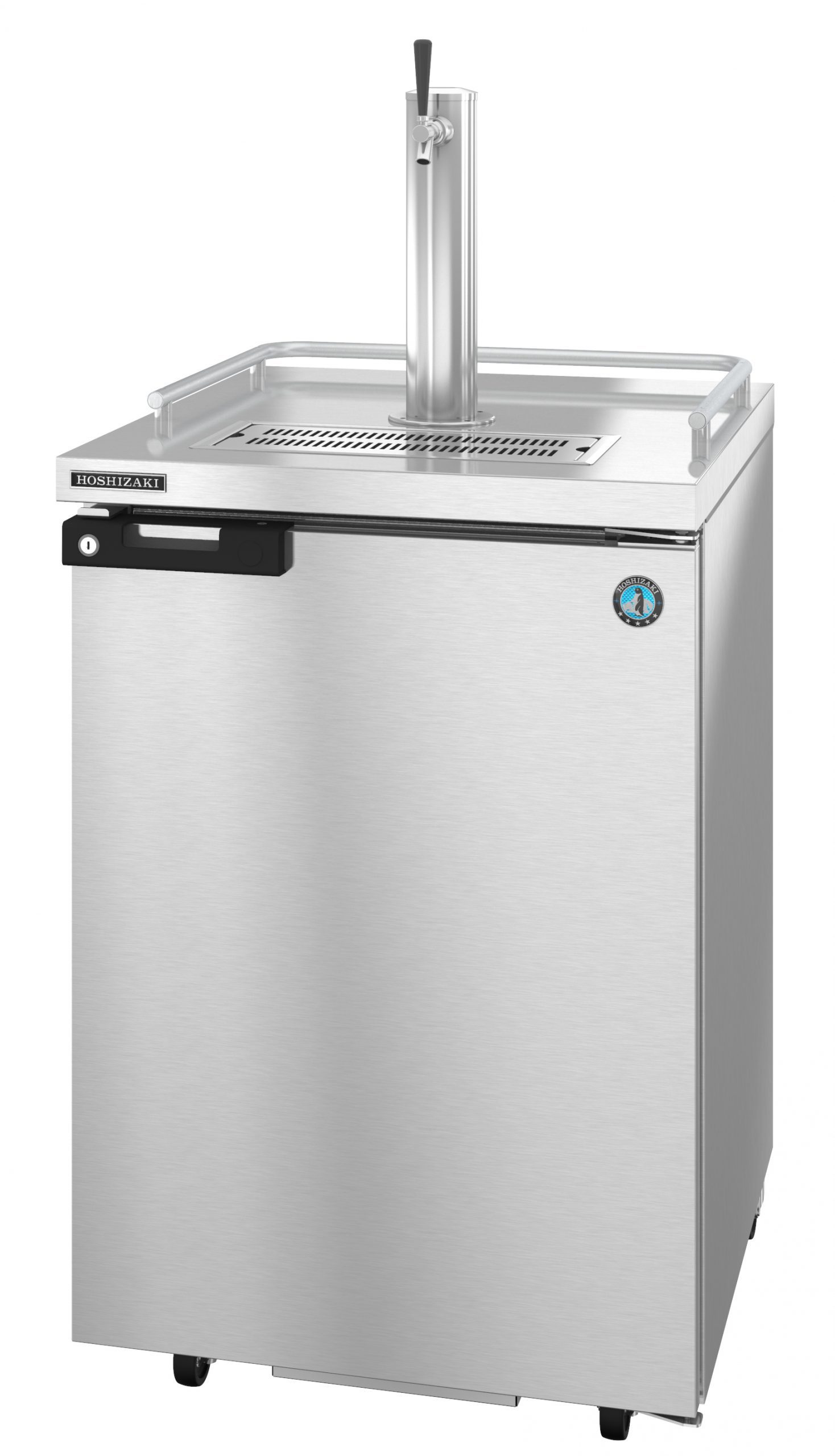

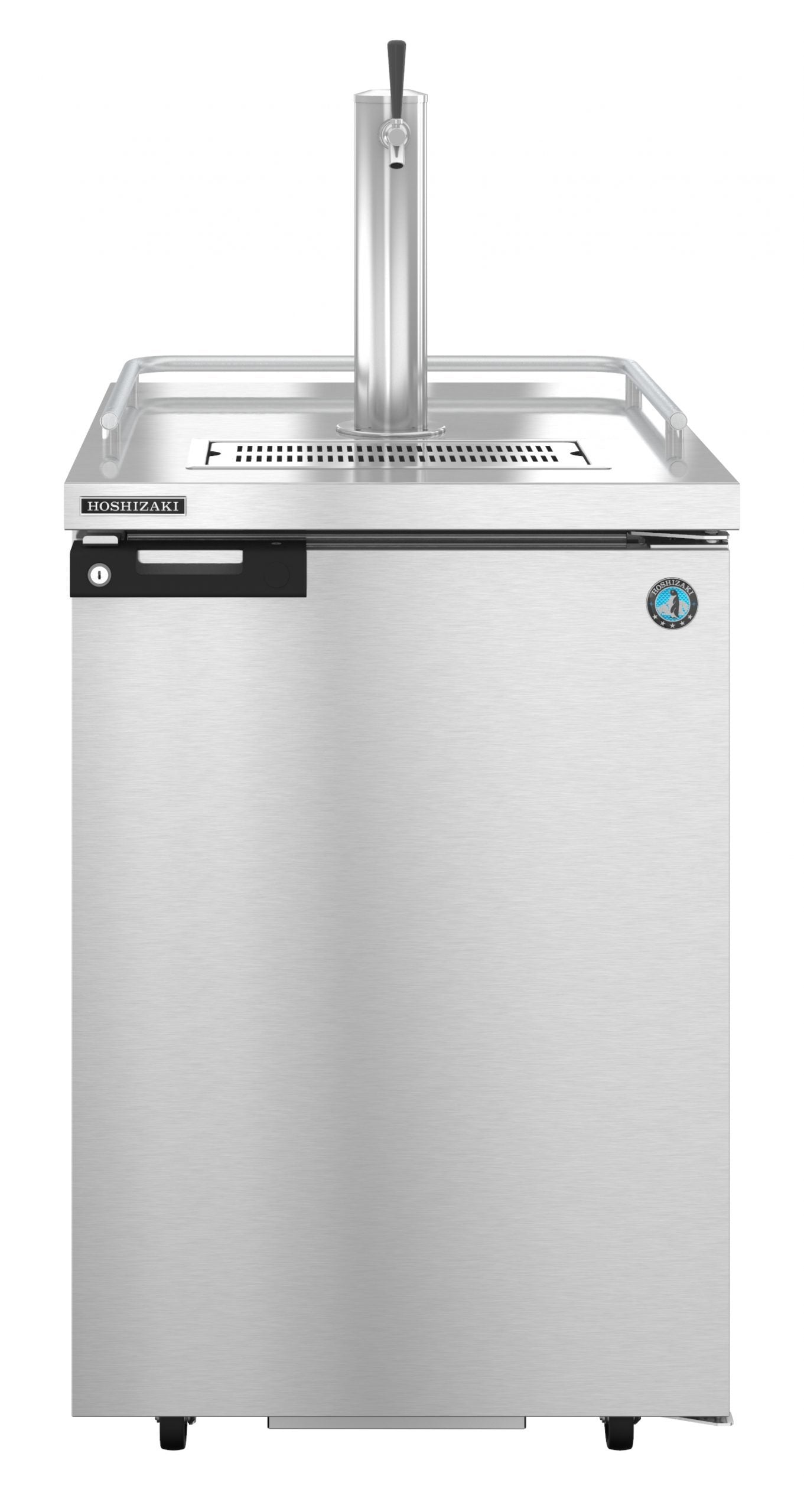

Hoshizaki HDD124S Refrigerator, Single Section, Stainless Steel Back Bar Direct Draw, Solid Door

Quick Specification More details

Width:
24.88"
Depth:
30"
Height:
39.38"
Type:
Other Specialty Refrigerators

About this product

Discontinued – Replaced by DD24-S
Dimensions: 24.88″ W x 30″ D x 39.38″ H
Net capacity of 7.46 cubic feet
Nominal Compres. of 1056 BTU/hr at 1/6 HP

SKU: HDD124S

Hoshizaki HDD124S Refrigerator, Single Section, Stainless Steel Back Bar Direct Draw, Solid Door

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
24.88"
Depth:
30"
Height:
39.38"
Type:
Other Specialty Refrigerators

About this product

Discontinued – Replaced by DD24-S
Dimensions: 24.88″ W x 30″ D x 39.38″ H
Net capacity of 7.46 cubic feet
Nominal Compres. of 1056 BTU/hr at 1/6 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki HDD124S

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.32 Watts, Amperage: 2.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 33 – 38°F, Refrigerant: R-134a
Refrigeration Data	Nominal Compres. of 1056 BTU/hr at 1/6 HP, Heat Rejection: 1056 BTU/hr
Shipping Weight	175
Storage Specs	Interior Storage Capacity: 7.46ft3, Door Opening: 20.625″ W x 29.5″ H , Depth with Door fully extended: 53.375″ D, Keg Cushions Included: 1

Dimensions & weight

Width	24.88 in.
Depth	30 in.
Height	39.38 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The HDD-1-24-S Back Bar Direct Draw is a Single Section Refrigerator with a Solid Door is the perfect portable kegreator for any operation. It boasts an impressive net capacity of 7.46 cubic feet. The durable 1/6 HP motor that powers the compressor in the back of this unit ensures a free flowing air system throughout the cabinet and keeps the keg(s) cold. Engineered to maintain food safe temperatures in +100°F kitchens. Plus the lockable swing door is insulated with environmentally friendly, cfc free foamed in place polyurethane.

Product Features

Discontinued – Replaced by DD24-S
Dimensions: 24.88″ W x 30″ D x 39.38″ H
Net capacity of 7.46 cubic feet
Nominal Compres. of 1056 BTU/hr at 1/6 HP
Electrical consumption of 1.32 kWh/day at 2.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Engineered to maintain food safe temperatures in +100°F kitchens
Includes (1) keg cushion to protect floor and allow air to circulate below kegs
One piece, vinyl coated steel handle with built-in lock
(1) polished stainless steel insulated tower with (1) plated brass faucet
Lockable swing door is insulated with environmentally friendly, CFC free foamed in place polyurethane
Rear breathing with internal drain, internal CO2 chain harness, and knockouts for gas line of for plumbing drain to outside of unit
Stainless Steel exterior front, sides and rear, plus a 18 gauge stainless steel top
Stainless steel interior with reinforced threshold protects cabinet from loading/unloading keg damage
R-134a refrigerant
Automatic “off cycle” defrost cycle
Brushed aluminum glass rail for mug storage on top
Includes 1 keg cushion
Cabinets walls and doors well insulated (2″ thick) and are designed to maintain interior temperatures between 33°F to 38°F
Standard with (4) 4″ Casters (front 2 with brakes)
Made to Order
115v/60/1, 10 ft. cord and plug
Shipping Crate: 34.5″ L x 29″ D x 45.5″ H at 175 lbs
Cabinet fits: (1) 1/2 barrel, or (1) 1/4 barrel, or (2) slim 1/4 barrels, or (4) 1/6 barrels
Five Years compressor warranty, Three Years parts and labor warranty
