SKU: HBB380S

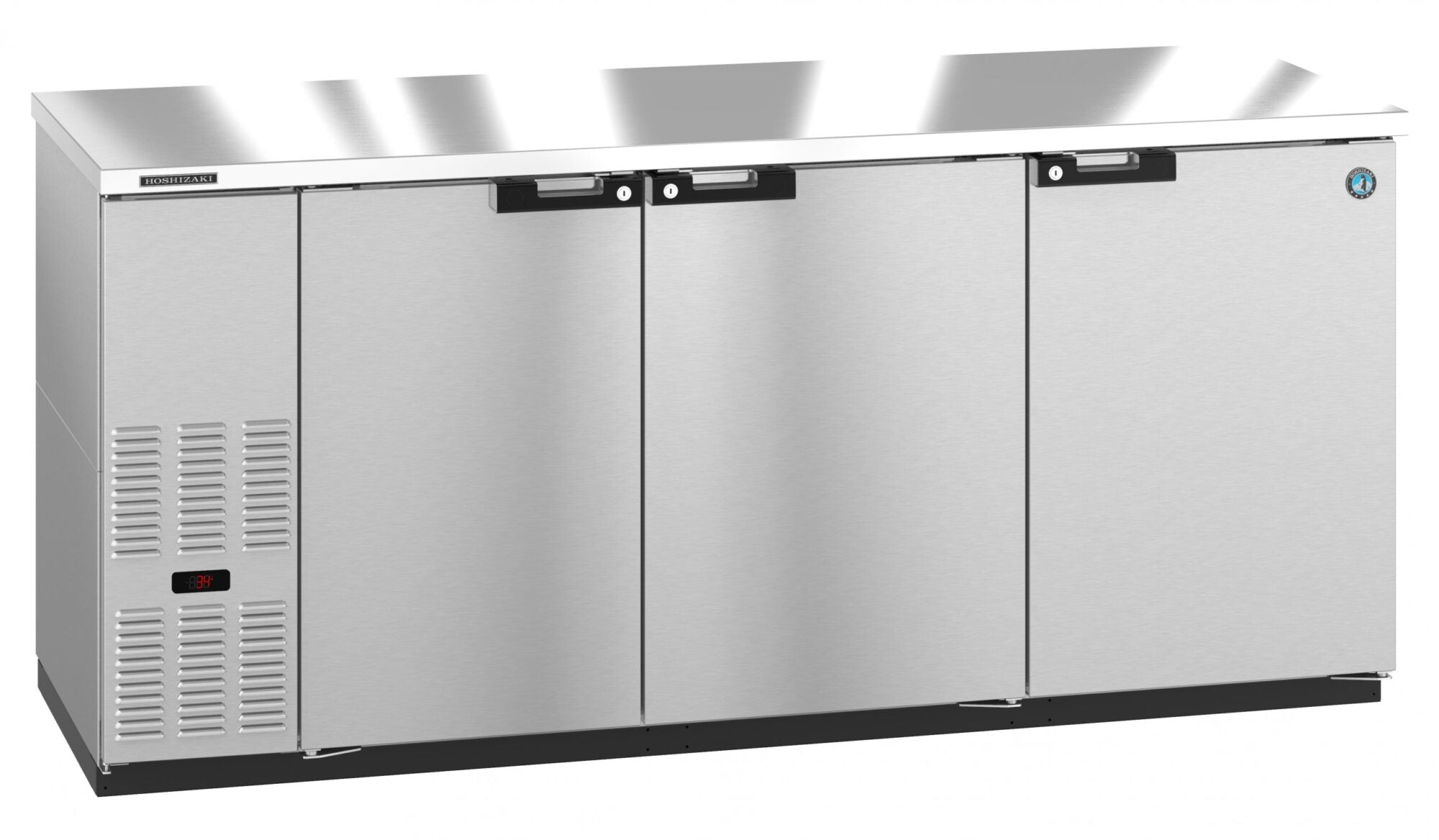

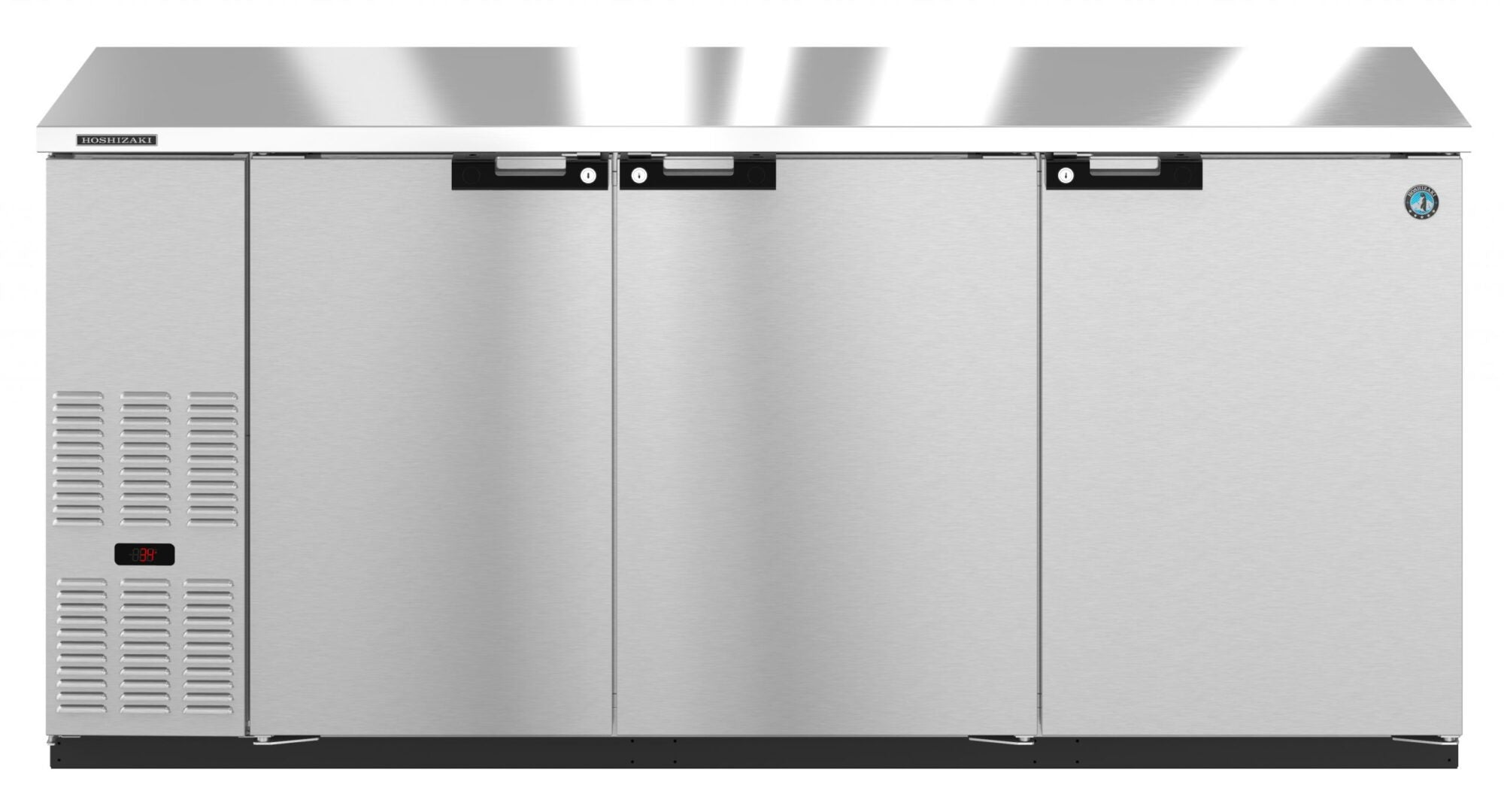

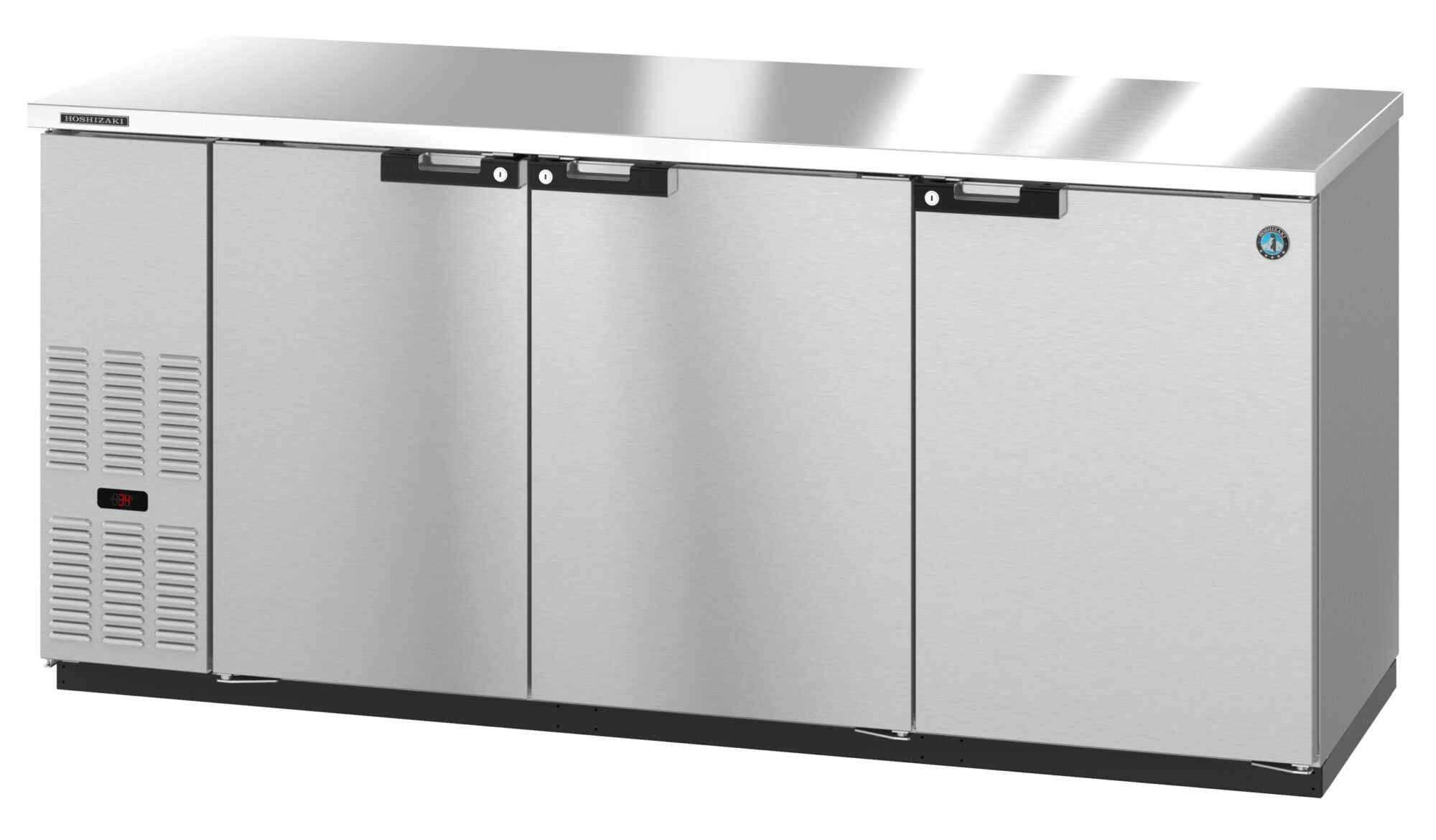

Hoshizaki HBB380S Refrigerator, Three Section, Stainless Steel Back Bar Back Bar, Solid Doors

Quick Specification More details

Width:
80"
Depth:
29"
Height:
36.88"
Type:
Other Specialty Refrigerators

About this product

Discontinued – Replaced by BB80-S
Dimensions: 80″ W x 29″ D x 36.88″ H
Net capacity of 26.79 cubic feet, approx. (1092) 12oz. cans
Nominal Compres. of N/A BTU/hr at 1/3 HP

SKU: HBB380S

Hoshizaki HBB380S Refrigerator, Three Section, Stainless Steel Back Bar Back Bar, Solid Doors

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
80"
Depth:
29"
Height:
36.88"
Type:
Other Specialty Refrigerators

About this product

Discontinued – Replaced by BB80-S
Dimensions: 80″ W x 29″ D x 36.88″ H
Net capacity of 26.79 cubic feet, approx. (1092) 12oz. cans
Nominal Compres. of N/A BTU/hr at 1/3 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki HBB380S

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: N/A Watts, Amperage: 5.2, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 33 – 38°F, Refrigerant: R-134a
Refrigeration Data	Nominal Compres. of N/A BTU/hr at 1/3 HP, Heat Rejection: 2345 BTU/hr
Shipping Weight	395
Storage Specs	Interior Storage Capacity: 26.79ft3, Door Opening: 80″ W x 36.88″ H , Depth with Door fully extended: 51.5″ D, Keg Cushions Included: 6

Dimensions & weight

Width	80 in.
Depth	29 in.
Height	36.88 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The HBB-3-80-S Back Bar Back Bar is a Three Section Refrigerator with a solid door that has all the right features. It boasts an impressive net capacity of 26.79 cubic feet, approx. (1092) 12oz. cans. The durable 1/3 HP motor that powers the compressor at the side of this unit that distributes air from left to right rather than from back to front. Side to side circular airflow ensures ice-cold products even when doors are opened regularly. Engineered to maintain food safe temperatures in +100°F kitchens. Plus the self-closing doors with stainless steel interior liner come standard with barrel locks.

Product Features

Discontinued – Replaced by BB80-S
Dimensions: 80″ W x 29″ D x 36.88″ H
Net capacity of 26.79 cubic feet, approx. (1092) 12oz. cans
Nominal Compres. of N/A BTU/hr at 1/3 HP
Electrical consumption of N/A kWh/day at 5.2 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Engineered to maintain food safe temperatures in +100°F kitchens
Includes (6) gray epoxy shelves with front & back product stops
One piece, vinyl coated steel handle with built-in lock
Durable gray epoxy shelves adjustable in 1/2″ increments on anodized aluminum supports
Self-closing doors with stainless steel interior liner come standard with barrel locks
Front breathing, side mount refrigeration that distributes air from left to right rather than from back to front
Stainless Steel exterior front, sides and rear, plus a 18 gauge stainless steel top
Stainless steel interior with LED lights
R-134a refrigerant
Automatic “off cycle” defrost cycle
Maximum product storage capacity with the ability to store tall boys three high per section
Includes 6 gray epoxy shelves
Cabinets walls and doors well insulated (2″ thick) and are designed to maintain interior temperatures between 33°F to 38°F
Electronic controller with LED display (°F or °C)
Made to Order
115v/60/1, 10 ft. cord and plug
Shipping Crate: 72.5″ L x 31.25″ D x 42.75″ H at 395 lbs
Cabinet fits: (1092) 12oz. cans
Five Years compressor warranty, Three Years parts and labor warranty
