SKU: FS1500MLJC

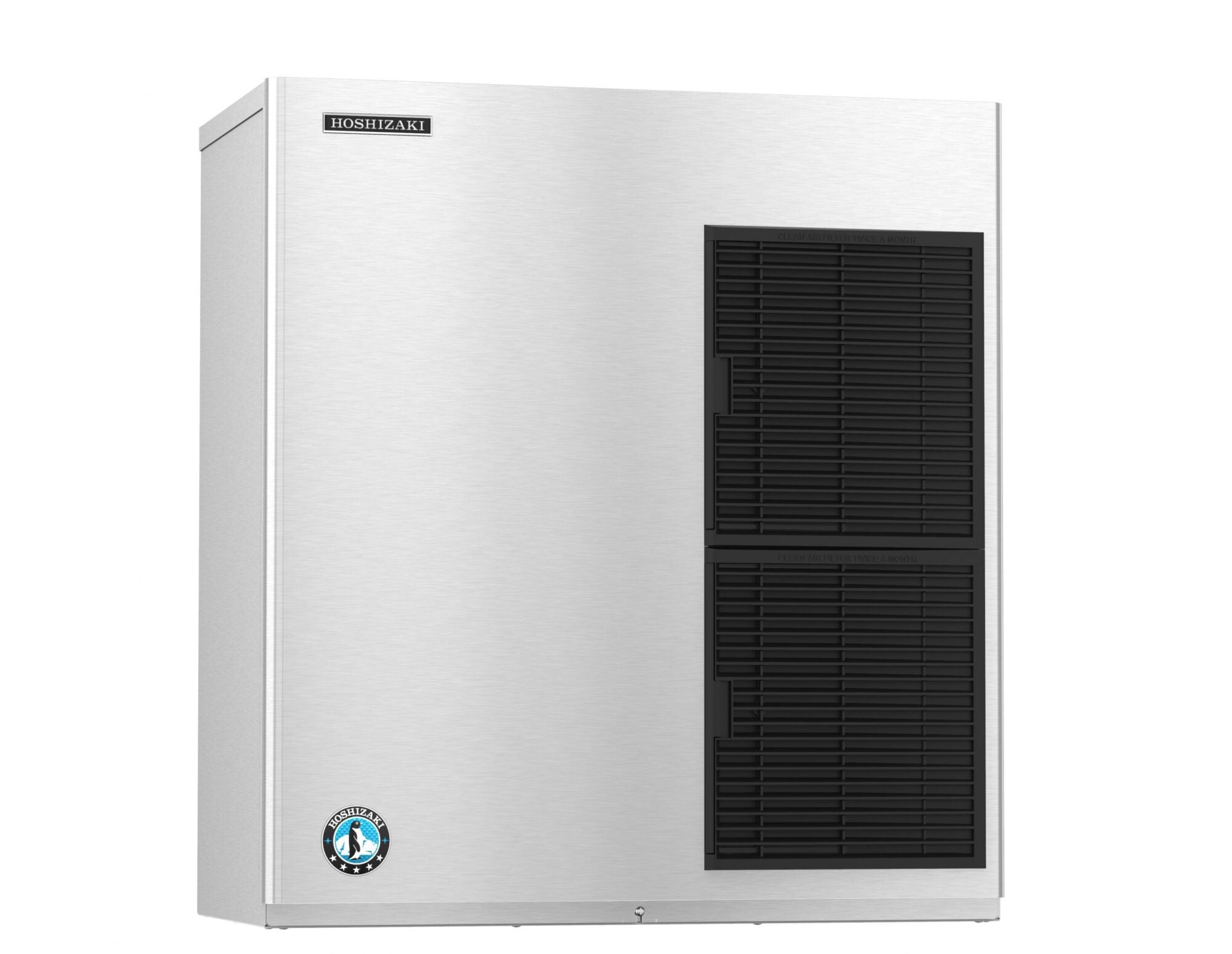

Hoshizaki FS1500MLJC Cubelet Icemaker, Remote-cooled, Serenity Series Stainless Steel

Quick Specification More details

Width:
30"
Depth:
16.5"
Height:
33"
Type:
Ice Makers

About this product

Discontinued – Replaced by FS-1501MLJ-C
Dimensions: 30″ W x 16-1/2″ D x 33″ H
Up to 1386 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Summer Sale

Clearance

SKU: FS1500MLJC

Hoshizaki FS1500MLJC Cubelet Icemaker, Remote-cooled, Serenity Series Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
16.5"
Height:
33"
Type:
Ice Makers

About this product

Discontinued – Replaced by FS-1501MLJ-C
Dimensions: 30″ W x 16-1/2″ D x 33″ H
Up to 1386 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI FS1500MLJC

Technical Details

Product details

Electrical Specs	Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 10.1, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 15300 BTU/hr, Refrigerant Charge: R-404A, (3.5 oz. / 100
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	222
Utility Consumption	4.75 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	16.5 in.
Height	33 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The FS-1500MLJ-C is capable of producing approximately 1386 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with SRC-14J icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1500MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by FS-1501MLJ-C
Dimensions: 30″ W x 16-1/2″ D x 33″ H
Up to 1386 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

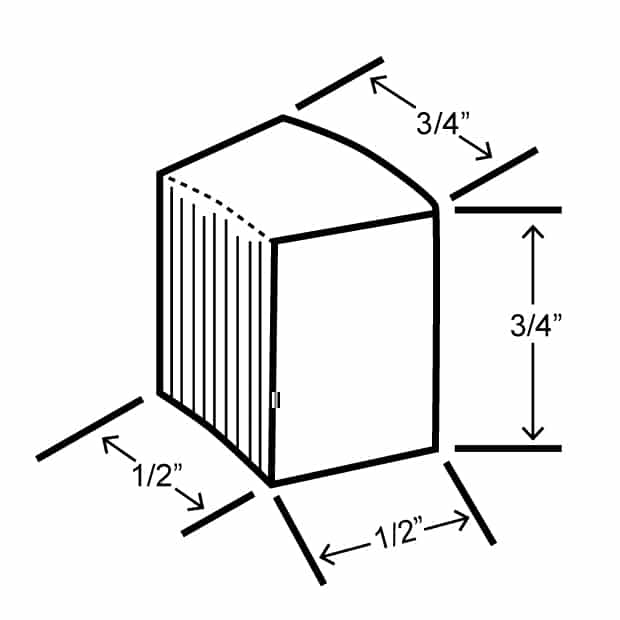

Produces medium cubelet nugget-style ice
Durable stainless steel exterior

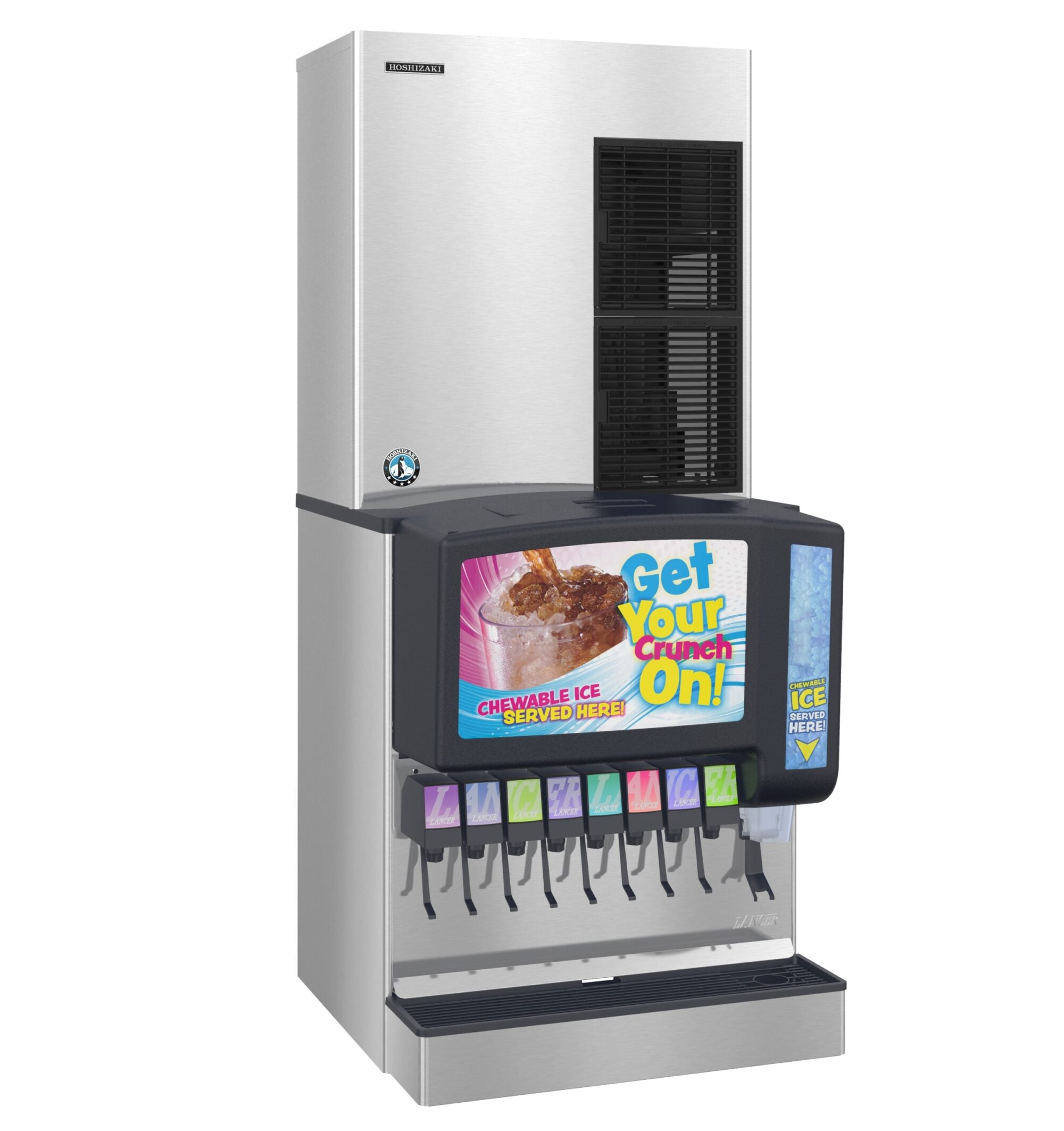

Compatible bins & dispensers, sold separately: Beverage Dispensers
Ice removed from evaporator after every shut down cycle
Advanced CleanCycle24™ design
Remote cooled models reduces heat in the kitchen and minimizes noise
R-404A refrigerant (3.5 oz. / 100 g)
Heat Rejection:15300 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
10.1 amps (20 Amp Max fuse)
4.75 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
