SKU: FS1022MLJC

Hoshizaki FS1022MLJC Cubelet Icemaker, Remote-cooled, Serenity Series Stainless Steel

Quick Specification More details

Width:
22"
Depth:
16.5"
Height:
26"
Type:
Ice Makers

About this product

Up to 830 lbs of ice produced per 24 hours
Durable stainless steel exterior
Produces small cubelet nugget-style ice

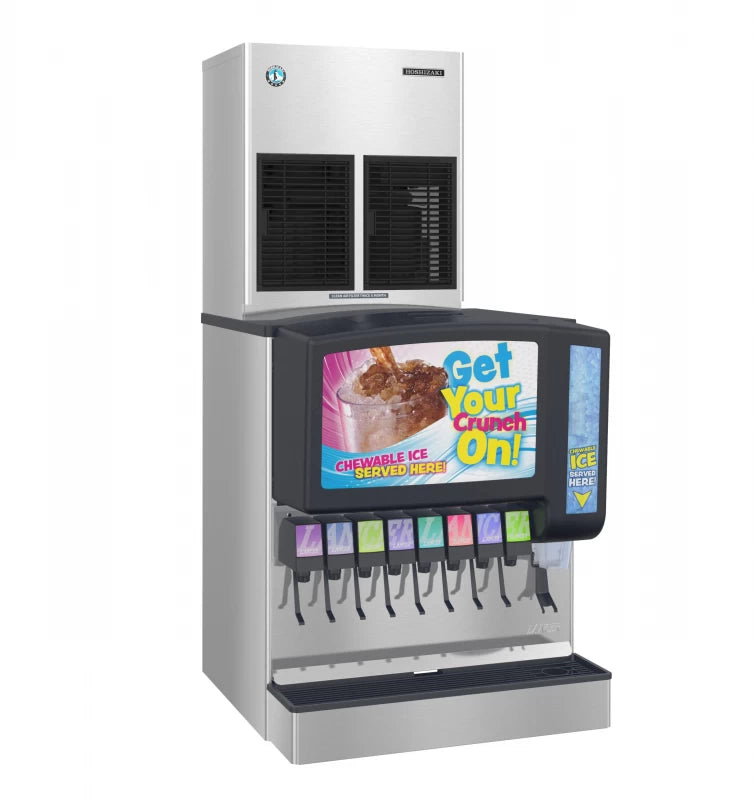

Compatible bins & dispensers, sold separately: Beverage Dispensers

Summer Sale

Clearance

SKU: FS1022MLJC

Hoshizaki FS1022MLJC Cubelet Icemaker, Remote-cooled, Serenity Series Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
16.5"
Height:
26"
Type:
Ice Makers

About this product

Up to 830 lbs of ice produced per 24 hours
Durable stainless steel exterior
Produces small cubelet nugget-style ice
Compatible bins & dispensers, sold separately: Beverage Dispensers

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI FS1022MLJC

Technical Details

Product details

Utility Consumption	5.96 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, See Remote Condenser *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 9.3, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9800 BTU/hr, Refrigerant Charge: R-404A, (4 oz. / 113 g)
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	140

Dimensions & weight

Weight	140 lbs.
Width	22 in.
Depth	16.5 in.
Height	26 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	180 lbs.
Total of Shipping Weight	180 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

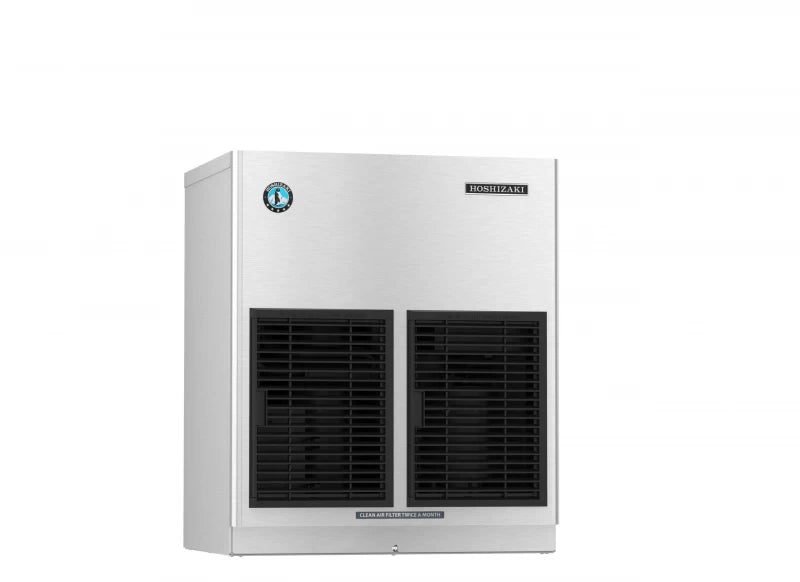

The FS-1022MLJ-C is capable of producing approximately 830 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1022MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.

Product Features

Up to 830 lbs of ice produced per 24 hours
Durable stainless steel exterior
Produces small cubelet nugget-style ice
Compatible bins & dispensers, sold separately: Beverage Dispensers
Ice removed from evaporator after every shut down cycle
Reduces heat in the kitchen and minimizes noise
R-404A refrigerant (4 oz. / 113 g)
5.96 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
9.3 amps (20 Amp Max fuse)
Mount units side-by-side for x the ice production
Advanced CleanCycle24™ design
Heat Rejection: 9800 BTU/hr
Three Years: Parts & Labor warranty on entire machine (Serial numbers VxxxxxJ and after)
Five Years: Parts warranty on Compressor, air-cooled condenser coil
