SKU: FM23HC

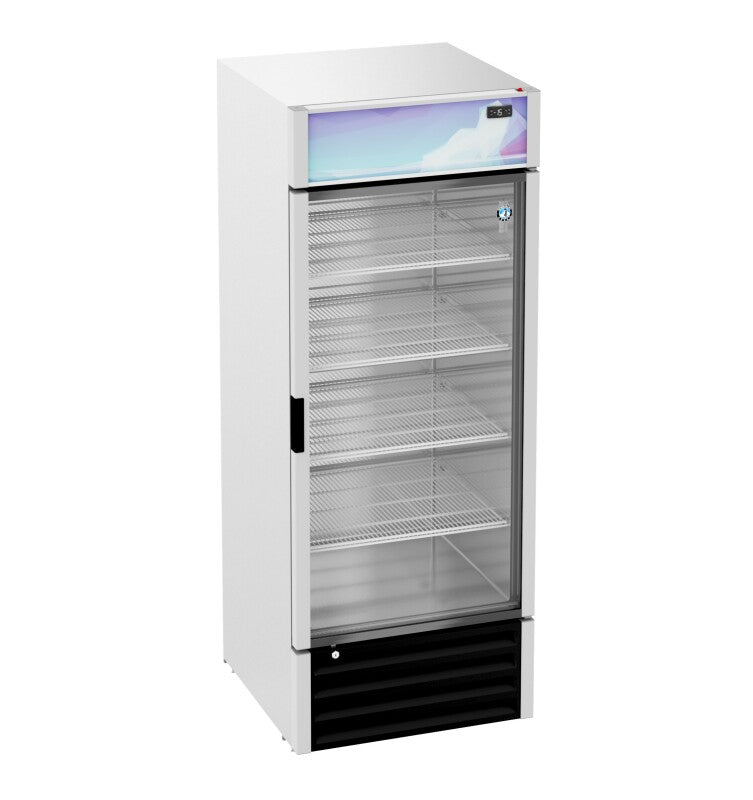

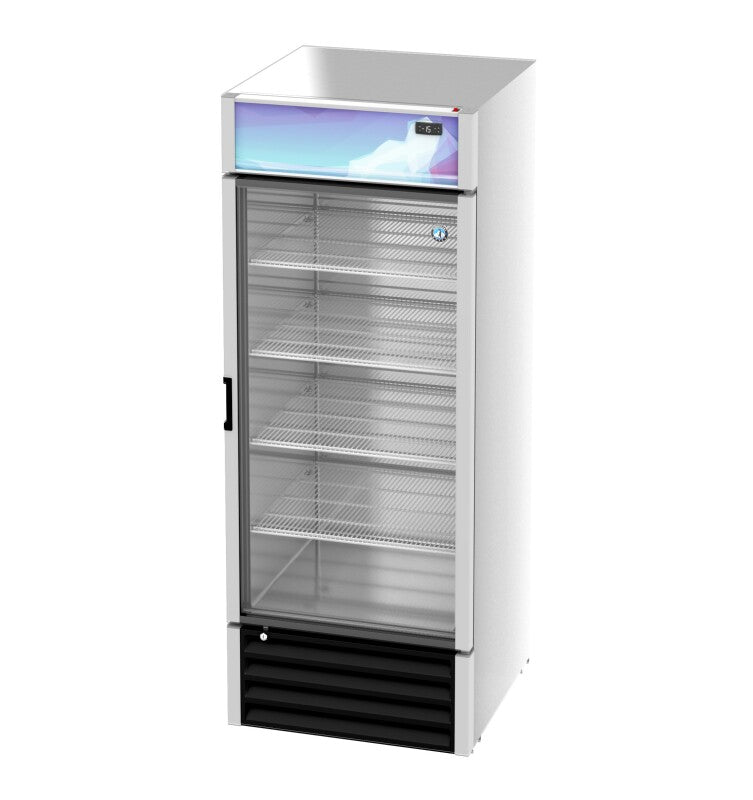

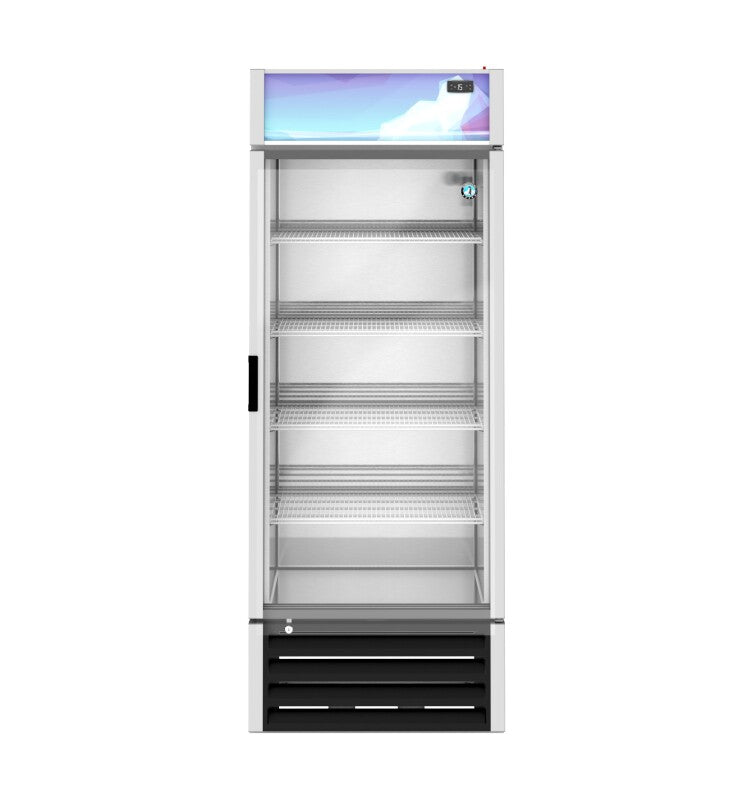

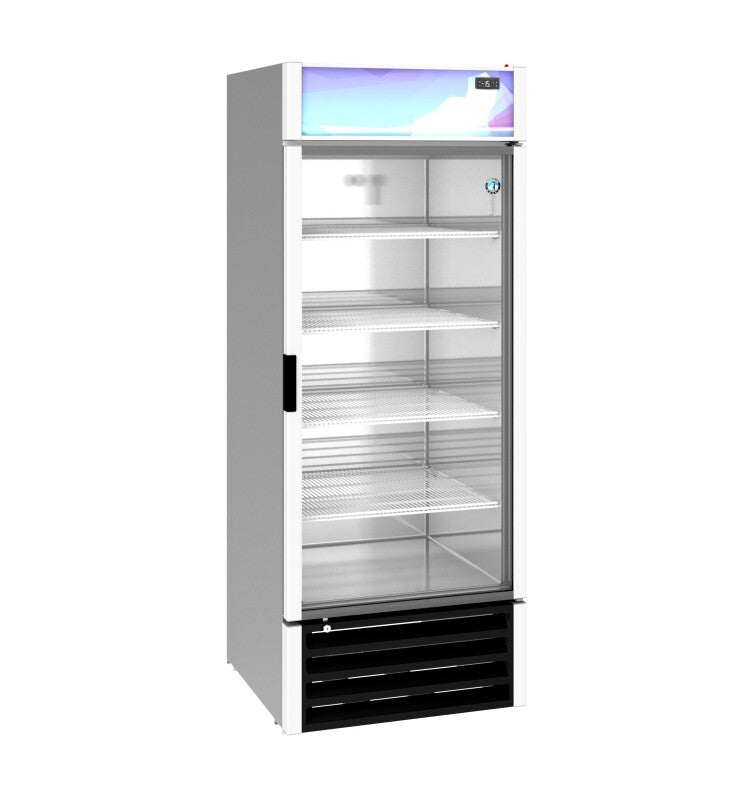

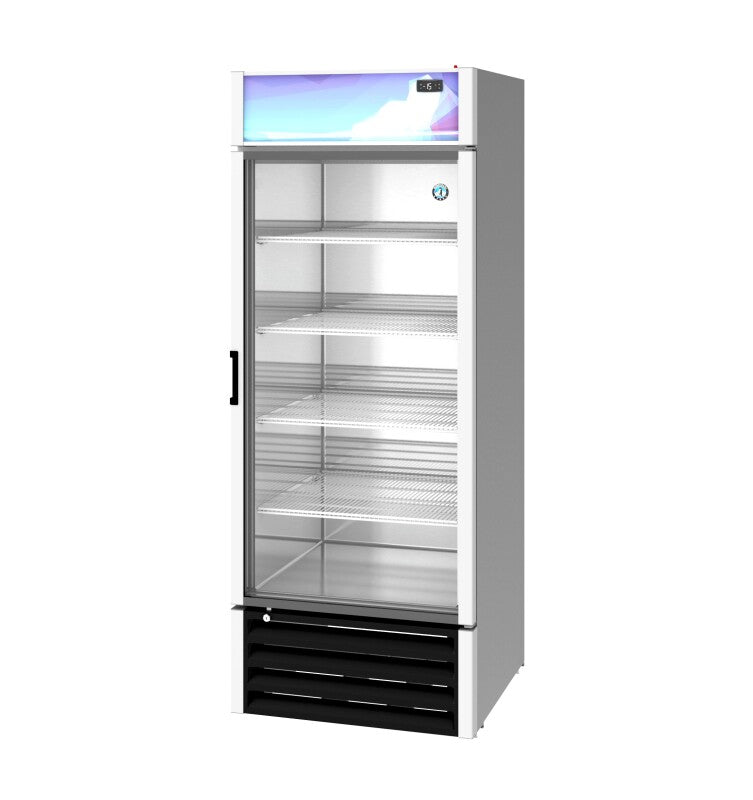

Hoshizaki FM23HC Freezer, Single Section Glass Door Merchandiser – Silver Exterior

Quick Specification More details

Width:
30"
Depth:
29.75"
Height:
78"
Type:
Upright Freezers

About this product

Storage capacity of 20.71 cubic feet
Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
Large glass swinging door is energy efficient Low-E multi pane glass
Time-initiated automatic defrost

Summer Sale

Clearance

SKU: FM23HC

Hoshizaki FM23HC Freezer, Single Section Glass Door Merchandiser – Silver Exterior

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
29.75"
Height:
78"
Type:
Upright Freezers

About this product

Storage capacity of 20.71 cubic feet
Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
Large glass swinging door is energy efficient Low-E multi pane glass
Time-initiated automatic defrost

Product Details for HOSHIZAKI FM23HC

Technical Details

Dimensions & weight

Weight	385 lbs.
Width	30 in.
Depth	29.75 in.
Height	78 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	425 lbs.
Total of Shipping Weight	425 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Amperage: 4.8, Max Fuse/HACR Breaker: 15A
Operating Limits	Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 127V, Control Setpoint Range: -10 – 0°F, Refrigerant: R290 (10.58 oz.)
Refrigeration Data	Time-initiated automatic defrost
Shipping Weight	385 lbs.
Storage Specs	Nominal storage capacity: 20.71 ft3, Door opening: 25.25″ W x 25.25″ D x 60.5″ H, Depth with door fully extended: 58.75″ D, Shelves included: 5

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The FM-23-HC Glass Door Merchandiser is a single section freezer with a full glass swing door is the perfect packaged product display for any operation. It boasts an impressive storage capacity of 20.71 cubic feet. The durable motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!

Product Features

Storage capacity of 20.71 cubic feet
Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
Large glass swinging door is energy efficient Low-E multi pane glass
Time-initiated automatic defrost
Door is mounted on heavy duty hinges with self-closing mechanism
Forced air evaporator for quick temperature pull down
Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
Silver painted galvanized steel exterior, white steel interior with stainless steel floor
Energy efficient LED interior product lights and exterior canopy lights
Refrigerant flow is controlled with a capillary tube
Energy saving hot gas loop and an electric glass door heater
Dependable interior dial controller and side mount thermometer (°F or °C)
Environmentally friendly R290 refrigerant
Includes (5) white epoxy coated wire coated wire shelves with product stops
Standard with (4) 2″ leveling legs
