SKU: F2001MWJ

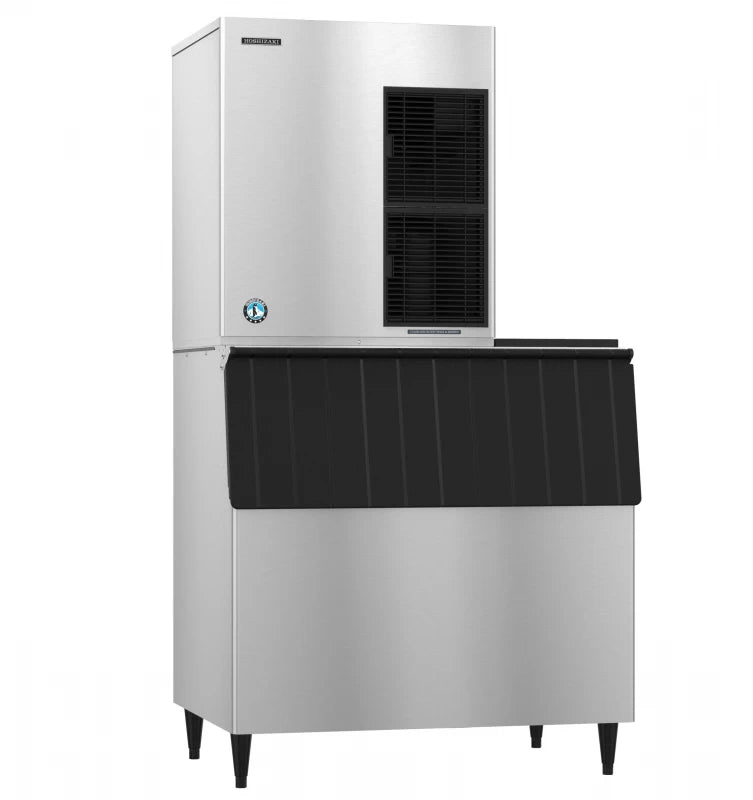

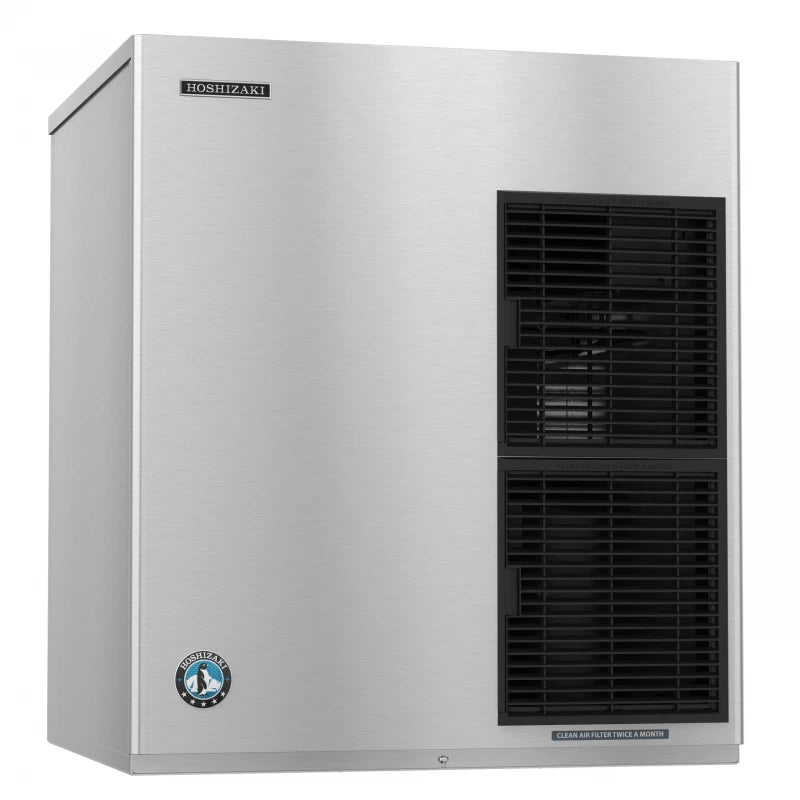

Hoshizaki F2001MWJ Flaker Icemaker, Water-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.5"
Height:
34.438"
Type:
Ice Makers

About this product

Up to 2043 lbs of ice produced per 24 hours
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production

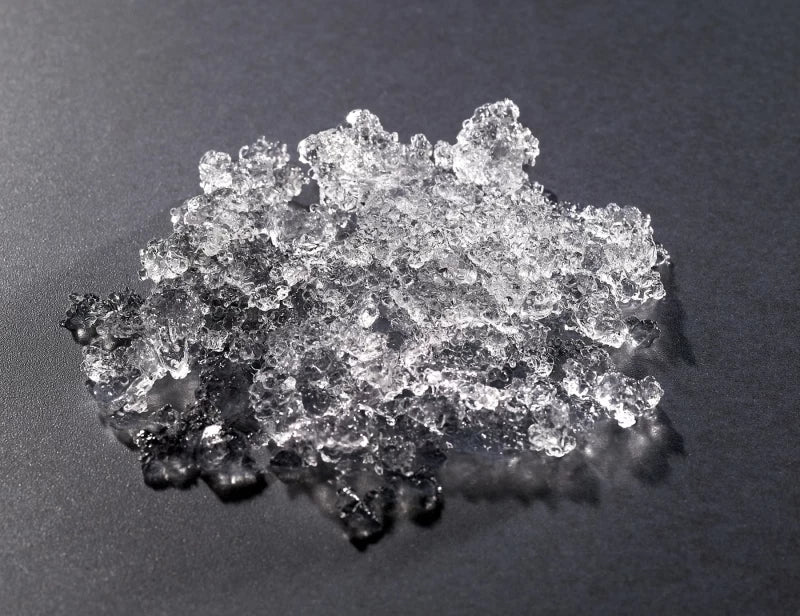

Produces flaked ice

Summer Sale

Clearance

SKU: F2001MWJ

Hoshizaki F2001MWJ Flaker Icemaker, Water-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.5"
Height:
34.438"
Type:
Ice Makers

About this product

Up to 2043 lbs of ice produced per 24 hours
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI F2001MWJ

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 16.4, Max Fuse/HACR Breaker: 30 A
Utility Consumption	3.19 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 19500 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 0.1 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	355

Dimensions & weight

Weight	355 lbs.
Width	30 in.
Depth	27.5 in.
Height	34.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	395 lbs.
Total of Shipping Weight	395 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-2001MWJ is capable of producing approximately 2043 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-2001MWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Up to 2043 lbs of ice produced per 24 hours
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
2 second rinse every hour to remove sediment
Designed for long life dependability
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
R-404A refrigerant (2 lbs. 0.1 oz. / 910 g)
16.4 amps (30 Amp Max fuse)
3.19 kwh/100 lbs.@ 90/70
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Advanced CleanCycle24™ design
Heat Rejection:19500 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
