SKU: F2001MRJ3

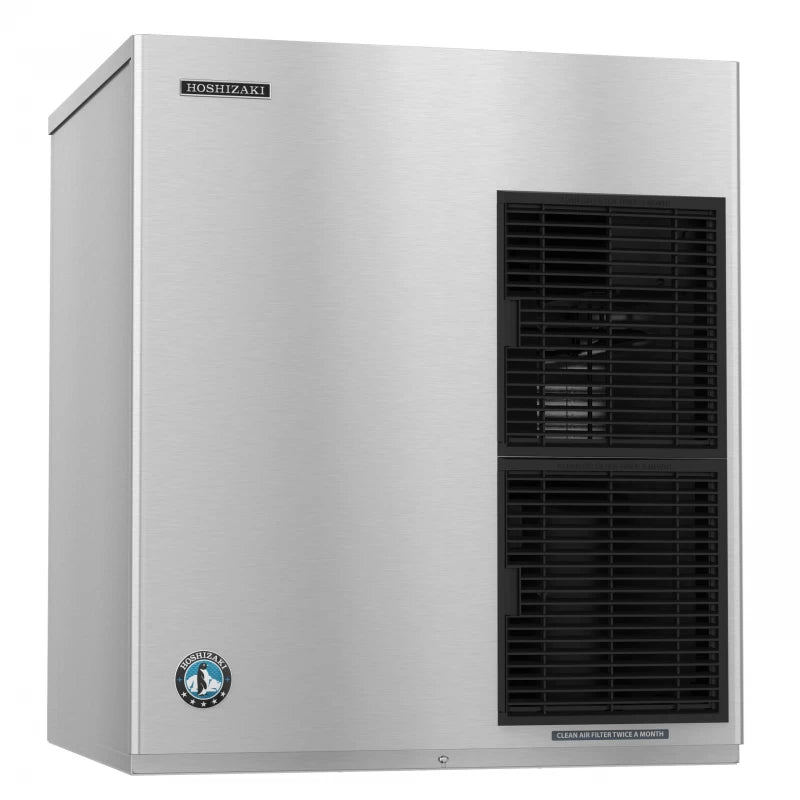

Hoshizaki F2001MRJ3 Flaker Icemaker, Remote-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.438"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
Up to 2098 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

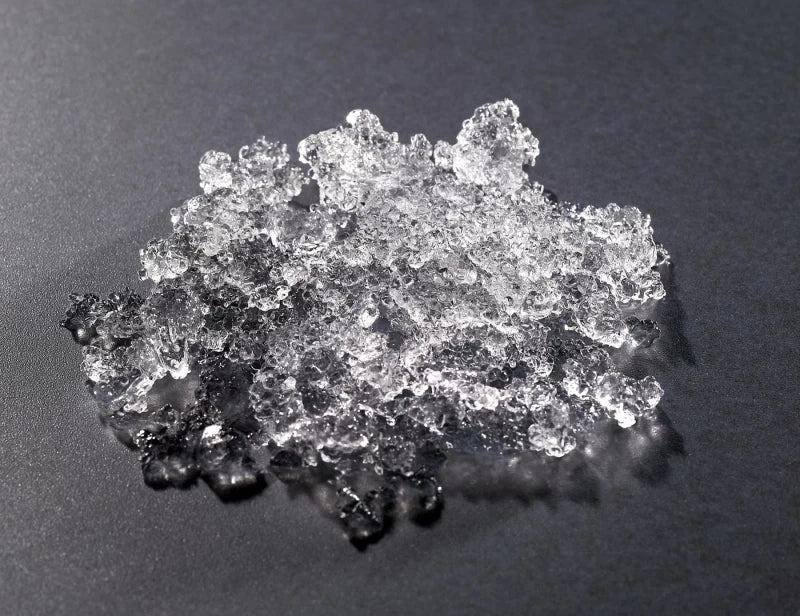

Produces flaked ice

Summer Sale

Clearance

SKU: F2001MRJ3

Hoshizaki F2001MRJ3 Flaker Icemaker, Remote-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.438"
Type:
Ice Makers

About this product

Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
Up to 2098 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI F2001MRJ3

Technical Details

Product details

Electrical Specs	Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 18.1, Max Fuse/HACR Breaker: 20 A
Utility Consumption	3.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 19500 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 2.5 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	360

Dimensions & weight

Weight	360 lbs.
Width	30 in.
Depth	27.375 in.
Height	34.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	400 lbs.
Total of Shipping Weight	400 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-2001MRJ3 is capable of producing approximately 2098 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Remote-cooled with URC-22F icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-2001MRJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. F-2001MRJZ3.

Product Features

Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
Up to 2098 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior

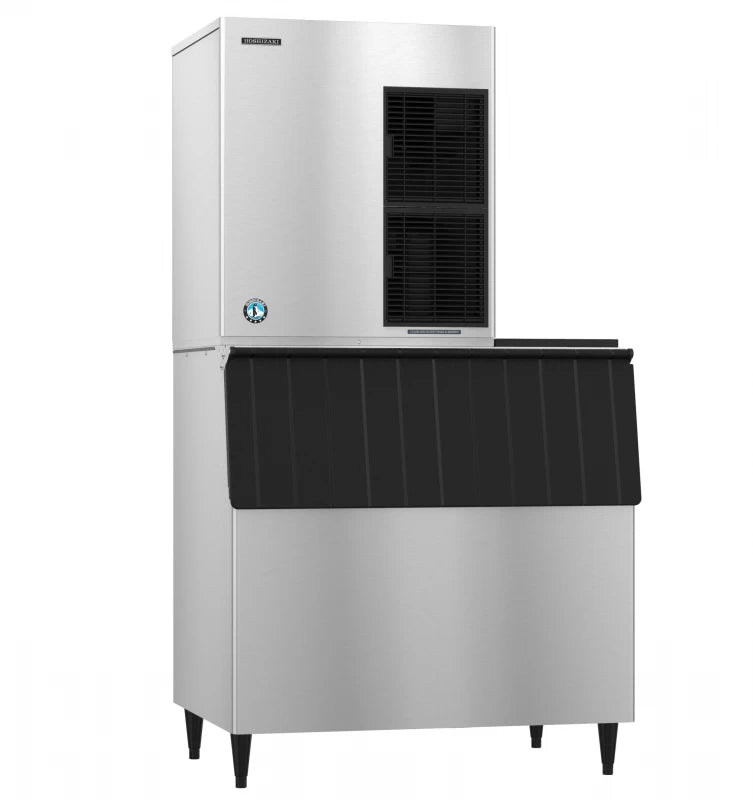

Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment
Designed for long life dependability
R-404A refrigerant (8 lbs. 2.5 oz. / 3700 g)
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
18.1 amps (20 Amp Max fuse)
3.9 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Discontinued – Replaced by F-2001MRJZ3
Advanced CleanCycle24™ design
Heat Rejection:19500 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
