SKU: F1AHG

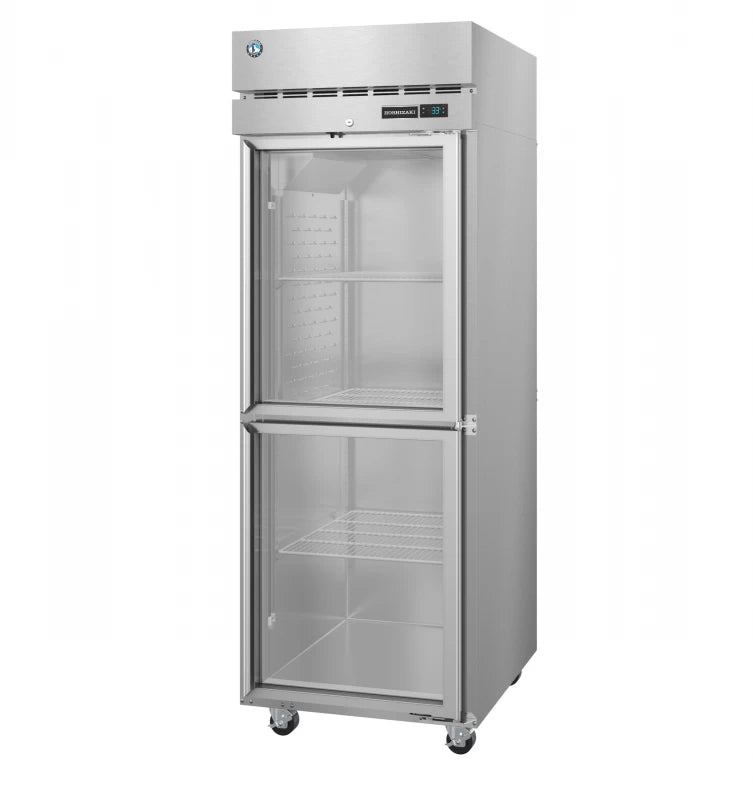

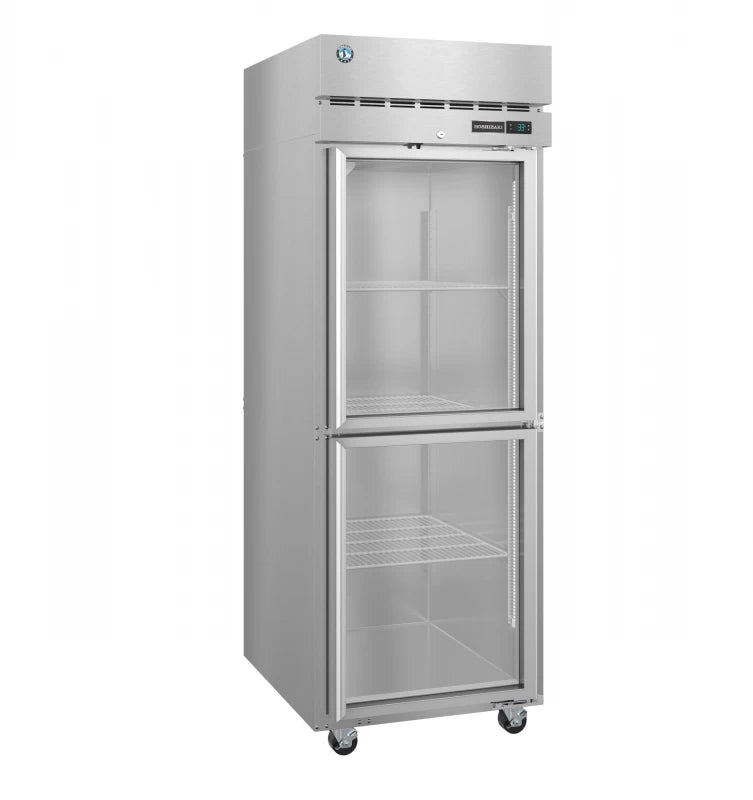

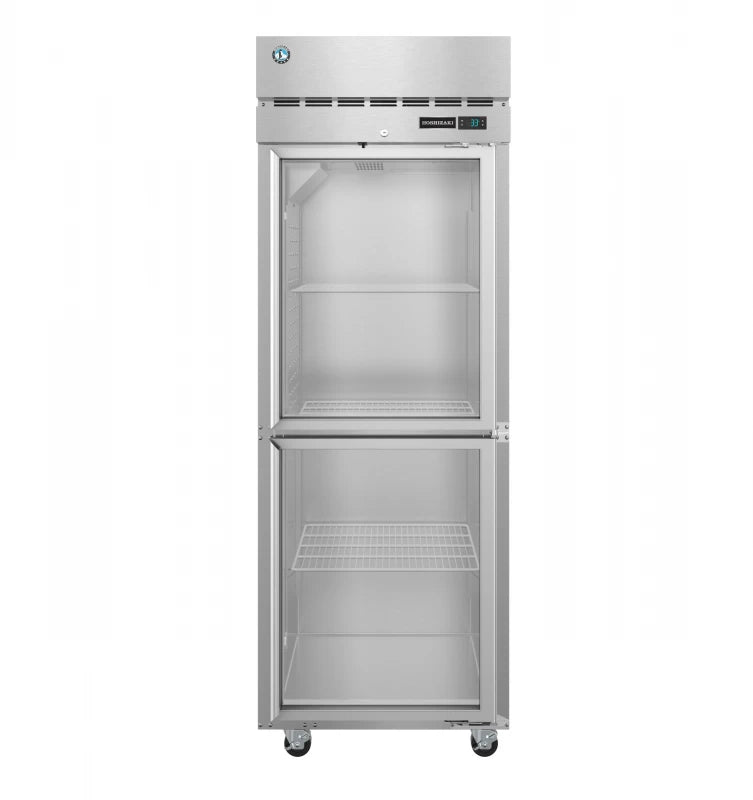

Hoshizaki F1AHG Freezer, Single Section Upright, Half Glass Doors with Locks Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
34.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
One piece, full door length, chrome handle

Summer Sale

Clearance

SKU: F1AHG

Hoshizaki F1AHG Freezer, Single Section Upright, Half Glass Doors with Locks Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
34.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
One piece, full door length, chrome handle

Product Details for HOSHIZAKI F1AHG

Technical Details

Dimensions & weight

Weight	380 lbs.
Width	27.5 in.
Depth	34.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	420 lbs.
Total of Shipping Weight	420 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 7.73 kwh/day, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 80°F, Voltage Range: 105 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 806 BTU/hr
Shipping Weight	380
Storage Specs	Nominal storage capacity: 23.61 ft4, Interior storage capacity: 23.1 ft4, Door opening: 21.75″ W x 27.75″ H, Depth with door fully extended: 57″ D, Shelves included: 3

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The F1A-HG Steelheart Series Upright single section freezer with a stainless door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-HG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
One piece, full door length, chrome handle
Lockable Stainless Door
Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
Interior LED light bars are vertically mounted on each wall
R290 refrigerant
Nominal Compres. of 1425 BTU/hr at 3/4 HP
115v/60/1, 10 ft. cord and plug

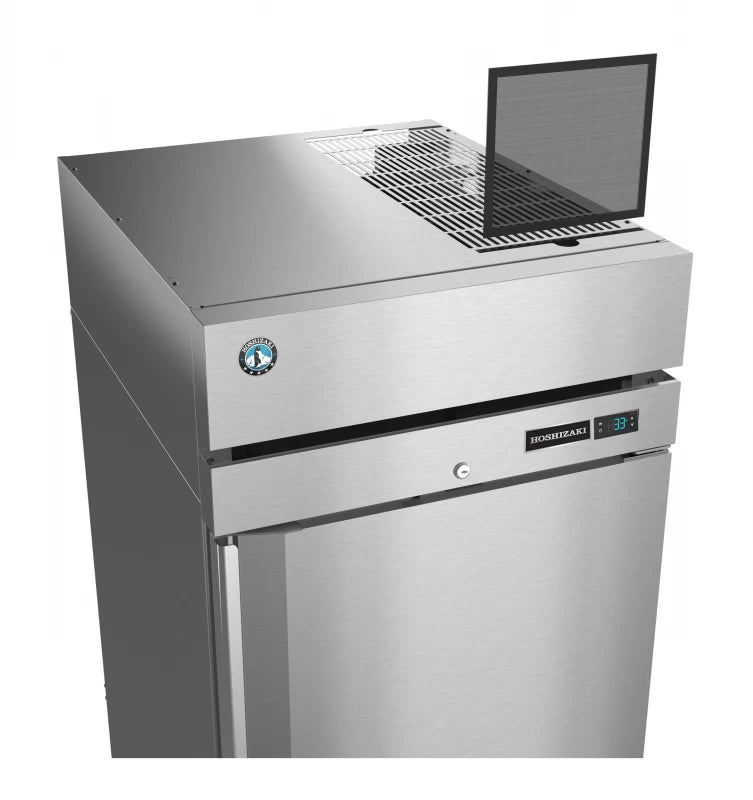

Top mounted energy efficient non-electric evaporation system

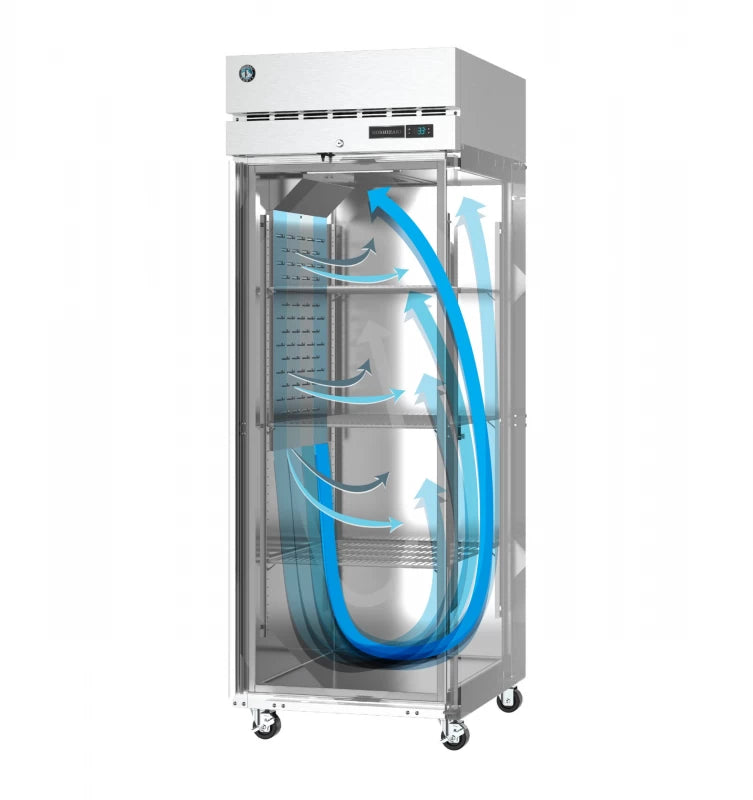

Unique “ducted” air distribution system
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
