SKU: F1AFS

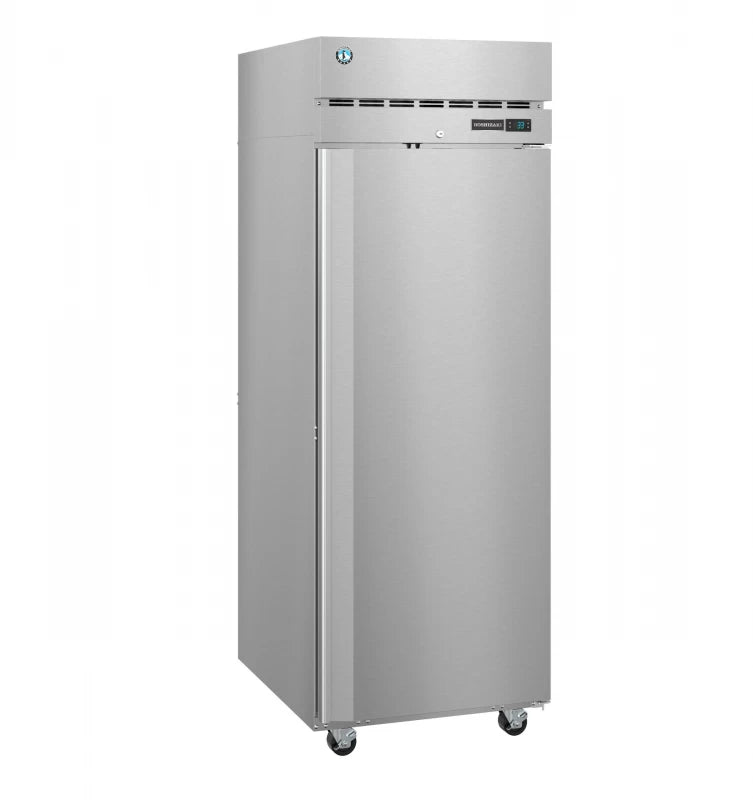

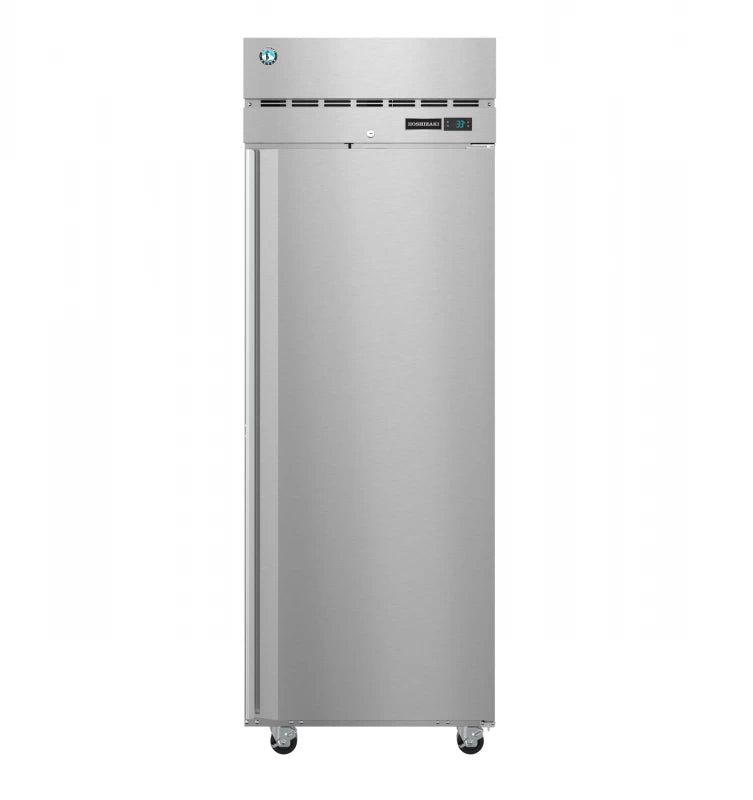

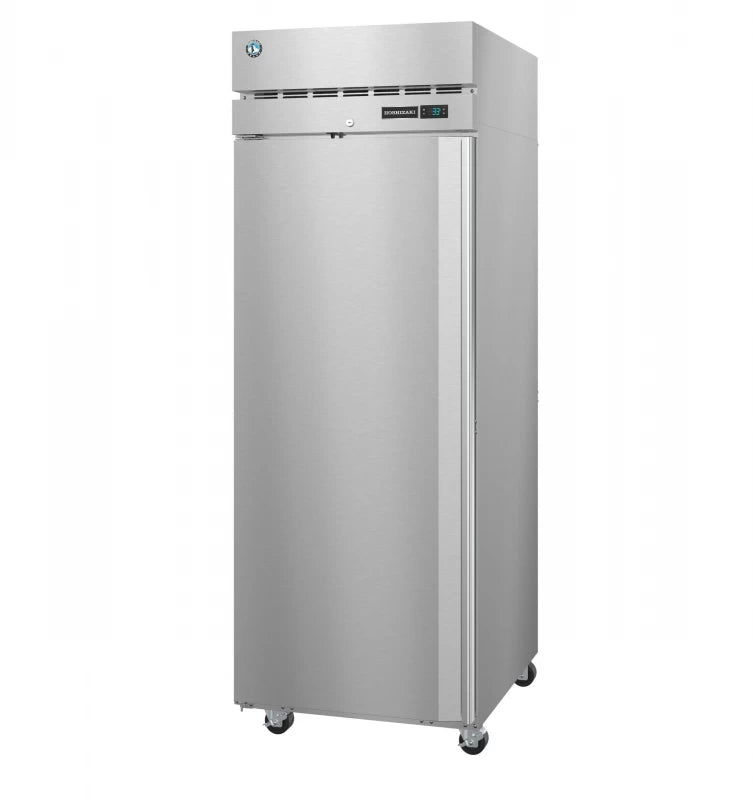

Hoshizaki F1AFS Freezer, Single Section Upright, Full Stainless Door with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
33.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
One piece, full door length, extruded aluminum flush mount door handle

Summer Sale

Clearance

SKU: F1AFS

Hoshizaki F1AFS Freezer, Single Section Upright, Full Stainless Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
33.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
One piece, full door length, extruded aluminum flush mount door handle

Product Details for HOSHIZAKI F1AFS

Technical Details

Dimensions & weight

Weight	355 lbs.
Width	27.5 in.
Depth	33.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	395 lbs.
Total of Shipping Weight	395 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.25 kwh/day, Amperage: 8.46, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 1178 BTU/hr
Shipping Weight	355

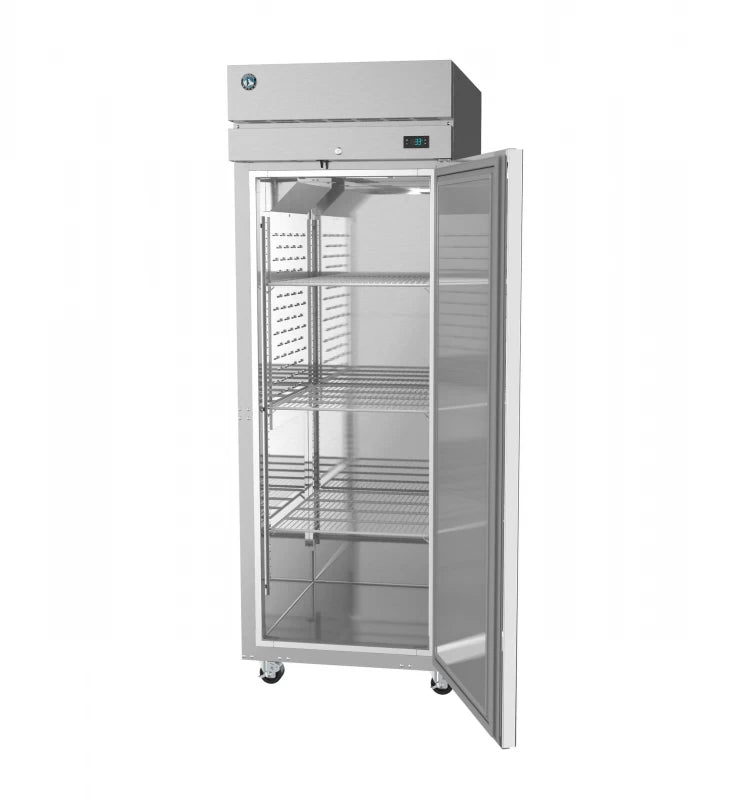

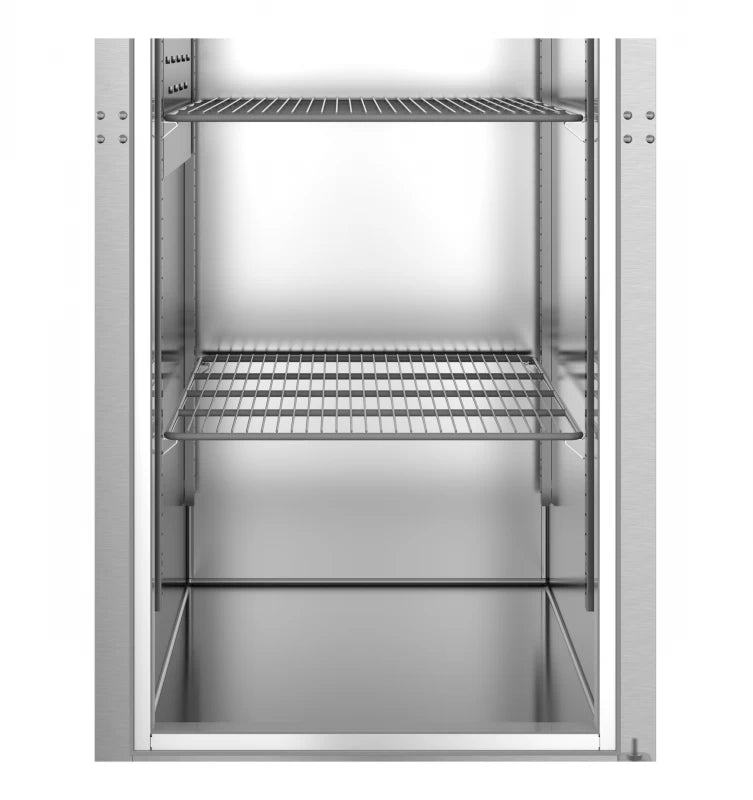

Storage Specs	Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 3

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The F1A-FS Steelheart Series Upright single section freezer with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 23.1 cubic feet
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
One piece, full door length, extruded aluminum flush mount door handle
Lockable Full Stainless Door

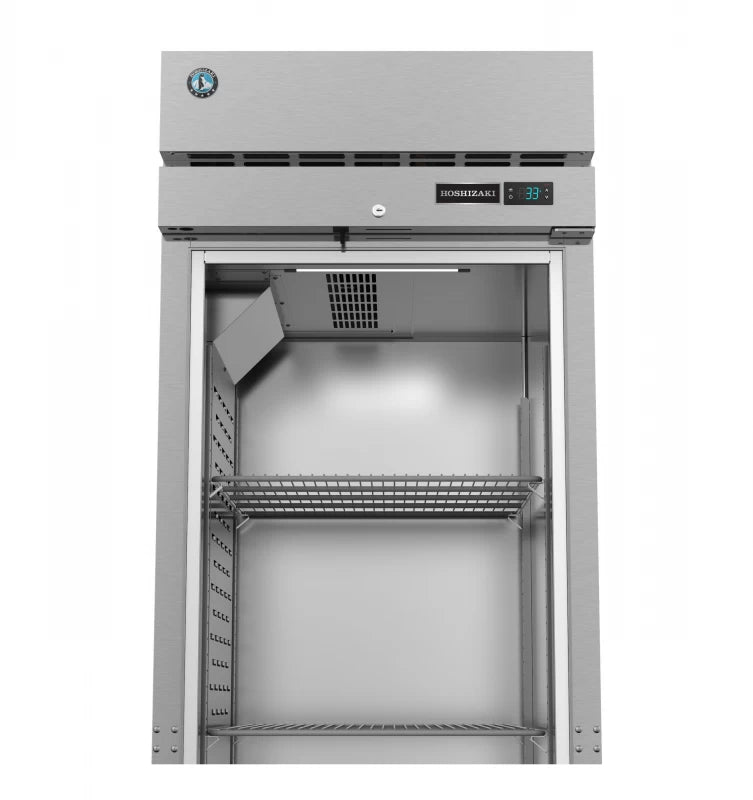

Interior LED light bar is mounted horizontally on the ceiling
R290 refrigerant
Nominal Compres. of 1425 BTU/hr at 3/4 HP
115v/60/1, 10 ft. cord and plug

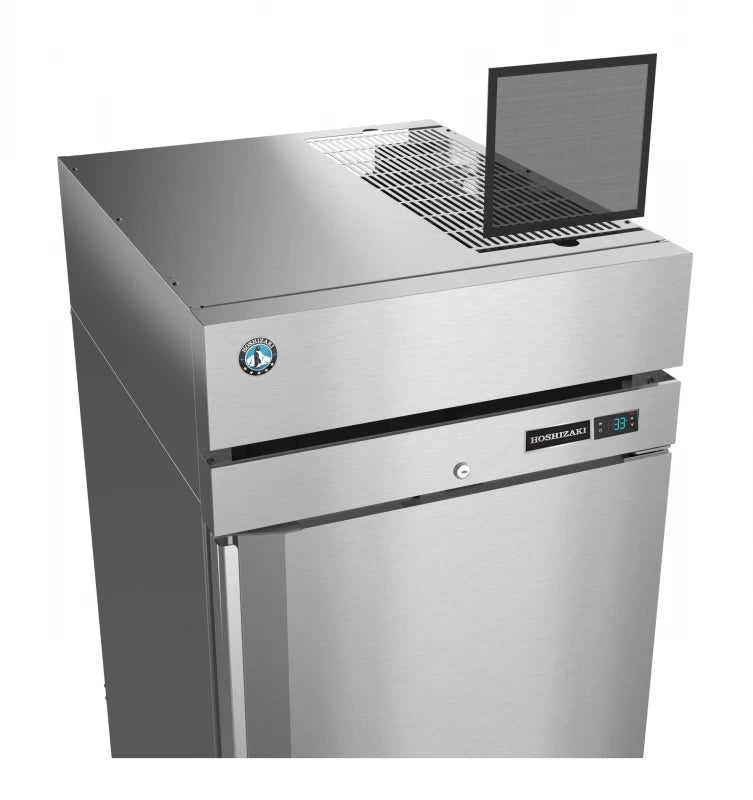

Top mounted energy efficient non-electric evaporation system

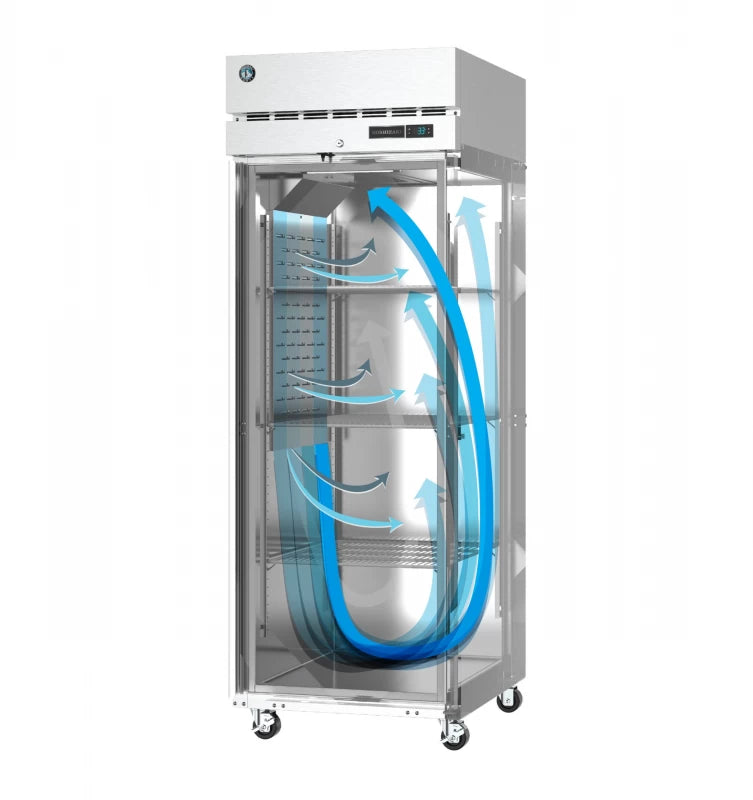

Unique “ducted” air distribution system
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
