SKU: F1002MRJ

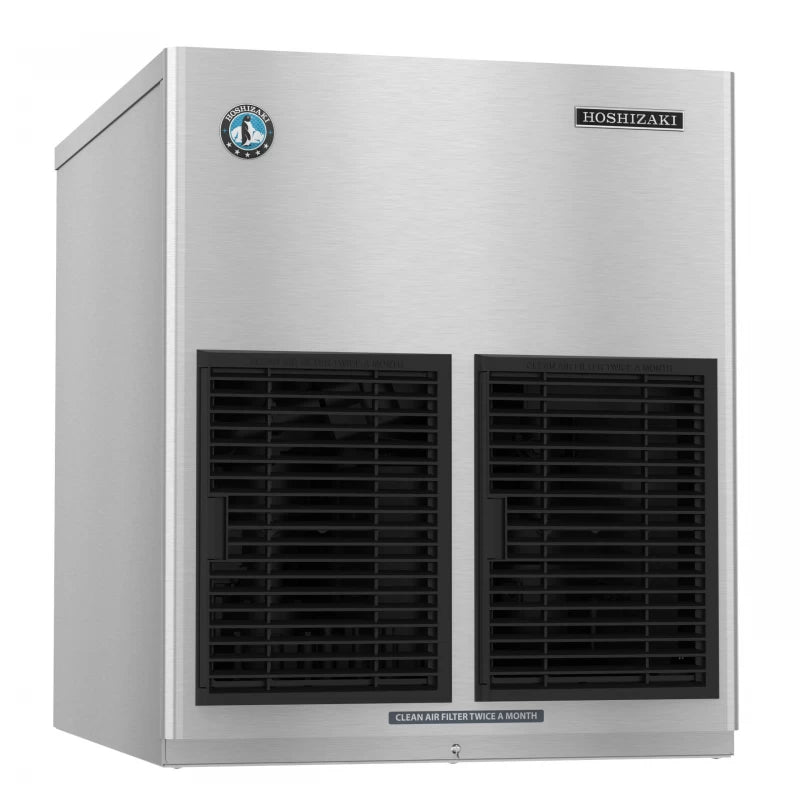

Hoshizaki F1002MRJ Flaker Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
25.938"
Type:
Ice Makers

About this product

Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
Up to 907 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice

Summer Sale

Clearance

SKU: F1002MRJ

Hoshizaki F1002MRJ Flaker Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
25.938"
Type:
Ice Makers

About this product

Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
Up to 907 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI F1002MRJ

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.23, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.51 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8600 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 3.3 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	205

Dimensions & weight

Weight	205 lbs.
Width	22 in.
Depth	27.375 in.
Height	25.938 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	245 lbs.
Total of Shipping Weight	245 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

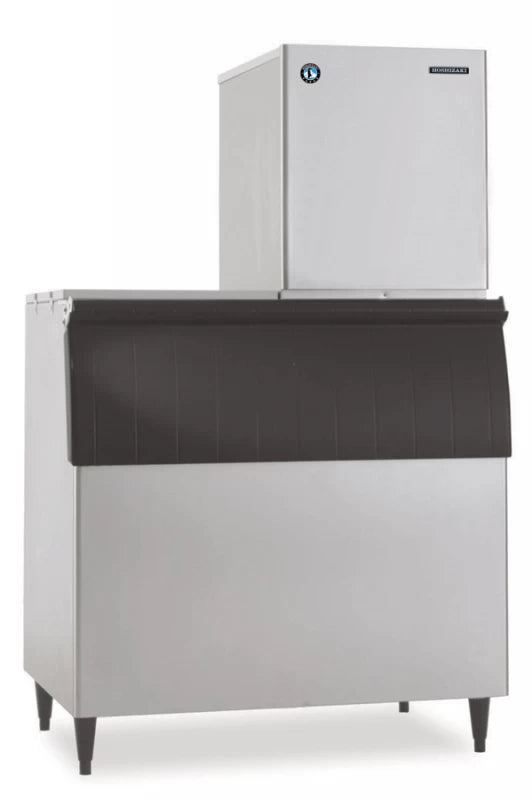

The F-1002MRJ is capable of producing approximately 907 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Remote-cooled with URC-5F icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MRJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.

Product Features

Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
Up to 907 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior
2 second rinse every hour to remove sediment
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
R-404A refrigerant (2 lbs. 3.3 oz. / 1000 g)
Water temperature range: 45 – 90°F
Ambient temperature range: 45 – 100°F
Water pressure: 10 – 113psig
15.23 amps (20 Amp Max fuse)
4.51 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Voltage range: 104 – 127V
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Three Years: Parts & Labor warranty on entire machine.
Discontinued – Replaced by F-1002MRJZ
Advanced CleanCycle24™ design
Heat Rejection:8600 BTU/hr
