SKU: F1002MLJ

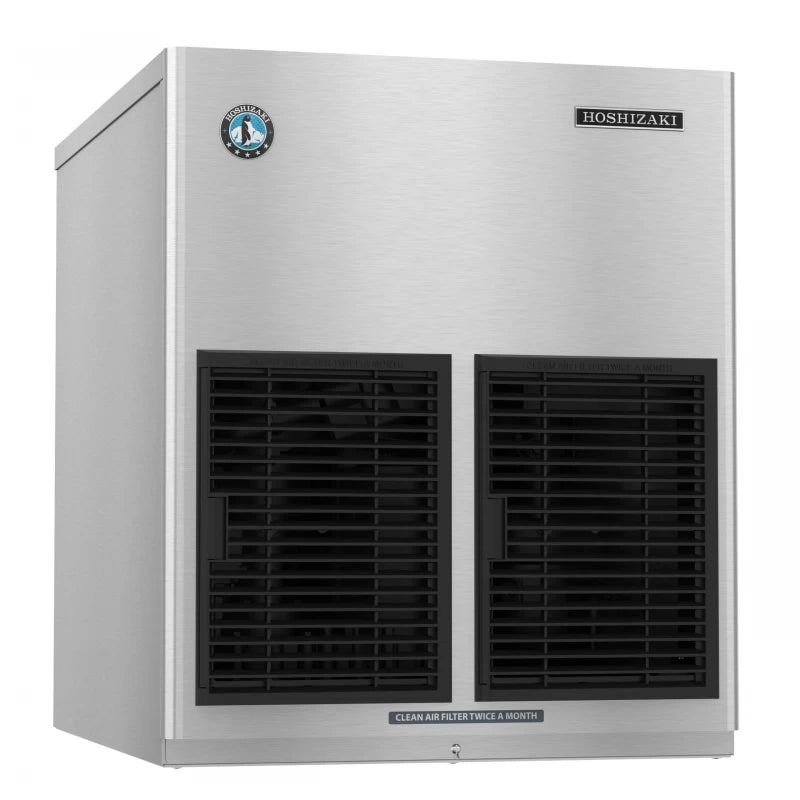

Hoshizaki F1002MLJ Flaker Icemaker, Low Side Remote-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
25.938"
Type:
Ice Machines

About this product

Durable stainless steel exterior
Up to 1028 lbs of ice produced per 24 hours
Produces flaked ice
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS

Summer Sale

Clearance

SKU: F1002MLJ

Hoshizaki F1002MLJ Flaker Icemaker, Low Side Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
25.938"
Type:
Ice Machines

About this product

Durable stainless steel exterior
Up to 1028 lbs of ice produced per 24 hours
Produces flaked ice
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Hoshizaki F1002MLJ

Technical Details

Product details

Utility Consumption	1.51 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1 , Amperage: 3.3, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8600 BTU/hr, Refrigerant Charge: R-407A, ( / )
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	150

Dimensions & weight

Weight	150 lbs.
Width	22 in.
Depth	27.375 in.
Height	25.938 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	190 lbs.
Total of Shipping Weight	190 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-1002MLJ is capable of producing approximately 1028 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Low Side Remote, Modular, Low-Side Series icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MLJ requires a Single phase, 115v/60/1, electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.

Product Features

Durable stainless steel exterior
Up to 1028 lbs of ice produced per 24 hours
Produces flaked ice
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
Mount 2 units side-by-side for 2x the ice production
2 second rinse every hour to remove sediment
R-407A refrigerant ( / )
1.51 kwh/100 lbs.@ 90/70
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
3.3 amps (15 Amp Max fuse)
Advanced CleanCycle24™ design
Heat Rejection:8600 BTU/hr
Single phase, 115v/60/1,
