SKU: EF1AFS

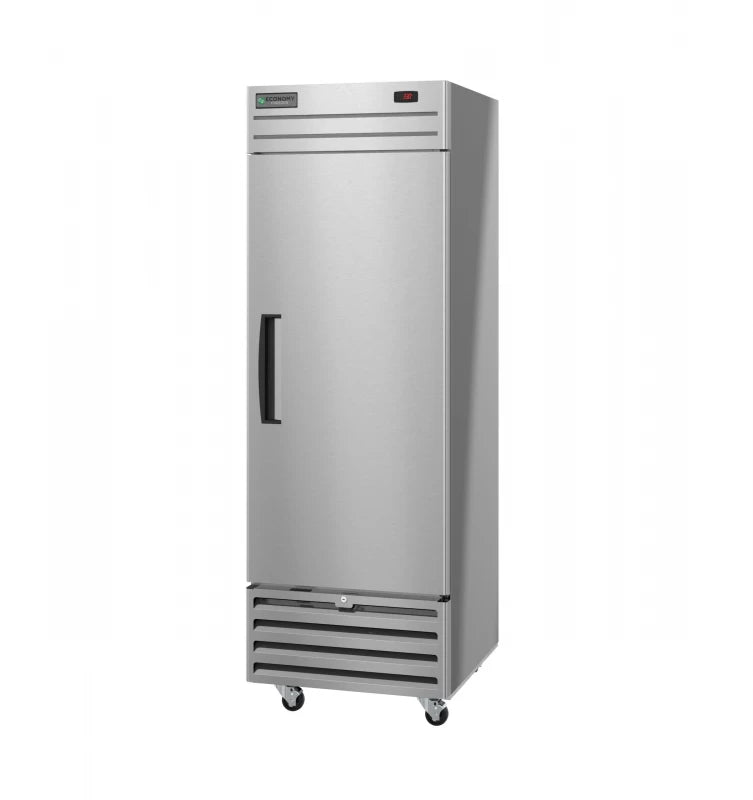

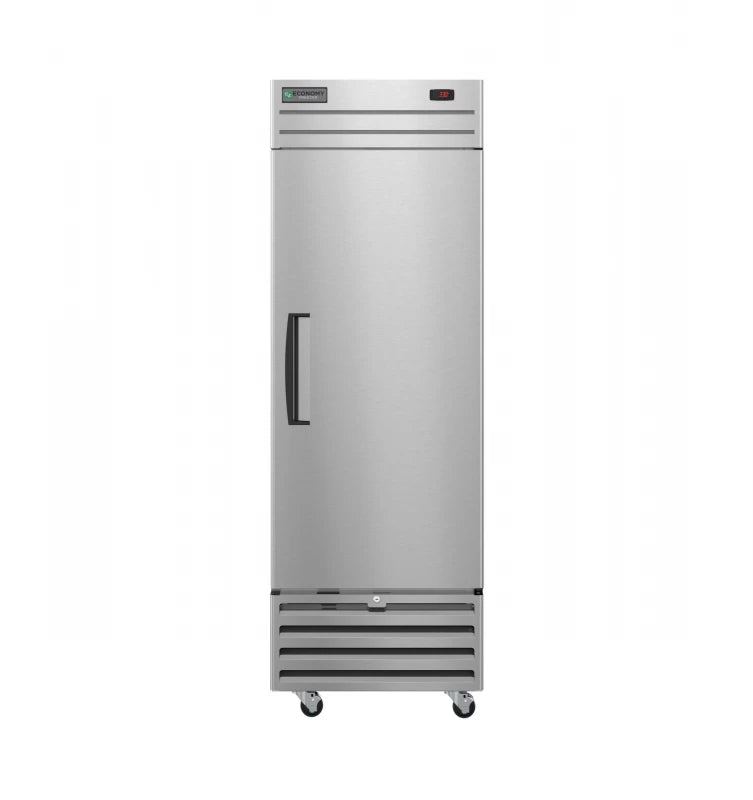

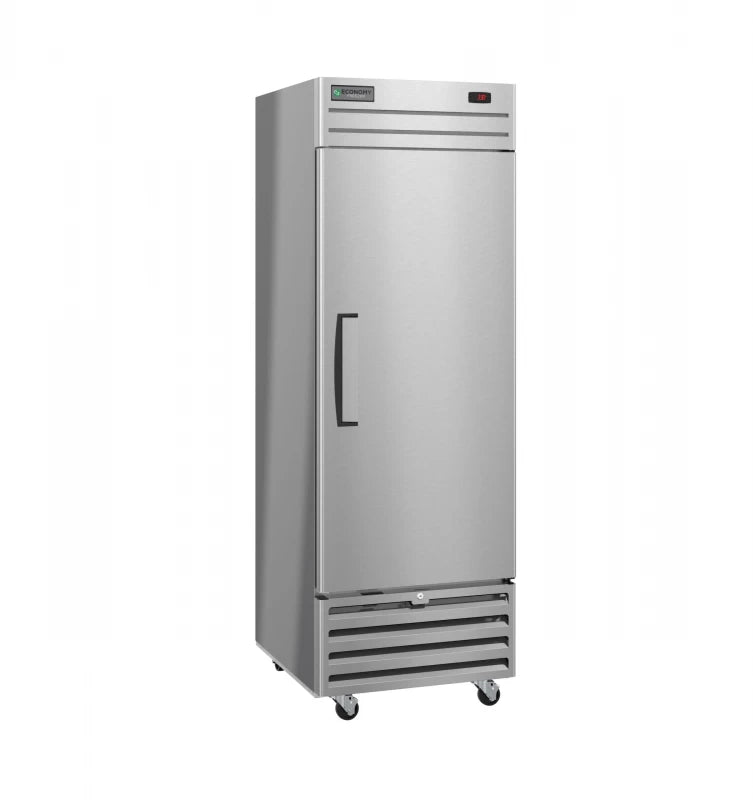

Hoshizaki EF1AFS Freezer, Single Section Upright, Full Stainless Door with Lock Stainless Steel

Quick Specification More details

Width:
27"
Depth:
29.63"
Height:
81.93"
Type:
Upright Freezers

About this product

Dimensions: 27″ W x 29.63″ D x 81.93″ H
Net capacity of 17.74 cubic feet
Stainless steel exterior door(s) and interior floor with aluminum sides, rear, and top)
Energy efficient heated condensate removal

Summer Sale

Clearance

SKU: EF1AFS

Hoshizaki EF1AFS Freezer, Single Section Upright, Full Stainless Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27"
Depth:
29.63"
Height:
81.93"
Type:
Upright Freezers

About this product

Dimensions: 27″ W x 29.63″ D x 81.93″ H
Net capacity of 17.74 cubic feet
Stainless steel exterior door(s) and interior floor with aluminum sides, rear, and top)
Energy efficient heated condensate removal

Product Details for Hoshizaki EF1AFS

Technical Details

Dimensions & weight

Weight	279 lbs.
Width	27 in.
Depth	29.63 in.
Height	81.93 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	319 lbs.
Total of Shipping Weight	319 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 4.62 kwh/day, Amperage: 3.2, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 103 – 127V, Control Setpoint Range: -10 – 0°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 1399 BTU/hr at 1/3 HP, Heat Rejection: BTU/hr
Shipping Weight	279
Storage Specs	Nominal storage capacity: 17.8 ft3, Interior storage capacity: 17.74 ft3, Door opening: 22.25″ W x 52.1″ H, Depth with door fully extended: 55.38″ D, Shelves included: 3

Warranty

Parts	2 Years
Labor	2 Years

Description

The EF1A-FS Economy Series upright single section freezer with a full stainless door is ready to get the job done. The dependable 1/3 HP motor that powers the compressor in the bottom of this unit provides the cabinet with a continuous stream of cold air.

Product Features

Dimensions: 27″ W x 29.63″ D x 81.93″ H
Net capacity of 17.74 cubic feet
Stainless steel exterior door(s) and interior floor with aluminum sides, rear, and top)
Energy efficient heated condensate removal
Built-in pocket door handle with black plastic trim
Energy efficient interior LED light
Time initiated automatic defrost
Self-closing, lockable full stainless door is field reversible (no kit req’d)
Aluminum shelf supports
Energy efficient interior LED light bar
Solid state digital controller with temperature alarms and LED display (°F or °C)
R290 refrigerant
(4) 4″ Stem Casters (2 with brakes) are standard
Includes 3 epoxy coated wire coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
Optional kits: Additional epoxy shelf
Nominal Compres. of 1399 BTU/hr at 1/3 HP
115v/60/1, 9 ft. cord and plug
Shipping Crate: 31.5″ L x 28.75″ D x 84″ H at 279 lbs
Five Years compressor warranty, Two Years parts and labor warranty
ENERGY STAR® Qualified
