SKU: DKM500BWH

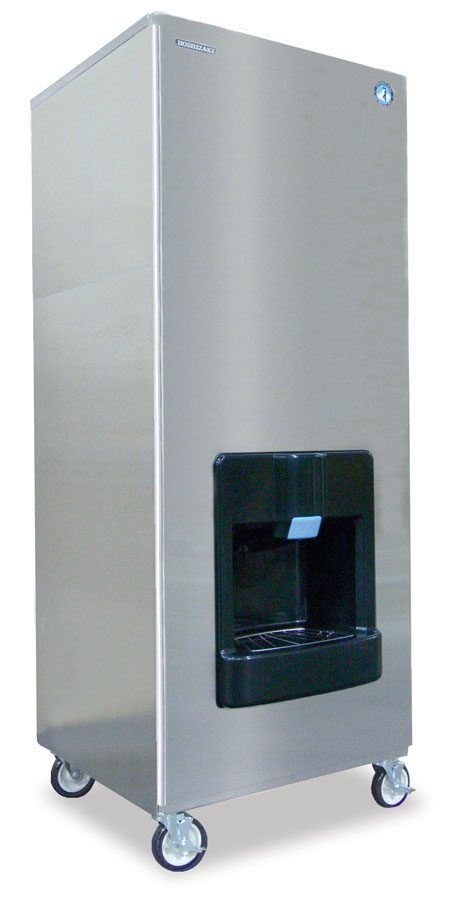

Hoshizaki DKM500BWH Crescent Cuber Icemaker, Water-cooled, Built in Storage Bin Stainless Steel

Quick Specification More details

Width:
30"
Depth:
28"
Height:
77"
Type:
Ice Makers

About this product

Discontinued – Replaced by DKM-500BWJ
Dimensions: 30″ W x 28″ D x 77″ H
Up to 448 lbs of ice produced per 24 hours
Up to 140 lbs of built-in storage capacity (ft3)

Summer Sale

Clearance

SKU: DKM500BWH

Hoshizaki DKM500BWH Crescent Cuber Icemaker, Water-cooled, Built in Storage Bin Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
28"
Height:
77"
Type:
Ice Makers

About this product

Discontinued – Replaced by DKM-500BWJ
Dimensions: 30″ W x 28″ D x 77″ H
Up to 448 lbs of ice produced per 24 hours
Up to 140 lbs of built-in storage capacity (ft3)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI DKM500BWH

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1 , Amperage: 10.7, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 2 oz. / 500 g
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT x2 Drain, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubin
Shipping Weight	372
Utility Consumption	5.2 kWh per 100 lbs @ 90/70, 29.9 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	30 in.
Depth	28 in.
Height	77 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The DKM-500BWH is capable of producing approximately 448 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to 140 lbs of insulated storage to ensure you always have enough ice on hand! This commercial Water-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to longer unit life span. The DKM-500BWH requires a Single phase, 115v/60/1 electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.

Product Features

Discontinued – Replaced by DKM-500BWJ
Dimensions: 30″ W x 28″ D x 77″ H
Up to 448 lbs of ice produced per 24 hours
Up to 140 lbs of built-in storage capacity (ft3)
Push button operated, 13 lbs of crescent cube icemin
Durable, attractive one piece stainless steel exterior
Push button operated, 13 lbs of icemin
Ice dispensing height is ADA compliant
CycleSaver™ design
R-404A refrigerant (1 lbs. 2 oz. / 500 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
10.7 amps (20 Amp Max fuse)
5.2 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser.
