SKU: DKM500BAH

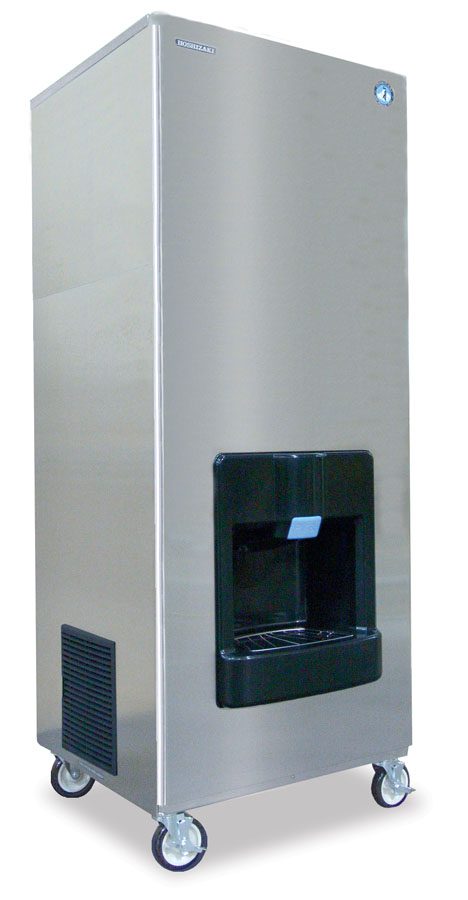

Hoshizaki DKM500BAH Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

Quick Specification More details

  • Width:
    30"
  • Depth:
    28"
  • Height:
    77"
  • Type:
    Ice Makers

About this product

  • Discontinued – Replaced by DKM-500BAJ
  • Dimensions: 30″ W x 28″ D x 77″ H
  • Up to 476 lbs of ice produced per 24 hours
  • Up to 140 lbs of built-in storage capacity (ft3)
Summer Sale
Clearance

SKU: DKM500BAH

Hoshizaki DKM500BAH Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    30"
  • Depth:
    28"
  • Height:
    77"
  • Type:
    Ice Makers

About this product

  • Discontinued – Replaced by DKM-500BAJ
  • Dimensions: 30″ W x 28″ D x 77″ H
  • Up to 476 lbs of ice produced per 24 hours
  • Up to 140 lbs of built-in storage capacity (ft3)
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Hoshizaki DKM500BAH

Technical Details

Product details
Electrical Specs Single phase, 115v/60/1 , Amperage: 13.5, Max Fuse/HACR Breaker: 20 A
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12.2 oz. / 80
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT x2 Drain, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight 410
Utility Consumption 6.53 kWh per 100 lbs @ 90/70, 22.4 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight
Width 30 in.
Depth 28 in.
Height 77 in.

Warranty
Parts 3 Years
Labor 3 Years

Description

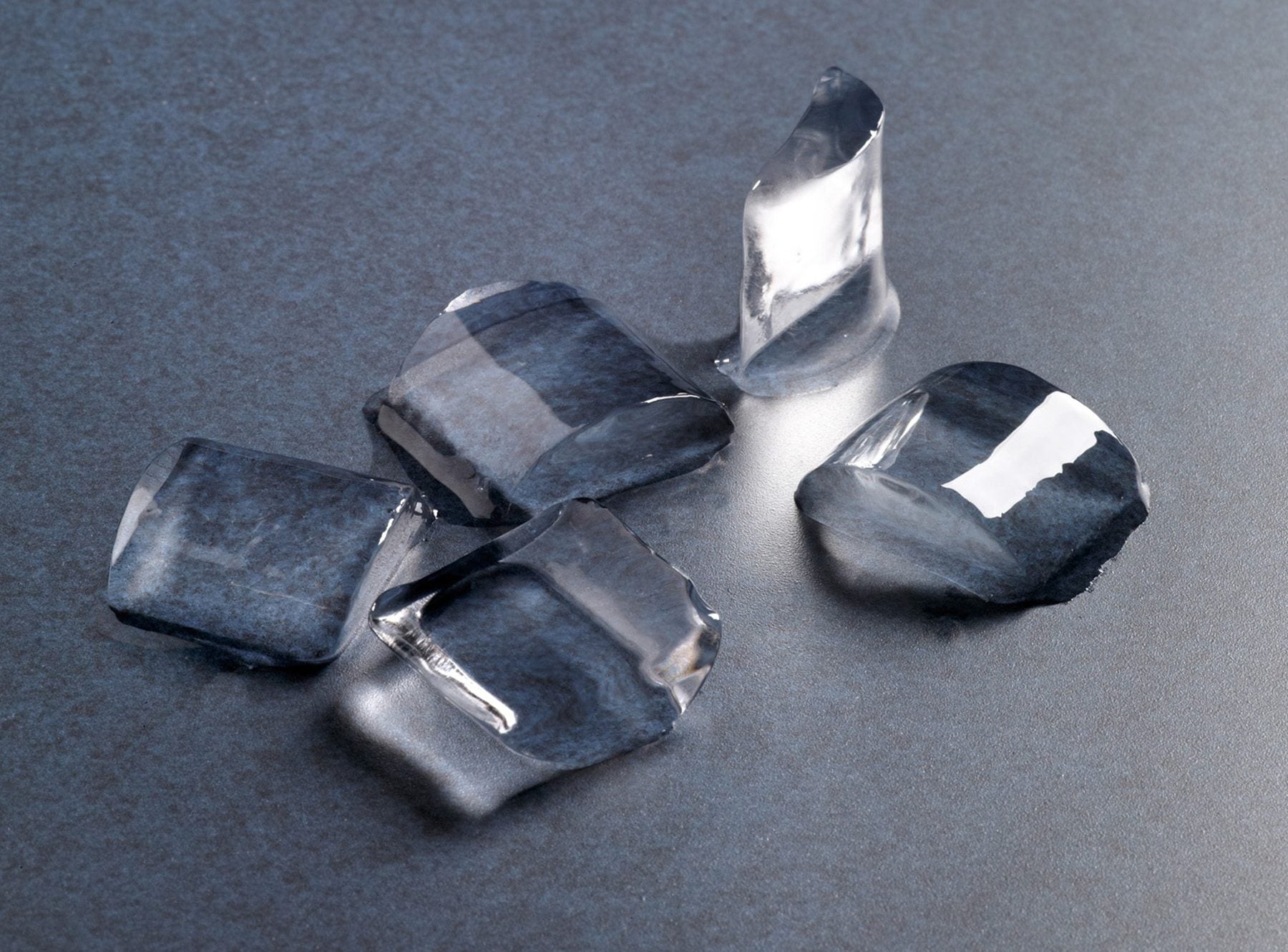

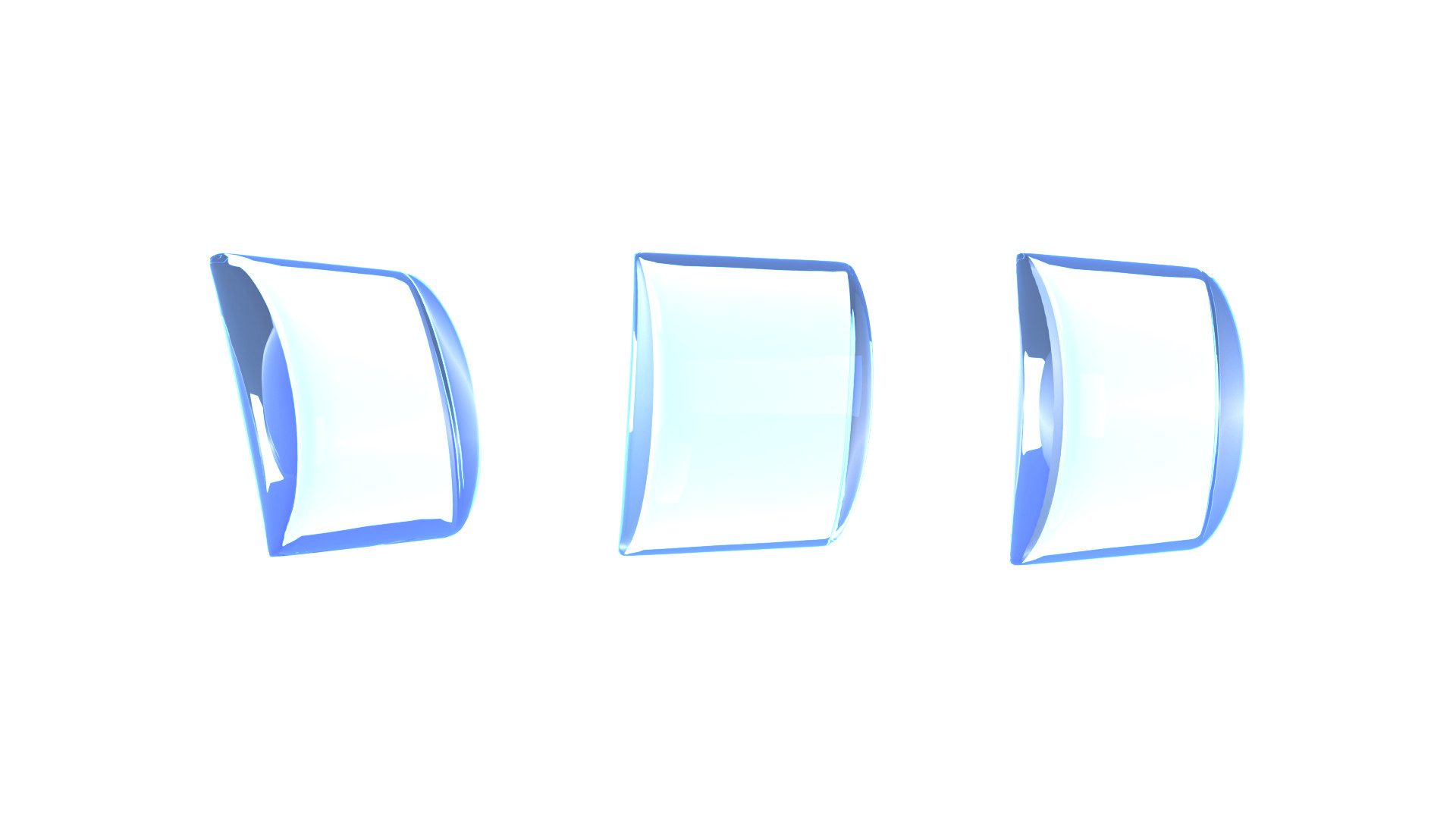

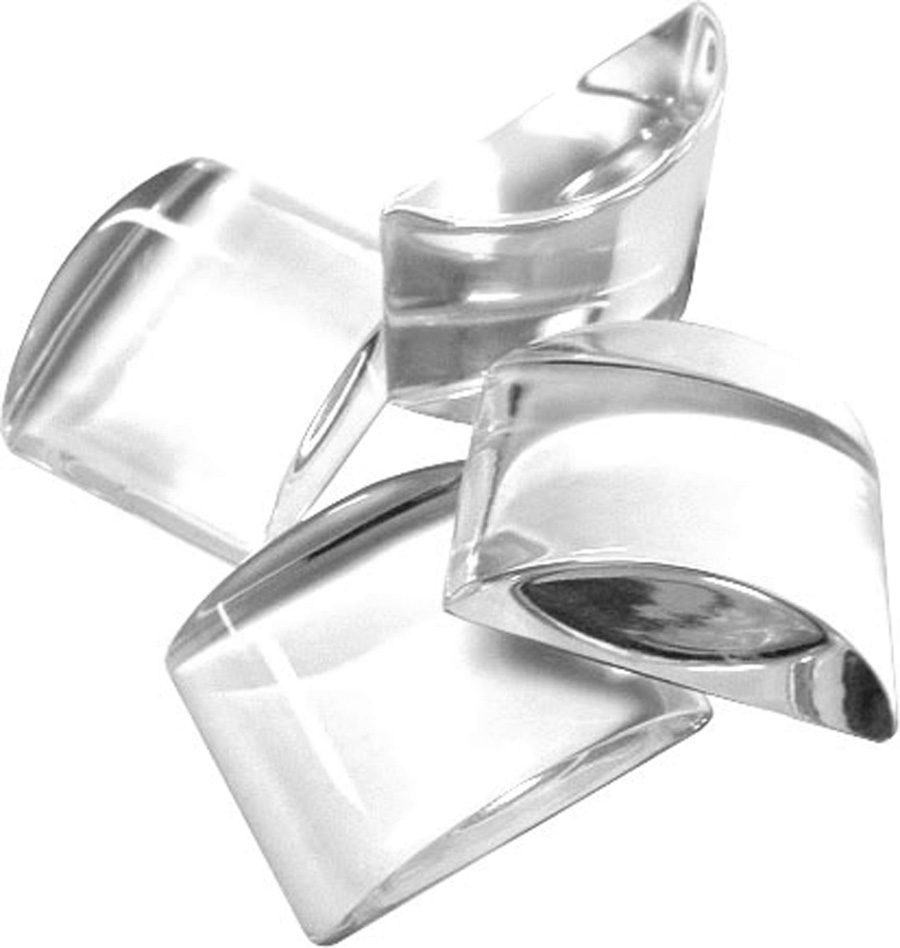

The DKM-500BAH is capable of producing approximately 476 lbs of Crescent Cube nugget-style ice cubes per day, The built-in storage bin will hold up to 140 lbs of ice* at a time. This Air-cooled icemaker has an Ice dispensing height is ADA compliant. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CycleSaver™ design. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Crescent Cube Serenity Series. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.


Product Features

  • Discontinued – Replaced by DKM-500BAJ
  • Dimensions: 30″ W x 28″ D x 77″ H
  • Up to 476 lbs of ice produced per 24 hours
  • Up to 140 lbs of built-in storage capacity (ft3)
  • Push button operated, 13 lbs of crescent cube icemin
  • Durable, attractive one piece stainless steel exterior
  • Push button operated, 13 lbs of icemin
  • Ice dispensing height is ADA compliant
  • CycleSaver™ design
  • R-404A refrigerant (1 lbs. 12.2 oz. / 800 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 13.5 amps (20 Amp Max fuse)
  • 6.53 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser.
