SKU: DD59

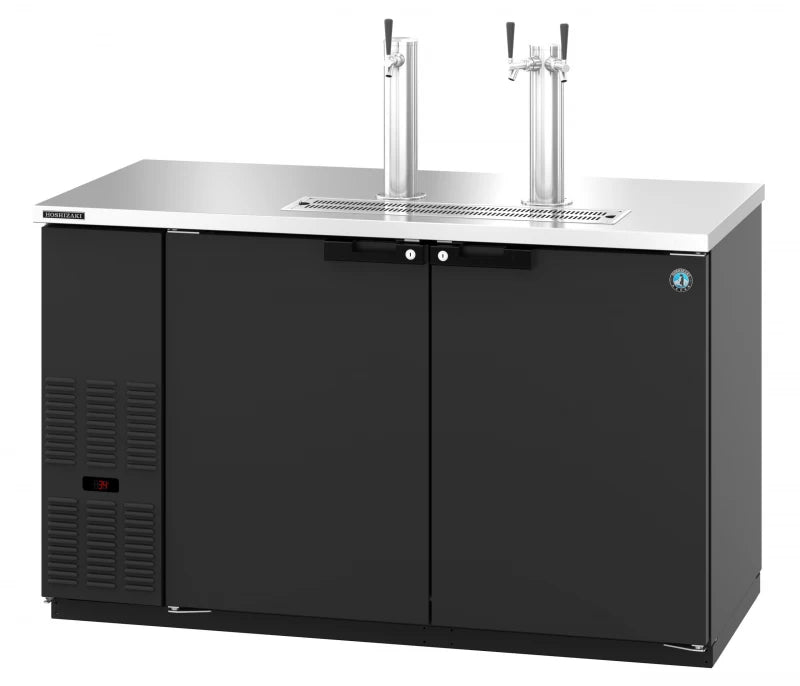

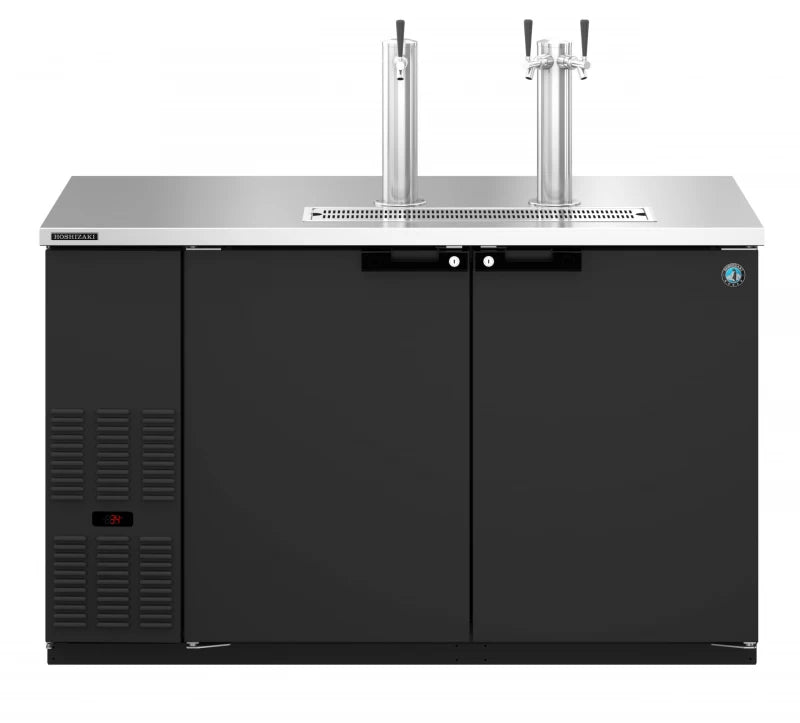

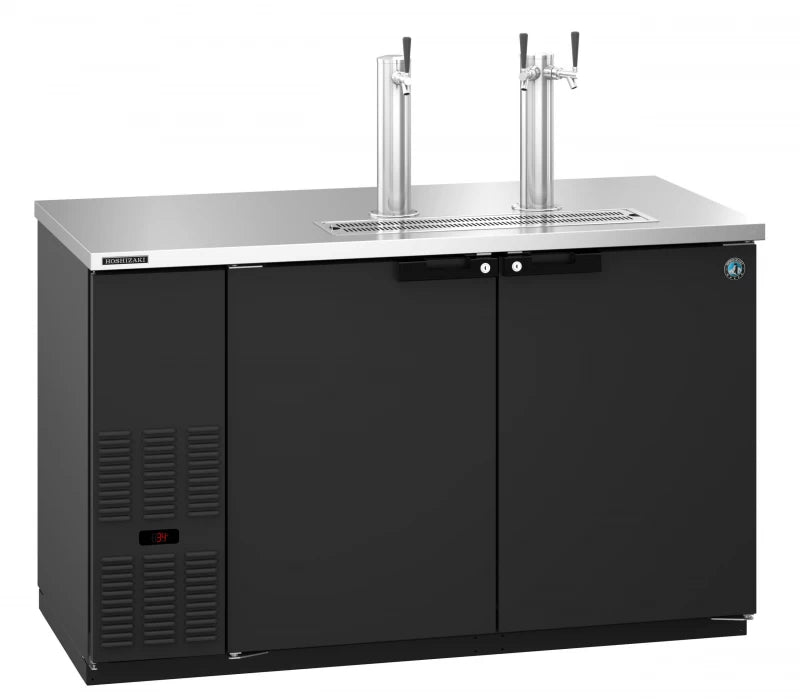

Hoshizaki DD59 Refrigerator, Two Section, Black Vinyl Back Bar Direct Draw, Solid Doors

Quick Specification More details

Width:
59.5"
Depth:
29"
Height:
36.88"
Type:
Specialty Refrigerators

About this product

Net capacity of 18.45 cubic feet
Nominal Compres. of N/A BTU/hr at 1/3 HP

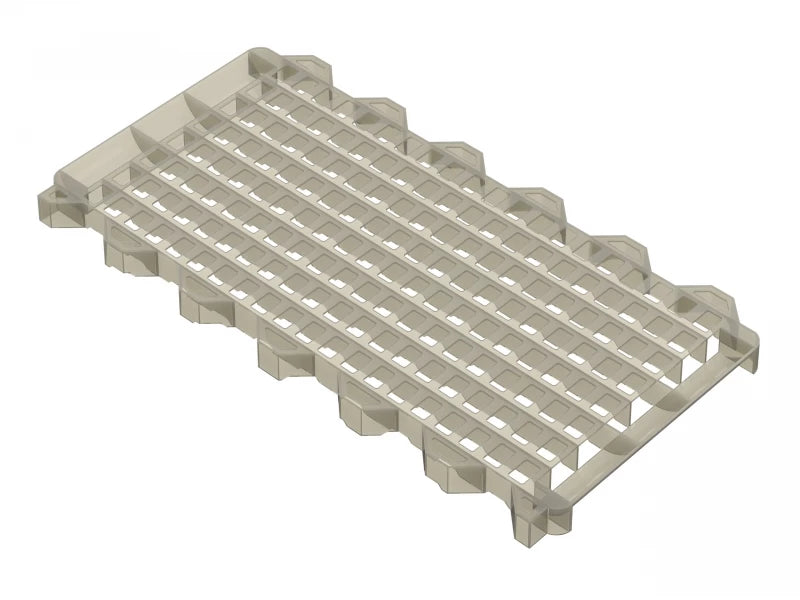

Includes (3) keg cushions to protect floor and allow air to circulate below kegs
One piece, vinyl coated steel handle with built-in lock

Summer Sale

Clearance

SKU: DD59

Hoshizaki DD59 Refrigerator, Two Section, Black Vinyl Back Bar Direct Draw, Solid Doors

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
59.5"
Depth:
29"
Height:
36.88"
Type:
Specialty Refrigerators

About this product

Net capacity of 18.45 cubic feet
Nominal Compres. of N/A BTU/hr at 1/3 HP
Includes (3) keg cushions to protect floor and allow air to circulate below kegs
One piece, vinyl coated steel handle with built-in lock

Product Details for HOSHIZAKI DD59

Technical Details

Dimensions & weight

Weight	345 lbs.
Width	59.5 in.
Depth	29 in.
Height	36.88 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	385 lbs.
Total of Shipping Weight	385 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: N/A Watts, Amperage: 2.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 38°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of N/A BTU/hr at 1/3 HP, Heat Rejection: 2345 BTU/hr
Shipping Weight	345
Storage Specs	Interior Storage Capacity: 18.45ft3, Door Opening: 59.5″ W x 36.88″ H , Depth with Door fully extended: 51.13″ D, Keg Cushions Included: 3

Warranty

Parts	3 Years
Labor	3 Years

Description

The DD59 Back Bar Direct Draw is a Two Section Refrigerator with a solid door that has all the right features. It boasts an impressive Net capacity of 18.45 cubic feet. The durable 1/3 HP motor that powers the compressor at the side of this unit that distributes air from left to right rather than from back to front. Side to side circular airflow ensures ice-cold products even when doors are opened regularly. Engineered to maintain food safe temperatures in +100°F kitchens. Plus the self-closing doors come standard with barrel locks.

Product Features

Net capacity of 18.45 cubic feet
Nominal Compres. of N/A BTU/hr at 1/3 HP
Includes (3) keg cushions to protect floor and allow air to circulate below kegs
One piece, vinyl coated steel handle with built-in lock
(2) polished stainless steel insulated towers with (3) plated brass faucets
Self-closing doors come standard with barrel locks
Front breathing, side mount refrigeration that distributes air from left to right rather than from back to front
Black Vinyl exterior front, sides and rear, plus a 18 gauge stainless steel top
Stainless steel interior with LED lights
R290 refrigerant
Thick stainless steel thresholds protect door frames when loading and unloading cabinet
Fits: (3) 1/2 Barrels (Keg)
115v/60/1, 8 ft. cord and plug
Cabinet fits: (2) 1/2 barrels and (1) 1/4 barrel, or (6) slim 1/4 barrels, or (8) 1/6 barrels, or (1) 1/2 barrel and (1) slim 1/4 barrel and (3) 1/6 barrels
Five Years compressor warranty, Three Years parts and labor warranty
Automatic “off cycle” defrost cycle
