Product Details for HOSHIZAKI DD24S

Technical Details

Dimensions & weight

Weight	175 lbs.
Width	24.88 in.
Depth	30 in.
Height	39.38 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	215 lbs.
Total of Shipping Weight	215 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.32 Watts, Amperage: 1.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 38°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 1056 BTU/hr at 1/6 HP, Heat Rejection: 1056 BTU/hr
Shipping Weight	175
Storage Specs	Interior Storage Capacity: 7.46ft3, Door Opening: 24.88″ W x 39.38″ H , Depth with Door fully extended: 53.625″ D, Keg Cushions Included: 1

Warranty

Parts	3 Years
Labor	3 Years

Description

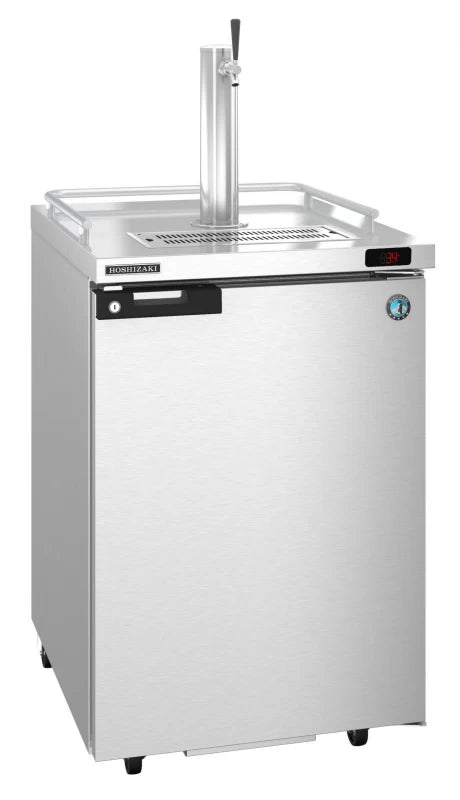

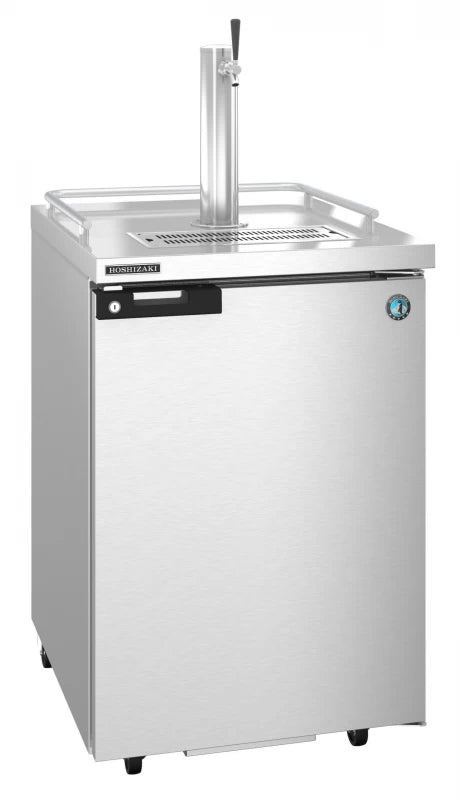

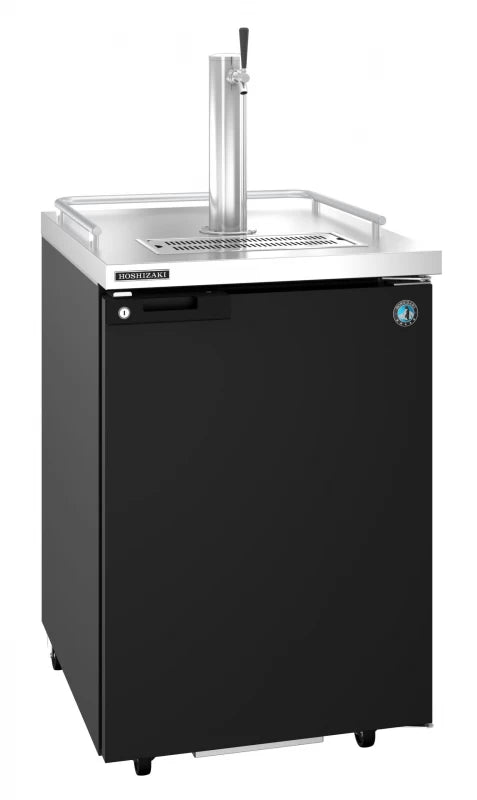

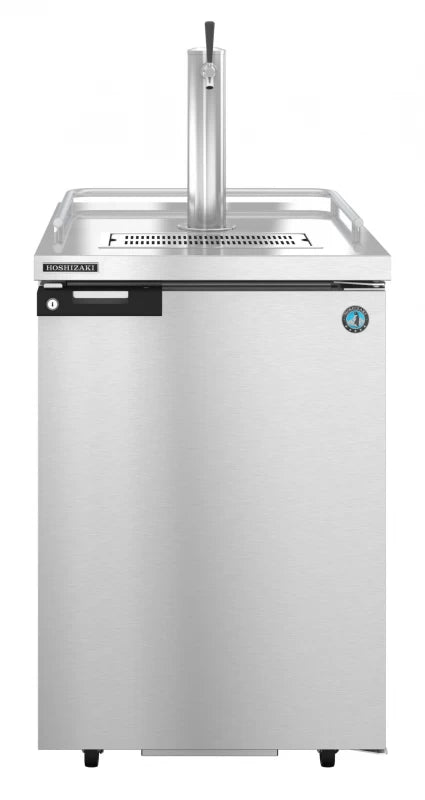

The DD24-S Back Bar Direct Draw is a Single Section Refrigerator with a Solid Door is the perfect portable kegreator for any operation. It boasts an impressive net capacity of 7.46 cubic feet. The durable 1/6 HP motor that powers the compressor in the back of this unit ensures a free flowing air system throughout the cabinet and keeps the keg(s) cold. Engineered to maintain food safe temperatures in +100°F kitchens. Plus the lockable swing door is insulated with environmentally friendly, cfc free foamed in place polyurethane.

Product Features

Nominal Compres. of 1056 BTU/hr at 1/6 HP
Net capacity of 7.46 cubic feet
One piece, vinyl coated steel handle with built-in lock

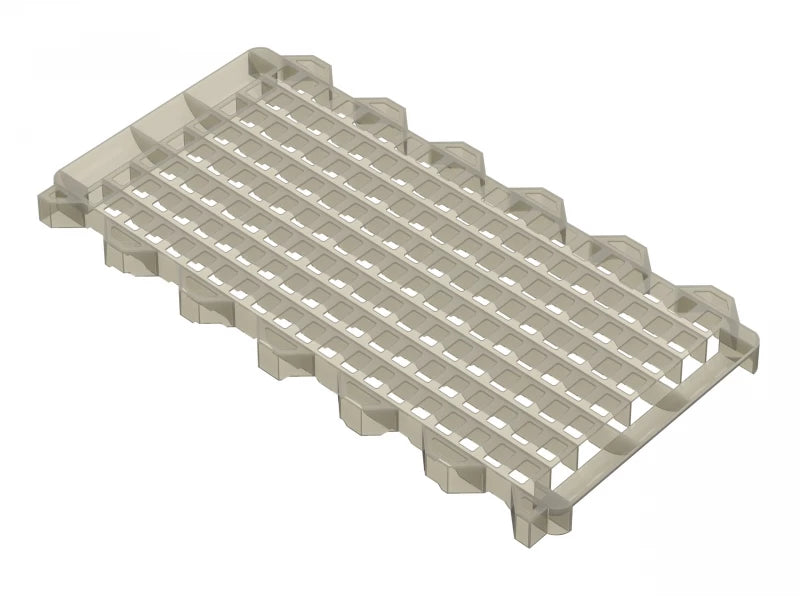

Includes (1) keg cushion to protect floor and allow air to circulate below kegs
(1) polished stainless steel insulated tower with (1) plated brass faucet
Lockable swing door is insulated with environmentally friendly, CFC free foamed in place polyurethane
Rear breathing with internal drain, internal CO2 chain harness, and knockouts for gas line of for plumbing drain to outside of unit
Stainless Steel exterior front, sides and rear, plus a 18 gauge stainless steel top
R290 refrigerant
Stainless steel interior with reinforced threshold protects cabinet from loading/unloading keg damage
Includes 1 keg cushion
Brushed aluminum glass rail for mug storage on top
Made to Order
115v/60/1, 8 ft. cord and plug
Five Years compressor warranty, Three Years parts and labor warranty
Cabinet fits: (1) 1/2 barrel, or (1) 1/4 barrel, or (2) slim 1/4 barrels, or (4) 1/6 barrels
Automatic “off cycle” defrost cycle
