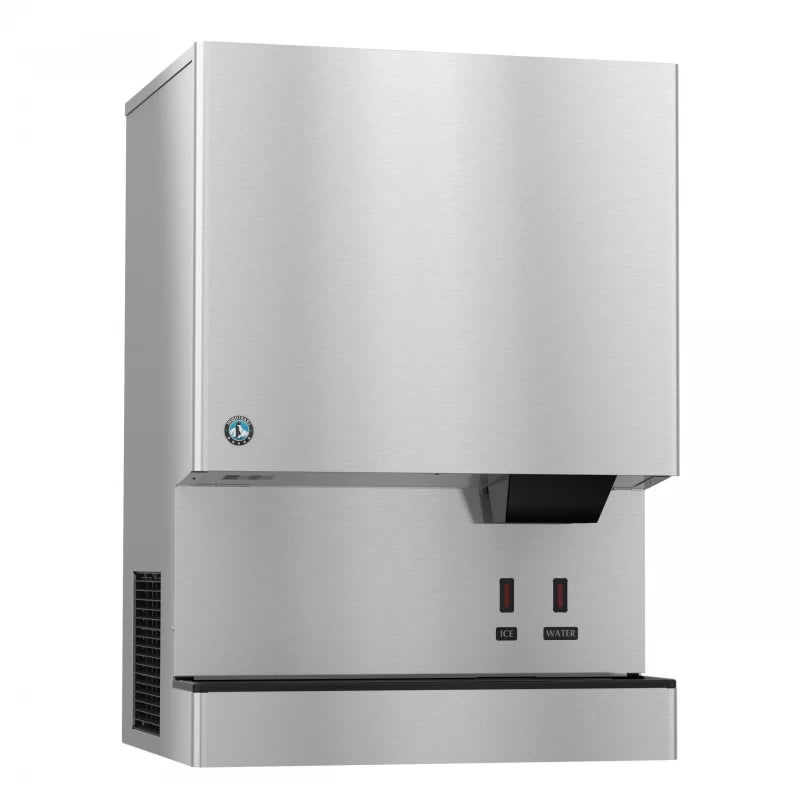

Hoshizaki DCM752BAHOS Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin Stainless Steel
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for Hoshizaki DCM752BAHOS
Technical Details
Product details
| Electrical Specs | Single phase, 115v/60/1 , Amperage: 13, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 5.1 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 6900 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10 oz. / |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Source | Calculation |
Dimensions & weight
| Width | 34.063 in. |
| Depth | 28.5 in. |
| Height | 48.063 in. |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
Description
The DCM-752BAH-OS is capable of producing approximately 708 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 95 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Product Features
- Up to 708 lbs of ice produced per 24 hours
- Durable stainless steel exterior
- Place on countertop or optional stand: SD-700, SD-750
- LED remote sensor for hands-free operation with opaque containers
- Up to 95 lbs of built-in storage capacity (3.2ft3)
- Produces small cubelet nugget-style ice
- R-404A refrigerant (1 lbs. 10 oz. / 737 g)
- 13 amps (20 Amp Max fuse)
- 5.1 kwh/100 lbs.@ 90/70
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
- Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
- Heat Rejection:6900 BTU/hr
- Single phase, 115v/60/1
- Discontinued – Replaced by DCM-700BAK-OS
