SKU: DCM270BAHOS

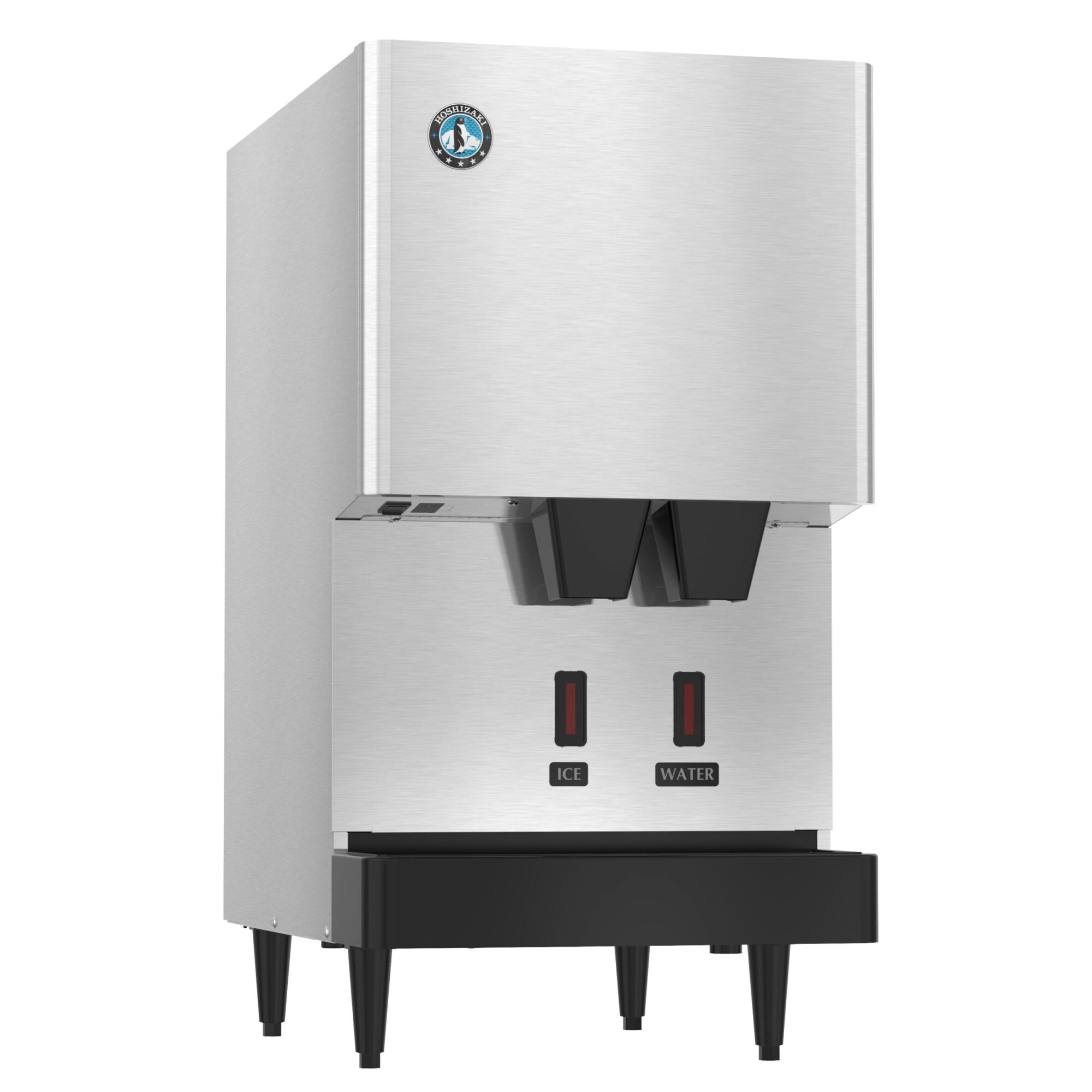

Hoshizaki DCM270BAHOS Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin Stainless Steel

Quick Specification More details

Width:
16.563"
Depth:
24.125"
Height:
31.688"
Type:
Ice Makers

About this product

Discontinued – Replaced by DCM-271BAH-OS
Dimensions: 16-9/16″ W x 24-1/8″ D x 31-11/16″ H
Up to 288 lbs of ice produced per 24 hours
Up to 10 lbs of built-in storage capacity (0.3ft3)

Summer Sale

Clearance

SKU: DCM270BAHOS

Hoshizaki DCM270BAHOS Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
16.563"
Depth:
24.125"
Height:
31.688"
Type:
Ice Makers

About this product

Discontinued – Replaced by DCM-271BAH-OS
Dimensions: 16-9/16″ W x 24-1/8″ D x 31-11/16″ H
Up to 288 lbs of ice produced per 24 hours
Up to 10 lbs of built-in storage capacity (0.3ft3)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki DCM270BAHOS

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3532 BTU/hr, Refrigerant Charge: R-404A, (14.8 oz. / 420
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	160
Utility Consumption	7.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight

Width	16.563 in.
Depth	24.125 in.
Height	31.688 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The DCM-270BAH-OS is capable of producing approximately 288 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Product Features

Discontinued – Replaced by DCM-271BAH-OS
Dimensions: 16-9/16″ W x 24-1/8″ D x 31-11/16″ H
Up to 288 lbs of ice produced per 24 hours
Up to 10 lbs of built-in storage capacity (0.3ft3)

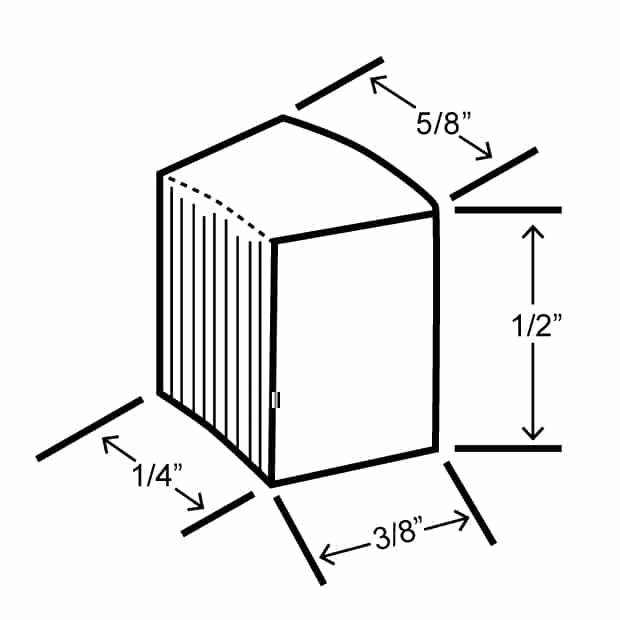

Produces mini cubelet nugget-style ice
Durable stainless steel exterior

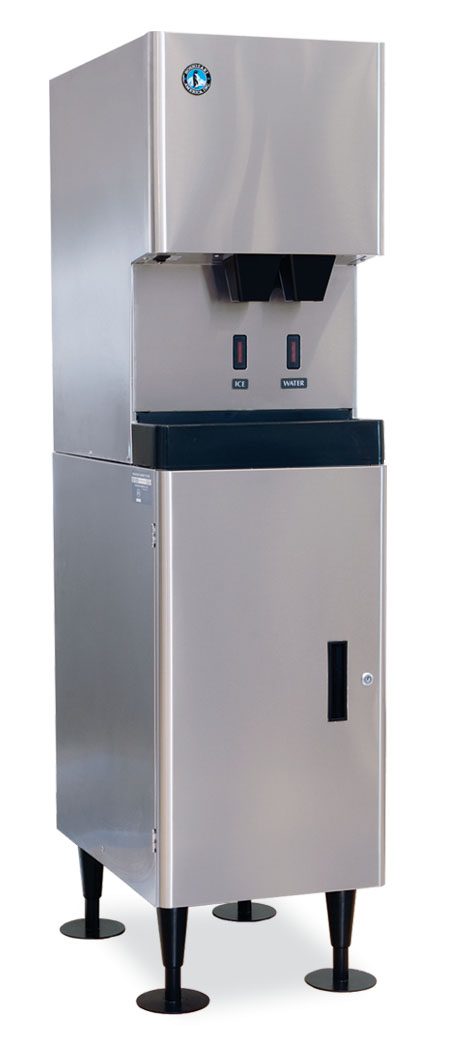

Place on countertop or optional stand: SD-270
LED remote sensor for hands-free operation with opaque containers
CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
R-404A refrigerant (14.8 oz. / 420 g)
Heat Rejection:3532 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
8.5 amps (15 Amp Max fuse)
7.3 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
