SKU: DCM270BAH

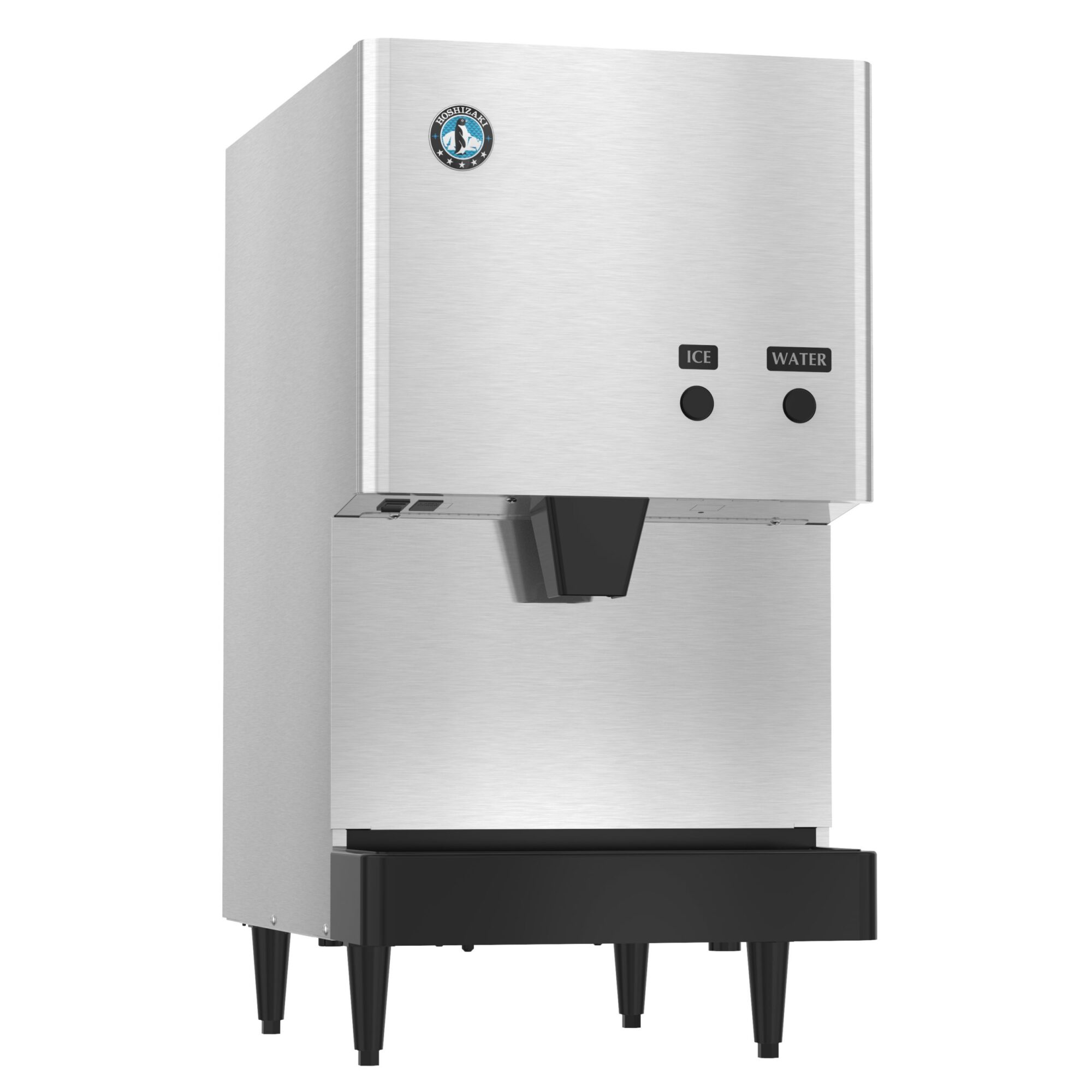

HOSHIZAKI DCM270BAH DCM-270BAH Cubelet Ice and Water Dispenser, Air-cooled, Built in Storage Bin

Name: HOSHIZAKI DCM270BAH DCM-270BAH Cubelet Ice and Water Dispenser, Air-cooled, Built in Storage Bin
Brand: HOSHIZAKI
SKU: DCM270BAH
Availability: OutOfStock

Quick Specification More details

Width:
16.56 Inch
Depth:
24.13 Inch
Height:
31.69 Inch
Type:
Ice Makers

About this product

Discontinued - Replaced by DCM-271BAH
Dimensions: 16-9/16" W x 24-1/8" D x 31-11/16" H
Up to 282 lbs of ice produced per 24 hours
Up to 10 lbs of built-in storage capacity (0.3ft3)

SKU: DCM270BAH

HOSHIZAKI DCM270BAH DCM-270BAH Cubelet Ice and Water Dispenser, Air-cooled, Built in Storage Bin

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
16.56 Inch
Depth:
24.13 Inch
Height:
31.69 Inch
Type:
Ice Makers

About this product

Discontinued - Replaced by DCM-271BAH
Dimensions: 16-9/16" W x 24-1/8" D x 31-11/16" H
Up to 282 lbs of ice produced per 24 hours
Up to 10 lbs of built-in storage capacity (0.3ft3)

Product Details for HOSHIZAKI DCM270BAH

Technical Details

Features

Discontinued - Replaced by DCM-271BAH	Yes
Dimensions: 16-9/16" W x 24-1/8" D x 31-11/16" H	Yes
Up to 282 lbs of ice produced per 24 hours	Yes
Up to 10 lbs of built-in storage capacity (0.3ft3)	Yes

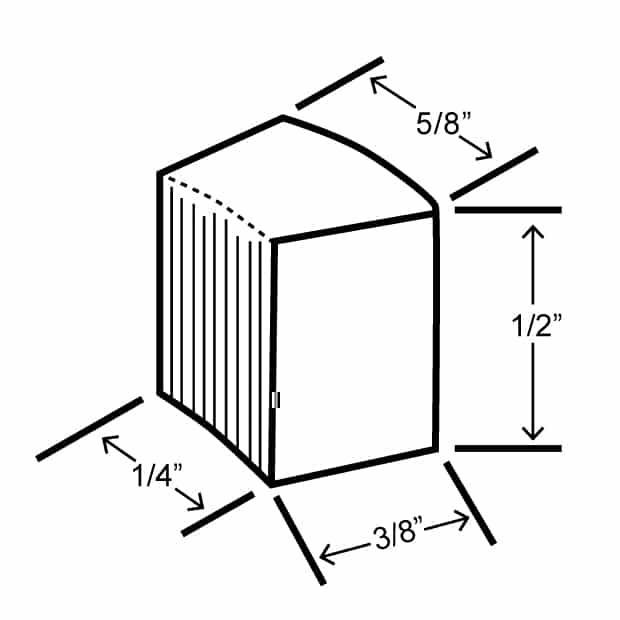

Produces mini cubelet nugget-style ice	Yes
Durable stainless steel exterior	Yes

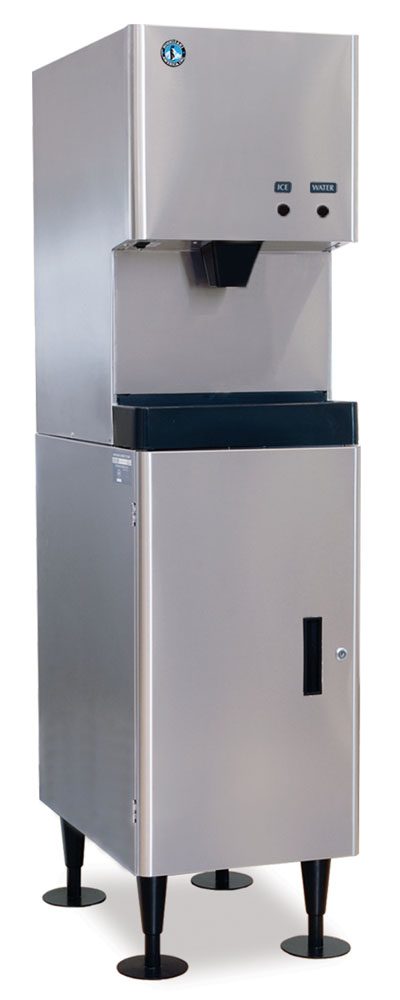

Place on countertop or optional stand: SD-270	Yes
Push button operation that dispenses ice or water	Yes
CleanCycle12(TM) - Every 12 hrs, it performs 15 min purge to clean itself	Yes
R-404A refrigerant (14.8 oz. / 420 g)	Yes
Heat Rejection:3532 BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 104 - 127V	Yes
8.5 amps (15 Amp Max fuse)	Yes
7.6 kwh/100 lbs.@ 90/70	Yes
Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).	Yes
Five Years: Parts warranty on Compressor, air-cooled condenser coil.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	No
Smart Device	No

Features

Discontinued - Replaced by DCM-271BAH
Dimensions: 16-9/16" W x 24-1/8" D x 31-11/16" H
Up to 282 lbs of ice produced per 24 hours
Up to 10 lbs of built-in storage capacity (0.3ft3)
Produces mini cubelet nugget-style ice
Durable stainless steel exterior
Place on countertop or optional stand: SD-270
Push button operation that dispenses ice or water
CleanCycle12(TM) - Every 12 hrs, it performs 15 min purge to clean itself
R-404A refrigerant (14.8 oz. / 420 g)
Heat Rejection:3532 BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 104 - 127V
8.5 amps (15 Amp Max fuse)
7.6 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Description

The DCM-270BAH is capable of producing approximately 282 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12 - Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
