SKU: DB200H

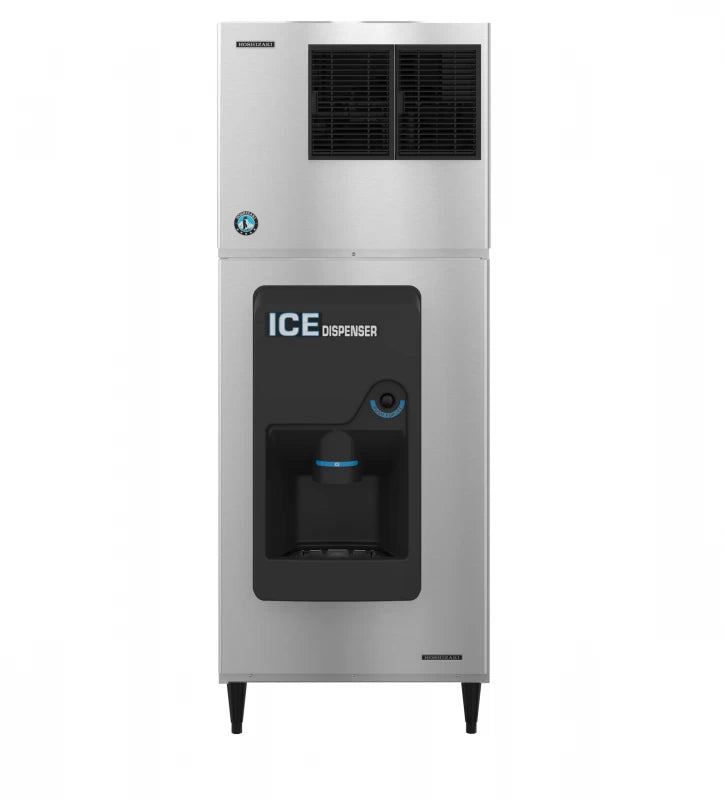

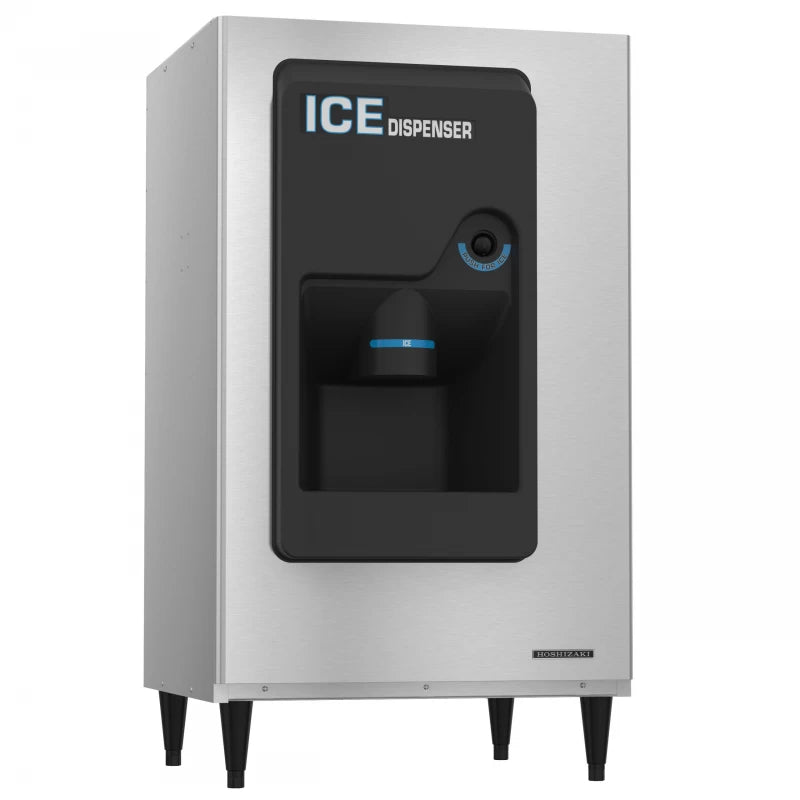

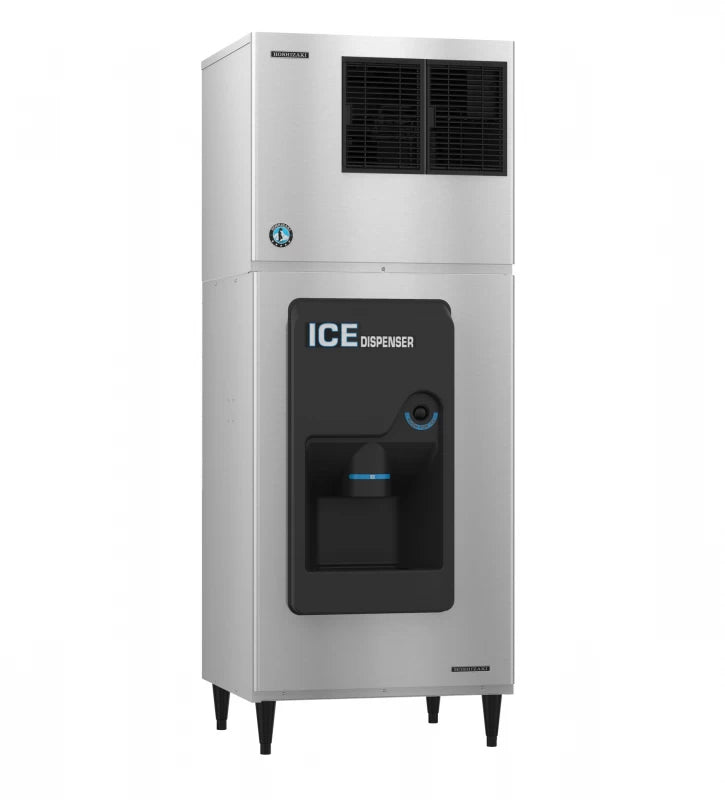

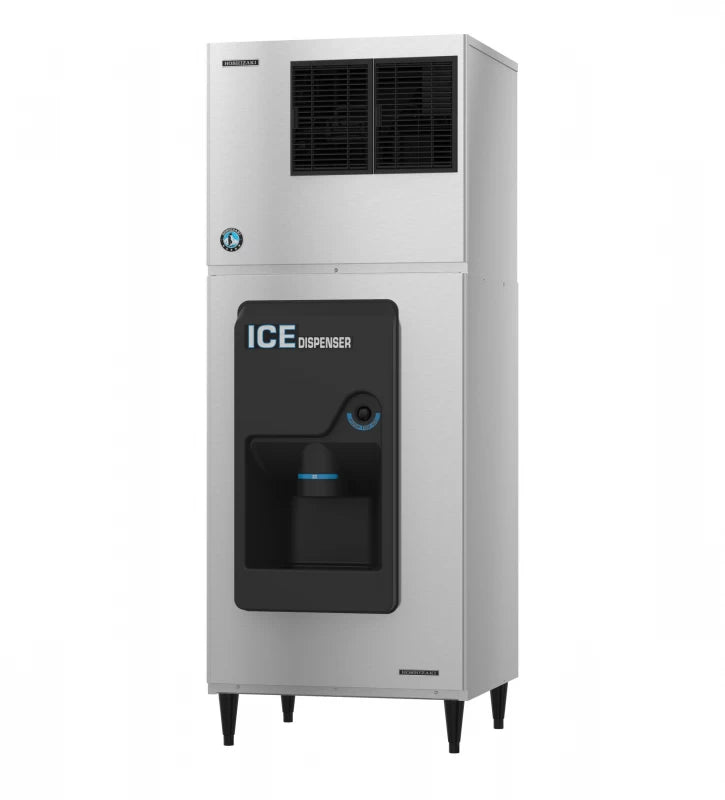

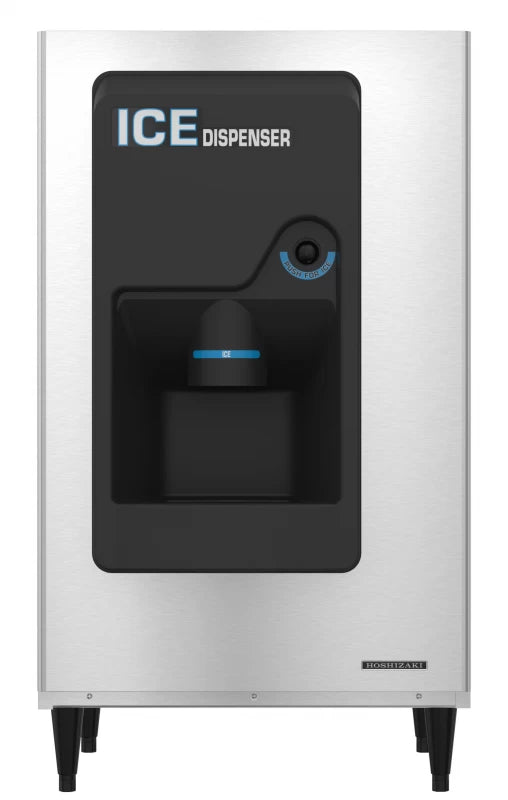

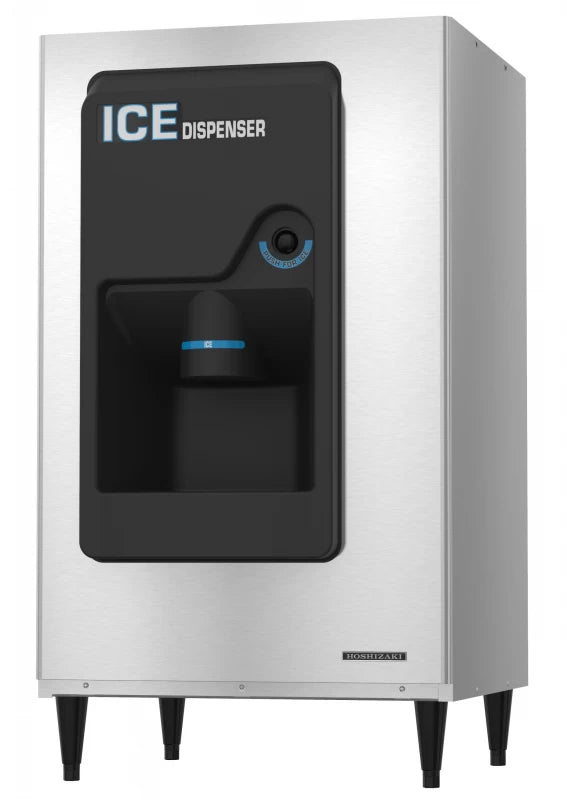

Hoshizaki DB200H 30″ W Hotel/Motel Ice Dispenser with 200 lbs Capacity – Stainless Steel Exterior

Quick Specification More details

Width:
30"
Depth:
30"
Height:
53"
Type:
Ice Makers

About this product

Stores up to 200 lbs of ice
Stainless steel auger and agitator
Single phase, 115v/60/1, Hardwired connection (no cord/plug included)
Push button single auger agitator dispenses ice at 13 lbs. per minute

Summer Sale

Clearance

SKU: DB200H

Hoshizaki DB200H 30″ W Hotel/Motel Ice Dispenser with 200 lbs Capacity – Stainless Steel Exterior

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
30"
Height:
53"
Type:
Ice Makers

About this product

Stores up to 200 lbs of ice
Stainless steel auger and agitator
Single phase, 115v/60/1, Hardwired connection (no cord/plug included)
Push button single auger agitator dispenses ice at 13 lbs. per minute

Product Details for Hoshizaki DB200H

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, Hardwired connection (no cord/plug included), Amperage: 1.4, Max Fuse/HACR Breaker: 15 A
Compatible Icemakers	KML-325M, KM-340M, KM-515M, KML-500M, KML-700M, KM-600M, KM-650M,
Ice Storage Capacity	200 lbs, Cubic Volume: 5.72 ft3
Shipping Weight	220

Dimensions & weight

Weight	220 lbs.
Width	30 in.
Depth	30 in.
Height	53 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	260 lbs.
Total of Shipping Weight	260 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

Safely store and dispense up to 200 lbs of ice with this Hotel/Motel Ice Dispenser. The DB-200H is the perfect 30″ wide ice storage bin and dispenser for many resorts, hotels, and other hospitality services! It boasts a seamless bin linear and Foamed-in-place polyurethane insulation in all of the bin walls including the bottom of the unit providing your operation with maximum ice preservation. The DB-200H features a durable and easy to maintain Stainless Steel exterior cabinet. This model comes Standard with 6″ Painted Flange Legs and the Ice dispensing area is ADA compliant. Single phase, 115v/60/1, Hardwired connection (no cord/plug included), 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain. The unit is UL Listed, ETL Sanitation Listed, ADA Compliant, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire machine. Compatible icemakers/dispensers, sold separately: KML-325M, KM-340M, KM-515M, KML-500M, KML-700M, KM-600M, KM-650M
