SKU: CRMR7230MD6

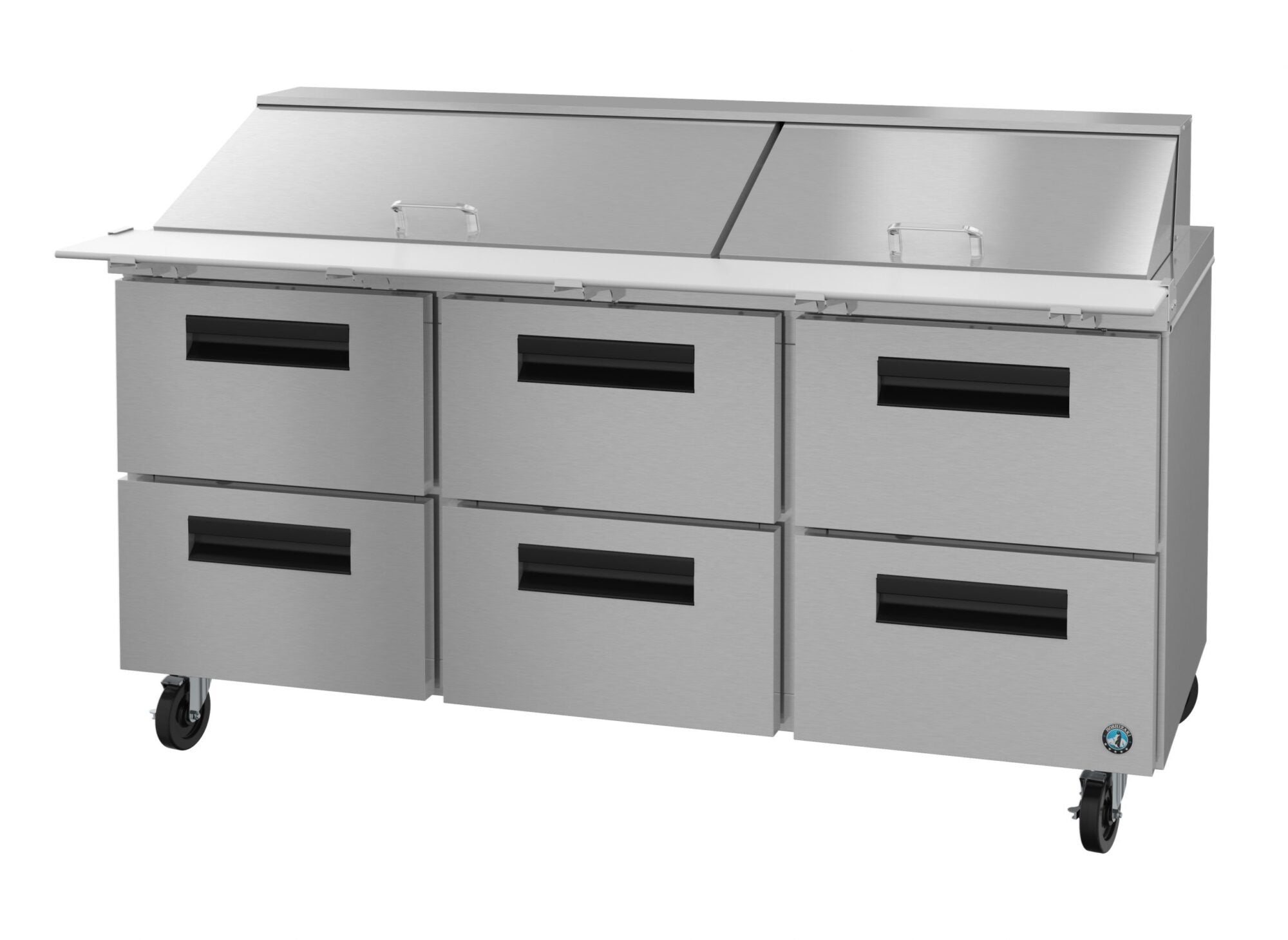

Hoshizaki CRMR7230MD6 Refrigerator, Three Section Mega Top Prep Table, Stainless Drawers Stainless Steel

Quick Specification More details

Width:
72"
Depth:
30"
Height:
45.2"
Type:
Beverage Centers

About this product

Discontinued – Replaced by SR72A-30MD6
Dimensions: 72″ W x 30″ D x 45.2″ H
Net capacity of 19.7 cubic feet
Nominal Compres. of 2607 BTU/hr at 1/3 HP

Summer Sale

Clearance

SKU: CRMR7230MD6

Hoshizaki CRMR7230MD6 Refrigerator, Three Section Mega Top Prep Table, Stainless Drawers Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
72"
Depth:
30"
Height:
45.2"
Type:
Beverage Centers

About this product

Discontinued – Replaced by SR72A-30MD6
Dimensions: 72″ W x 30″ D x 45.2″ H
Net capacity of 19.7 cubic feet
Nominal Compres. of 2607 BTU/hr at 1/3 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki CRMR7230MD6

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.1 kwh/day, Amperage: 4.9, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, , Refrigerant: R-134A
Refrigeration Data	Nominal Compres. of 2607 BTU/hr at 1/3 HP, Heat Rejection: 726 BTU/hr
Shipping Weight	377
Storage Specs	Nominal Storage Capacity: 19.7ft3, Interior Storage Capacity: 19.7ft3, Drawer Opening: 19.5″ W x 22.9″ H , Depth with Drawer fully extended: 50.25″ D, Drawers Included: 6

Dimensions & weight

Width	72 in.
Depth	30 in.
Height	45.2 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CRMR72-30MD6 Commercial Series Mega Top Three Section Refrigerator with Stainless Drawers is an attractive addition in any kitchen. With a Net capacity of 19.7 cubic feet this front breathing Mega Top Refrigerator is perfect for tight spaces.

Product Features

Discontinued – Replaced by SR72A-30MD6
Dimensions: 72″ W x 30″ D x 45.2″ H
Net capacity of 19.7 cubic feet
Nominal Compres. of 2607 BTU/hr at 1/3 HP
Electrical consumption of 5.1 kWh/day at 4.9 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
Extruded aluminum flush mount drawer handle
Magnetic drawer gasket is easily removable for cleaning
Stainless steel exterior drawer with stainless steel interior
Cabinet and drawers are insulated with 2″ CFC free, foamed in place polyurethane
Stainless steel exterior front, sides and top with stainless steel interior
Engineered to maintain food safe temperatures in 100°F ambient conditions
R-134a refrigerant
Provided with a full complement of plastic 1/6th size pans, 4″ deep and adapter bars
Enamel coated evaporator coil for extended life
Includes 6 stainless steel drawers with 175 lbs dynamic load rating and 30 polycarbonate plastic 1/6th size pans, 4″ deep pans
Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
Standard with (4) 6″ Stem Casters (2 with brakes)
72″ x 10″ x 1/2″ thick white polyethylene cutting board is standard
115v/60/1, 10 ft. cord and plug
Shipping Crate: 74″ L x 34″ D x 46.2″ H at 377 lbs
Energy efficient automatic hot gas condensate evaporator
Five Years compressor warranty, Three Years parts and labor warranty
