SKU: CRMR7230MD4

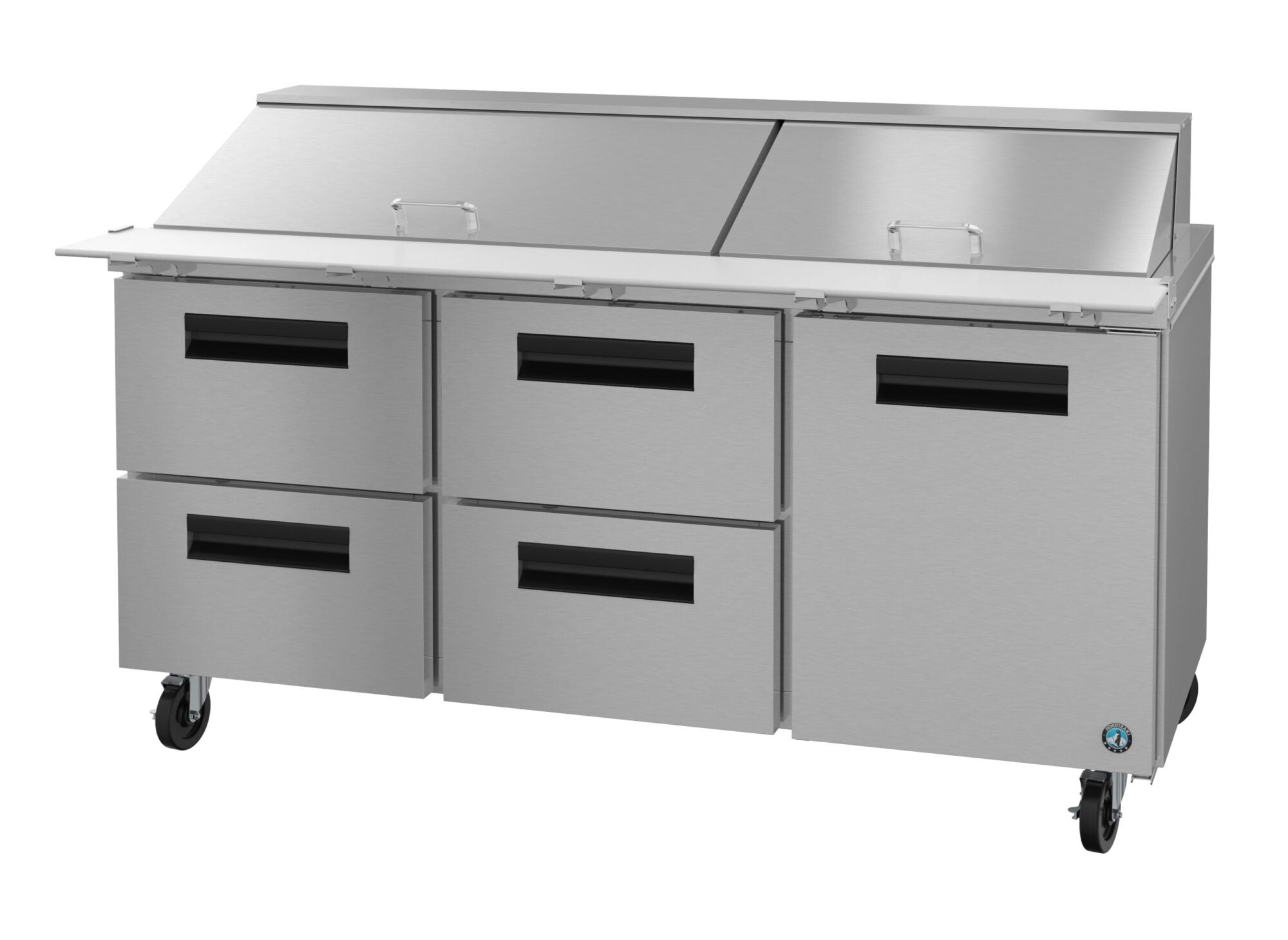

Hoshizaki CRMR7230MD4 Refrigerator, Three Section Mega Top Prep Table, Drawer/Door Combo Stainless Steel

Quick Specification More details

Width:
72"
Depth:
30"
Height:
45.25"
Type:
Beverage Centers

About this product

Discontinued – Replaced by SR72A-30MD4
Dimensions: 72″ W x 30″ D x 45.25″ H
Net capacity of 19.7 cubic feet
Nominal Compres. of 2607 BTU/hr at 1/3 HP

Summer Sale

Clearance

SKU: CRMR7230MD4

Hoshizaki CRMR7230MD4 Refrigerator, Three Section Mega Top Prep Table, Drawer/Door Combo Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
72"
Depth:
30"
Height:
45.25"
Type:
Beverage Centers

About this product

Discontinued – Replaced by SR72A-30MD4
Dimensions: 72″ W x 30″ D x 45.25″ H
Net capacity of 19.7 cubic feet
Nominal Compres. of 2607 BTU/hr at 1/3 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki CRMR7230MD4

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.1 kwh/day, Amperage: 6, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A
Refrigeration Data	Nominal Compres. of 2607 BTU/hr at 1/3 HP, Heat Rejection: 726 BTU/hr
Shipping Weight	417
Storage Specs	Nominal Storage Capacity: 21.2ft3, Interior Storage Capacity: 19.7ft3, Door Opening: 19.5″ W x 23″ H , Depth with Door fully extended: 52.5″ D, Shelves Included: 2 epoxy coated shelves

Dimensions & weight

Width	72 in.
Depth	30 in.
Height	45.25 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CRMR72-30MD4 Commercial Series Three Section Mega Top Refrigerator is a Drawer/Door Combo cabinet. Engineered to maintain food safe temperatures in 100°F ambient conditions and with a Net capacity of 16.6 cubic feet this front breathing Mega Top Refrigerator is the right choice for hot kitchens.

Product Features

Discontinued – Replaced by SR72A-30MD4
Dimensions: 72″ W x 30″ D x 45.25″ H
Net capacity of 19.7 cubic feet
Nominal Compres. of 2607 BTU/hr at 1/3 HP
Electrical consumption of 5.1 kWh/day at 6 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
Extruded aluminum flush mount drawer/door handles
Magnetic drawer and door gaskets are easily removable for cleaning
Stainless steel exterior door with ABS interior liner
Cabinet, doors, and drawers are insulated with 2″ CFC free, foamed in place polyurethane
Stainless steel exterior front, sides and top with stainless steel interior
Engineered to maintain food safe temperatures in 100°F ambient conditions
R-134a refrigerant
Enamel coated evaporator coil for extended life
Includes 4 stainless steel drawers,2 epoxy coated shelves, and 30 polycarbonate plastic 1/6th size pans, 4″ deep
Spring assisted self closing door, with stay open feature (field reversible)
Standard with (4) 6″ Stem Casters (2 with brakes)
72″, 10″ deep, 1/2″thick white polyethylene cutting board is standard
115v/60/1, 10 ft. cord and plug
Shipping Crate: 74″ L x 34″ D x 45.75″ H at 417 lbs
Energy efficient automatic hot gas condensate evaporator
Five Years compressor warranty, Three Years parts and labor warranty
Drawer/Door units are made to order. Allow 4-6 weeks
