SKU: CR3SFS

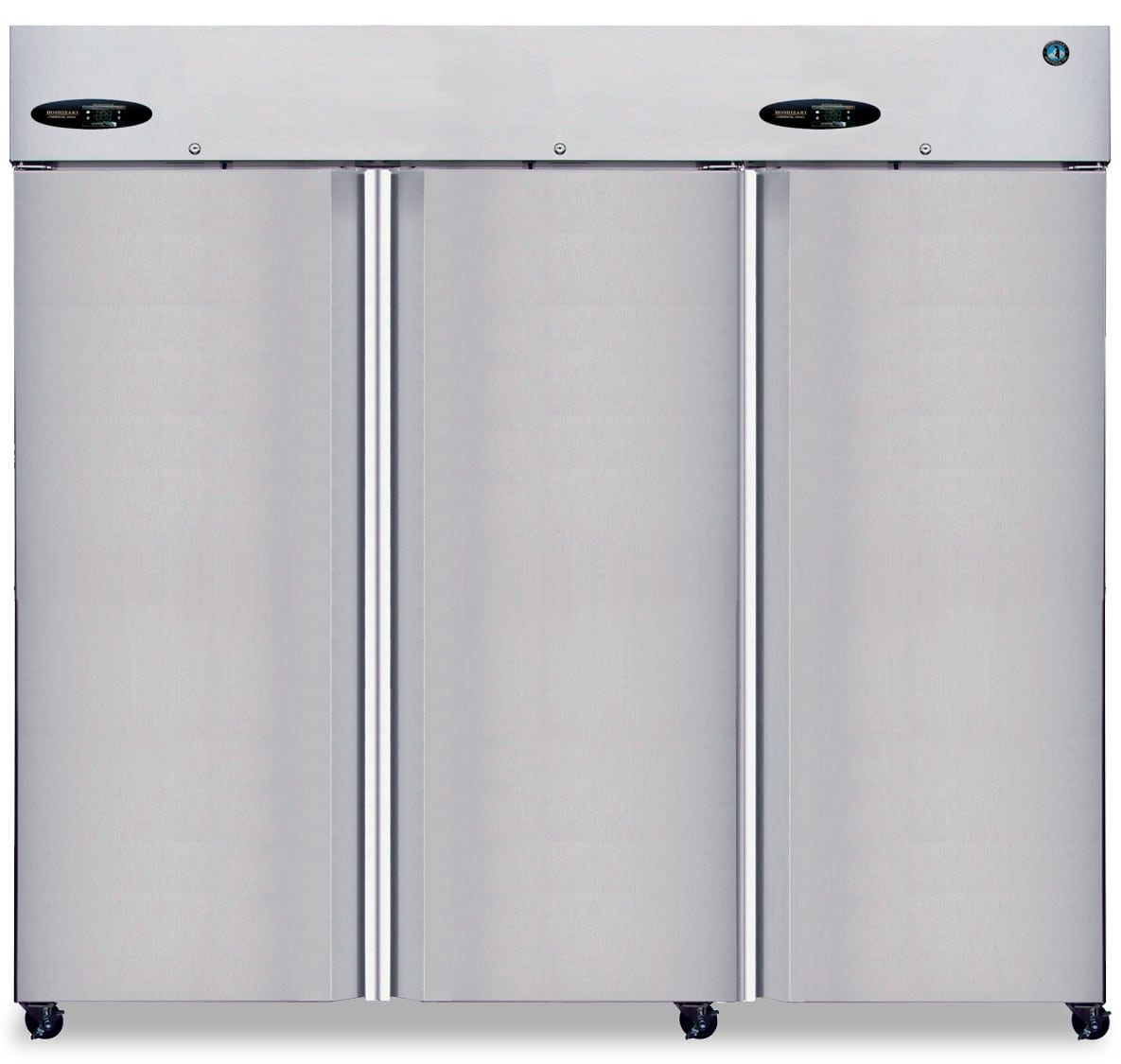

Hoshizaki CR3SFS Refrigerator, Three Section Upright, Full Stainless Doors with Lock Stainless Steel

Quick Specification More details

Width:
83"
Depth:
34"
Height:
79.5"
Type:
Beverage Centers

About this product

Discontinued – Replaced by R3A-FS
Dimensions: 83″ W x 34″ D x 79.5″ H
Net capacity of 68.1 cubic feet
Nominal Compres. of 2373 BTU/hr at 1/4 HP(left), 1625 BTU/hr at 1/5 HP (right)

Summer Sale

Clearance

SKU: CR3SFS

Hoshizaki CR3SFS Refrigerator, Three Section Upright, Full Stainless Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
83"
Depth:
34"
Height:
79.5"
Type:
Beverage Centers

About this product

Discontinued – Replaced by R3A-FS
Dimensions: 83″ W x 34″ D x 79.5″ H
Net capacity of 68.1 cubic feet
Nominal Compres. of 2373 BTU/hr at 1/4 HP(left), 1625 BTU/hr at 1/5 HP (right)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI CR3SFS

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 20P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.03 kwh/day, Amperage: 12, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 33 – 52°F, Refrigerant: R-134a
Refrigeration Data	Nominal Compres. of 2373 BTU/hr at 1/4 HP(left), 1625 BTU/hr at 1/5 HP (right), Heat Rejection: 962 BTU/hr
Shipping Weight	895
Storage Specs	Nominal Storage Capacity: 73.3ft3, Interior Storage Capacity: 68.1ft3, Door Opening: 22″ W x 59.25″ H , Depth with Door fully extended: 59.75″ D, Shelves Included: 9

Dimensions & weight

Width	83 in.
Depth	34 in.
Height	79.5 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CR3S-FS Commercial Series Upright Three Section Refrigerator with a Full Stainless Doors and One piece, full door length, extruded aluminum flush mount door handle is an attractive workhorse for any business. Durable 1/4 HP and 1/5 HP motors power the compressors in the top of this unit providing the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.

Product Features

Discontinued – Replaced by R3A-FS
Dimensions: 83″ W x 34″ D x 79.5″ H
Net capacity of 68.1 cubic feet
Nominal Compres. of 2373 BTU/hr at 1/4 HP(left), 1625 BTU/hr at 1/5 HP (right)
Electrical consumption of 4.03 kWh/day at 12 Amps, 10 ft long cord with a 5 – 20P NEMA plug
Exclusive stepped door design to protect recessed magnetic door gasket
Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
One piece, full door length, extruded aluminum flush mount door handle
Unique “ducted” air distribution system
Full Stainless Doorss come standard with locks
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior with stainless steel exterior front and sides
Solid state digital controller with temperature alarms and LED display (°F or °C)
R-134a refrigerant
Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 9 epoxy coated wire coated wire shelves
Stainless steel supports adjustable in 1″ increments
Factory installed (6) 4″ Stem Casters (3 with brakes)
Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, door reversal kit, air filter
115v/60/1, 10 ft. cord and plug
Shipping Crate: 86″ L x 36.5″ D x 83″ H at 895 lbs
Energy efficient non-electric evaporation system
Five Years compressor warranty, Three Years parts and labor warranty
