SKU: CR3BFGY

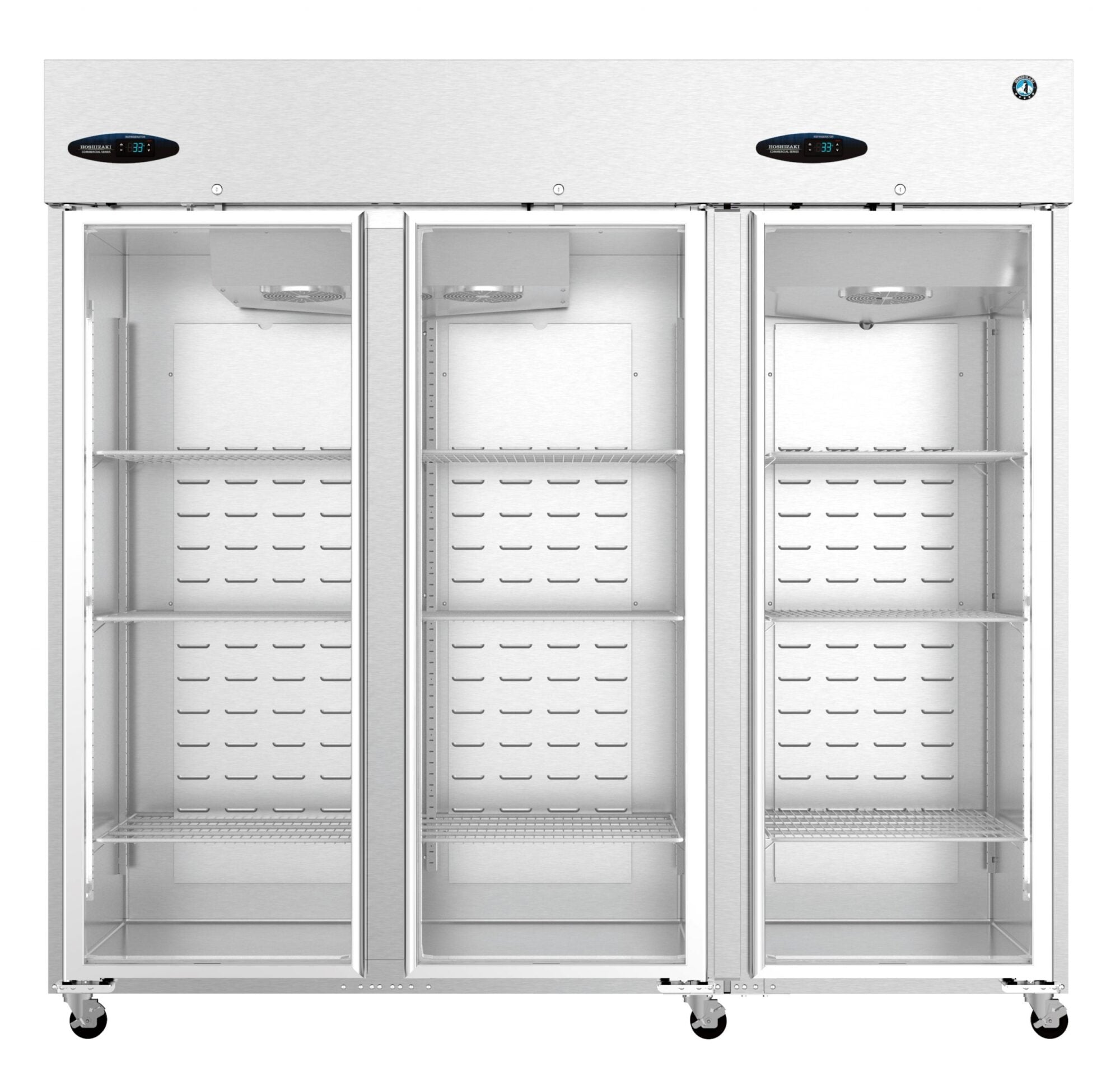

Hoshizaki CR3BFGY Refrigerator, Three Section Upright Full Glass Door, Full Glass Doors Stainless Steel

Quick Specification More details

Width:
84"
Depth:
34.8"
Height:
79.63"
Type:
Beverage Centers

About this product

Discontinued – Replaced by CR3S-FGY
Dimensions: 84″ W x 34.8″ D x 79.63″ H
Net capacity of 68.2 cubic feet
Nominal Compres. of 2373 BTU/hr at 1/4 HP

Summer Sale

Clearance

SKU: CR3BFGY

Hoshizaki CR3BFGY Refrigerator, Three Section Upright Full Glass Door, Full Glass Doors Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
84"
Depth:
34.8"
Height:
79.63"
Type:
Beverage Centers

About this product

Discontinued – Replaced by CR3S-FGY
Dimensions: 84″ W x 34.8″ D x 79.63″ H
Net capacity of 68.2 cubic feet
Nominal Compres. of 2373 BTU/hr at 1/4 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI CR3BFGY

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 20P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 8.65 kwh/day, Amperage: 12, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 34 – 52°F, , Refrigerant: R-134A
Refrigeration Data	Nominal Compres. of 2373 BTU/hr at 1/4 HP, Heat Rejection: 1890 BTU/hr
Shipping Weight	880
Storage Specs	Nominal Storage Capacity: 74.3ft3, Interior Storage Capacity: 68.2ft3, Door Opening: 22.8″ W x 59.6″ H , Depth with Door fully extended: 60.5″ D, Shelves Included: 9

Dimensions & weight

Width	84 in.
Depth	34.8 in.
Height	79.63 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CR3B-FGY Commercial Series Upright Three Section Refrigerator with Full Glass Doorss and a One piece, full door length, chrome handle is an attractive workhorse for any business. The durable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.

Product Features

Discontinued – Replaced by CR3S-FGY
Dimensions: 84″ W x 34.8″ D x 79.63″ H
Net capacity of 68.2 cubic feet
Nominal Compres. of 2373 BTU/hr at 1/4 HP
Electrical consumption of 8.65 kWh/day at 12 Amps, 10 ft long cord with a 5 – 20P NEMA plug
Glass doors are energy efficient Triple Pane, Argon filled with Low-E non reflective coating & locks
Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit)
One piece, full door length, chrome handle
Magnetic door gasket is easily removable for cleaning
Energy efficient, vacuum formed, seamless, one piece ABS interior liner
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel exterior front and sides
Solid state digital controller with temperature alarms and LED display (°F or °C)
R-134a refrigerant
Refrigerant flow is controlled with a TXV expansion valve
Enamel coated evaporator coil for extended life
Includes 9 epoxy coated wire coated shelves
Epoxy coated wire shelves adjustable in 1″ increments on anodized aluminum supports
Standard with (6) 4″ HD Casters (3 with brakes)
Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides
115v/60/1, 10 ft. cord and plug
Shipping Crate: 90.5″ L x 39.5″ D x 83″ H at 880 lbs
Energy efficient automatic hot gas condensate evaporator
Five Years compressor warranty, Three Years parts and labor warranty
