SKU: CR1SFGY

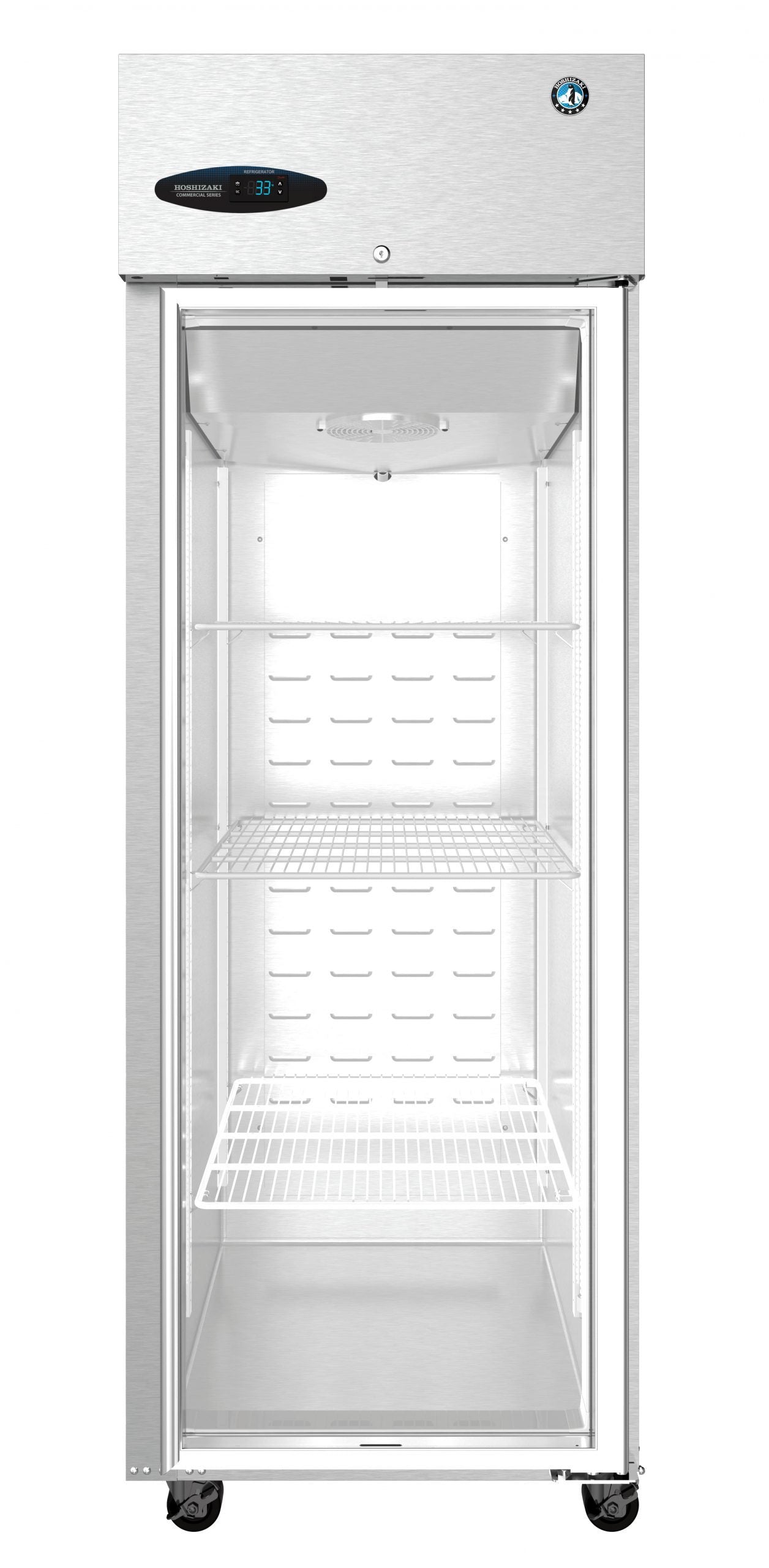

Hoshizaki CR1SFGY Refrigerator, Single Section Upright, Full Glass Door Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
33.75"
Height:
79.75"
Type:
Beverage Centers

About this product

Discontinued – Replaced by CR1S-FGE
Dimensions: 27.5″ W x 33.75″ D x 79.75″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 1625 BTU/hr at 1/5 HP

Summer Sale

Clearance

SKU: CR1SFGY

Hoshizaki CR1SFGY Refrigerator, Single Section Upright, Full Glass Door Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
33.75"
Height:
79.75"
Type:
Beverage Centers

About this product

Discontinued – Replaced by CR1S-FGE
Dimensions: 27.5″ W x 33.75″ D x 79.75″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 1625 BTU/hr at 1/5 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI CR1SFGY

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.56 kwh/day, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 33 – 52°F, Refrigerant: R-134a
Refrigeration Data	Nominal Compres. of 1625 BTU/hr at 1/5 HP, Heat Rejection: 550 BTU/hr
Shipping Weight	354
Storage Specs	Nominal Storage Capacity: 23.3ft3, Interior Storage Capacity: 20.9ft3, Door Opening: 22″ W x 59.5″ H , Depth with Door fully extended: 57.25″ D, Shelves Included: 3

Dimensions & weight

Width	27.5 in.
Depth	33.75 in.
Height	79.75 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CR1S-FGY Commercial Series Upright Single Section Refrigerator with a Full Glass Door and One piece, full door length, chrome handle is an attractive workhorse for any business. The durable 1/5 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.

Product Features

Discontinued – Replaced by CR1S-FGE
Dimensions: 27.5″ W x 33.75″ D x 79.75″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 1625 BTU/hr at 1/5 HP
Electrical consumption of 2.56 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
One piece, full door length, chrome handle
Unique “ducted” air distribution system
Full glass doors are energy efficient triple pane, argon filled with low-E non reflective coating are standard with locks
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior with stainless steel exterior front and sides
Solid state digital controller with temperature alarms and LED display (°F or °C)
R-134a refrigerant
Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 3 epoxy coated wire coated wire shelves
Stainless steel supports adjustable in 1″ increments
Standard with (4) 4″ Stem Casters (2 with brakes)
Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot door reversal kit, air filter
115v/60/1, 10 ft. cord and plug
Shipping Crate: 37.5″ L x 31.5″ D x 83″ H at 354 lbs
Energy efficient non-electric evaporation system
Five Years compressor warranty, Three Years parts and labor warranty
