SKU: CR1SFGE

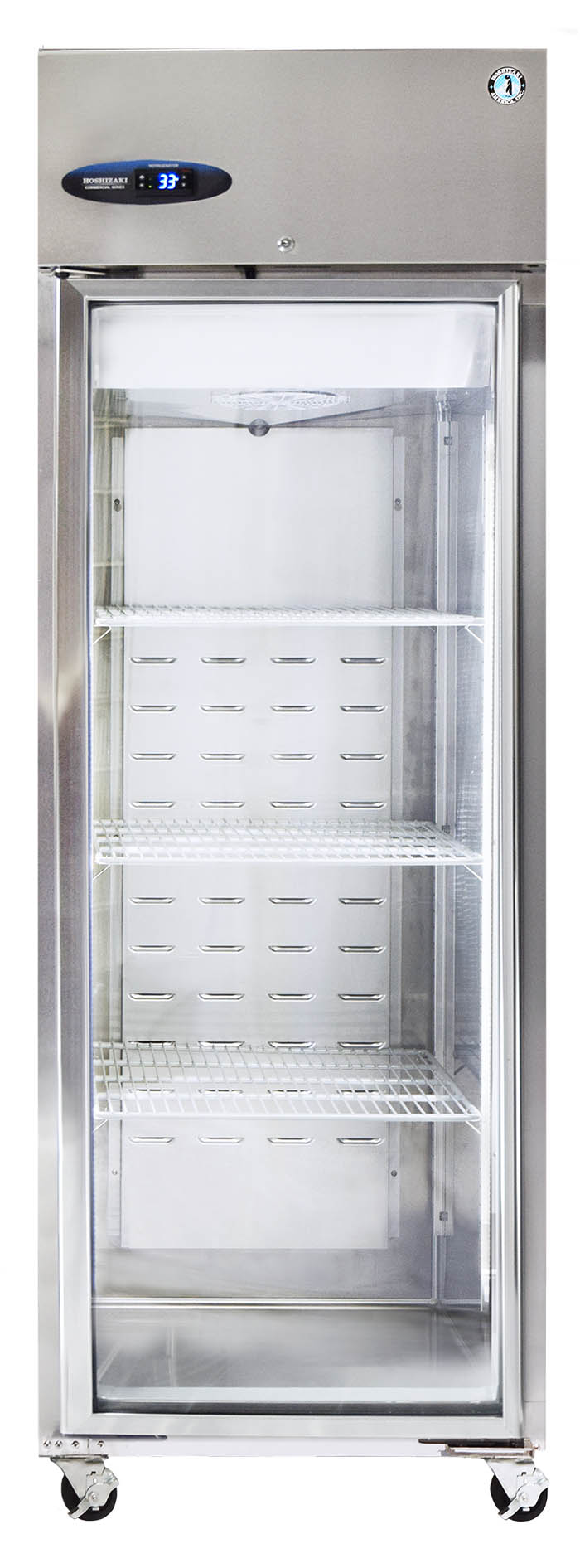

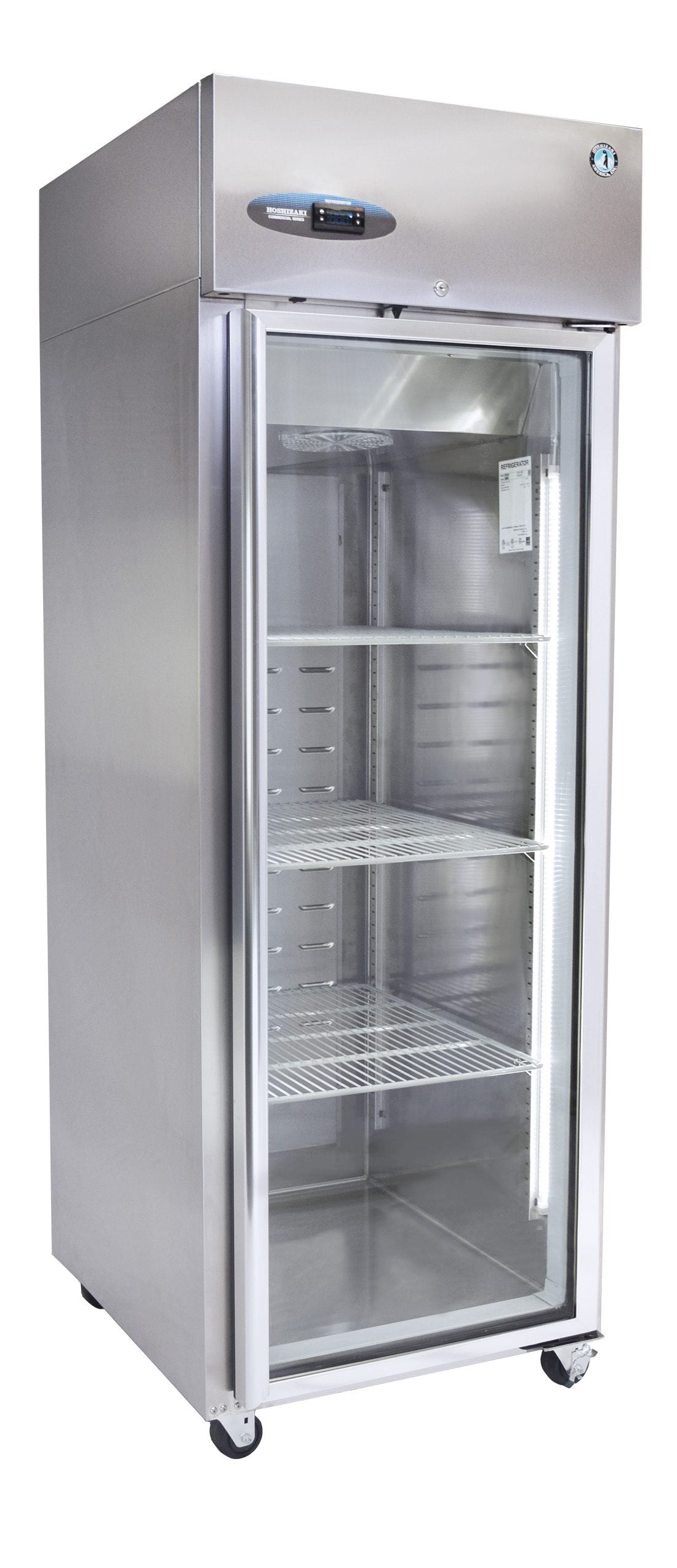

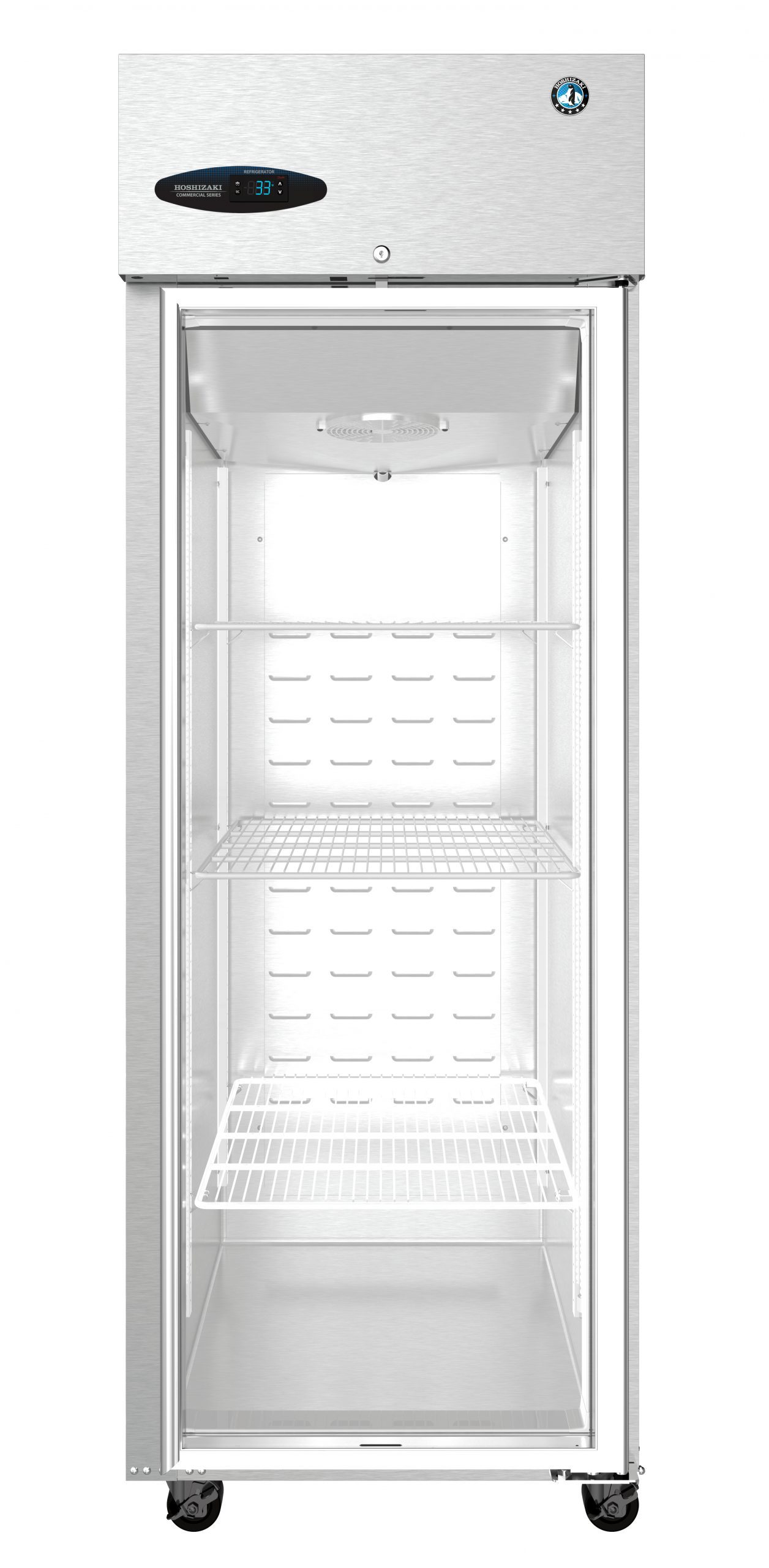

Hoshizaki CR1SFGE Refrigerator, Single Section Upright, Full Glass Door with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
34.75"
Height:
79.75"
Type:
Beverage Centers

About this product

Discontinued – Replaced by R1A-FG
Dimensions: 27.5″ W x 34.75″ D x 79.75″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 1625 BTU/hr at 1/5 HP

SKU: CR1SFGE

Hoshizaki CR1SFGE Refrigerator, Single Section Upright, Full Glass Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
34.75"
Height:
79.75"
Type:
Beverage Centers

About this product

Discontinued – Replaced by R1A-FG
Dimensions: 27.5″ W x 34.75″ D x 79.75″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 1625 BTU/hr at 1/5 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki CR1SFGE

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.56 kwh/day, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R-134a
Refrigeration Data	Nominal Compres. of 1625 BTU/hr at 1/5 HP, Heat Rejection: 570 BTU/hr
Shipping Weight	354
Storage Specs	Nominal Storage Capacity: 23.3ft3, Interior Storage Capacity: 20.9ft3, Door Opening: 22″ W x 59.5″ H , Depth with Door fully extended: 57.25″ D, Shelves Included: 3

Dimensions & weight

Width	27.5 in.
Depth	34.75 in.
Height	79.75 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CR1S-FGE Commercial Series Upright Single Section Refrigerator with a Full Glass Door and One piece, full door length, chrome door handle is an attractive workhorse for any business. The Electrical consumption of 2.56 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. The durable 1/5 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature – even when fully loaded!

Product Features

Discontinued – Replaced by R1A-FG
Dimensions: 27.5″ W x 34.75″ D x 79.75″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 1625 BTU/hr at 1/5 HP
Electrical consumption of 2.56 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
One piece, full door length, chrome door handle
Unique “ducted” air distribution system
Full glass doors are energy efficient multi pane, argon filled, and come standard with locks
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior with stainless steel exterior front and sides
Solid state digital controller with temperature alarms and LED display (°F or °C)
R-134a refrigerant
Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 3 epoxy coated wire coated wire shelves
Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
Standard with (4) 4″ Stem Casters (2 with brakes)
Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, door reversal kit, air filter
115v/60/1, 10 ft. cord and plug
Shipping Crate: 37.5″ L x 31.5″ D x 83″ H at 354 lbs
Energy efficient non-electric evaporation system
Five Years compressor warranty, Three Years parts and labor warranty
