SKU: CF3SHS

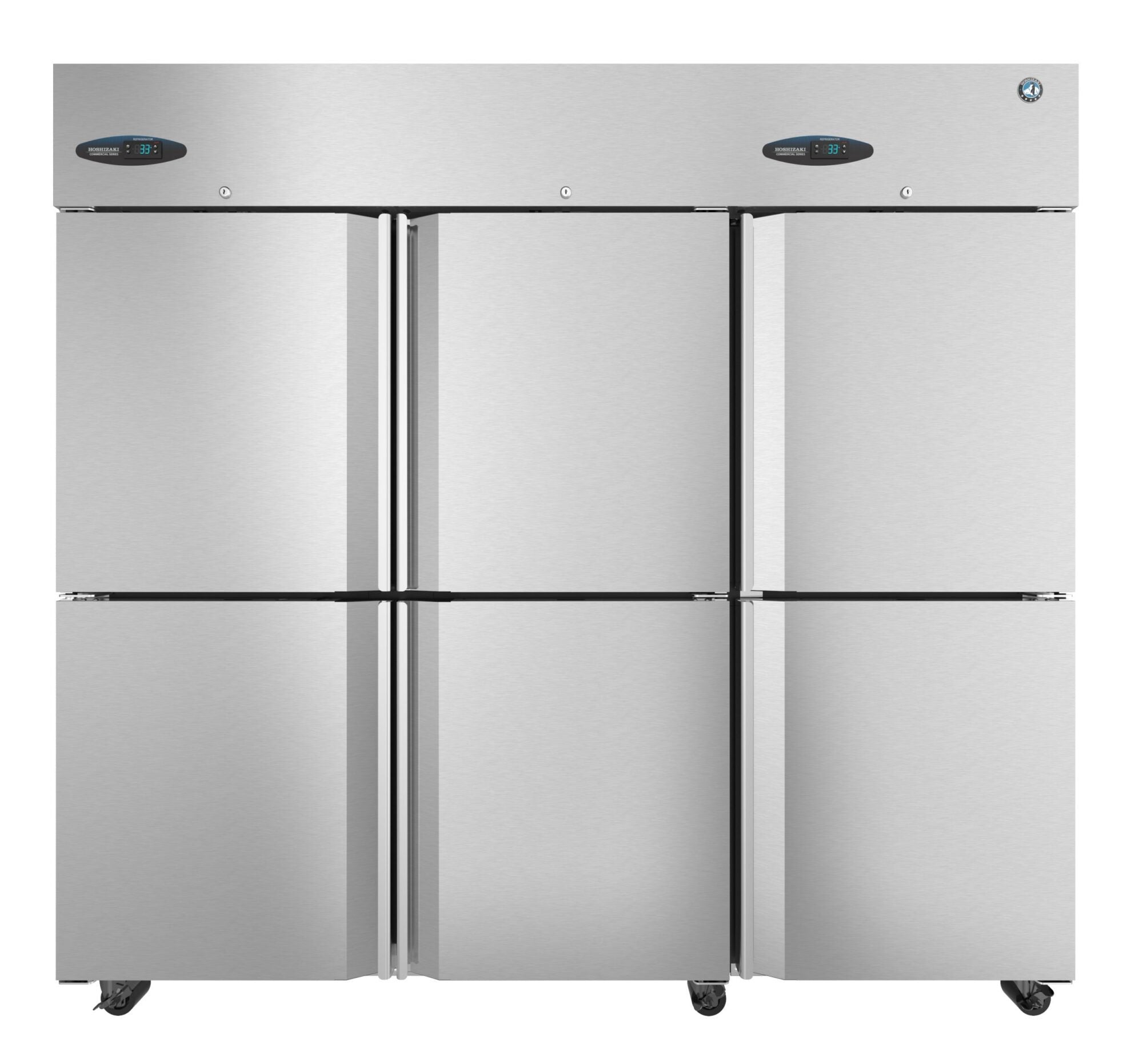

Hoshizaki CF3SHS Freezer, Three Section Upright, Half Stainless Doors with Lock Stainless Steel

Quick Specification More details

Width:
83"
Depth:
34"
Height:
79.5"
Type:
Upright Freezers

About this product

Discontinued – Replaced by F3A-HS
Dimensions: 83″ W x 34″ D x 79.5″ H
Net capacity of 67.8 cubic feet
Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), 2466 BTU/hr at 1/2 HP (right)

Summer Sale

Clearance

SKU: CF3SHS

Hoshizaki CF3SHS Freezer, Three Section Upright, Half Stainless Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
83"
Depth:
34"
Height:
79.5"
Type:
Upright Freezers

About this product

Discontinued – Replaced by F3A-HS
Dimensions: 83″ W x 34″ D x 79.5″ H
Net capacity of 67.8 cubic feet
Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), 2466 BTU/hr at 1/2 HP (right)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI CF3SHS

Technical Details

Product details

Electrical Specs	Electrical Connection: L14-20P NEMA, 230/115v/60/1, 10 ft. cord and plug, Energy Consumption: 15.06 kwh/day, Amperage: 16, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104-126V/208 – 254V, Control Setpoint Range: -10 – +12°F, Refrigerant: R-404a
Refrigeration Data	Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), 2466 BTU/hr at 1/2 HP (right), Heat Rejection: 3442 BTU/hr
Shipping Weight	905
Storage Specs	Nominal Storage Capacity: 73.3ft3, Interior Storage Capacity: 67.8ft3, Door Opening: 22″ W x 27.75″ H , Depth with Door fully extended: 59.75″ D, Shelves Included: 9

Dimensions & weight

Width	83 in.
Depth	34 in.
Height	79.5 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CF3S-HS Commercial Series Upright Three Section Freezer with a Half Stainless Doors and One piece, full door length, extruded aluminum flush mount door handle is an attractive workhorse for any business. Durable 5/8 HP and 1/2 HP motors power the compressors in the top of this unit providing the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.

Product Features

Discontinued – Replaced by F3A-HS
Dimensions: 83″ W x 34″ D x 79.5″ H
Net capacity of 67.8 cubic feet
Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), 2466 BTU/hr at 1/2 HP (right)
Electrical consumption of 15.06 kWh/day at 16 Amps, 10 ft long cord with a L14-20P NEMA plug
Exclusive stepped door design to protect recessed magnetic door gasket
Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
One piece, full door length, extruded aluminum flush mount door handle
Unique “ducted” air distribution system
Half Stainless Doorss come standard with locks
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior with stainless steel exterior front and sides
Solid state digital controller with temperature alarms and LED display (°F or °C)
R-404a refrigerant
Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 9 epoxy coated wire coated wire shelves
Stainless steel supports adjustable in 1″ increments
Factory installed (6) 4″ Stem Casters (3 with brakes)
Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, door reversal kit, air filter
230/115v/60/1, 10 ft. cord and plug
Shipping Crate: 86″ L x 36.5″ D x 83″ H at 905 lbs
Energy efficient non-electric evaporation system
Five Years compressor warranty, Three Years parts and labor warranty
