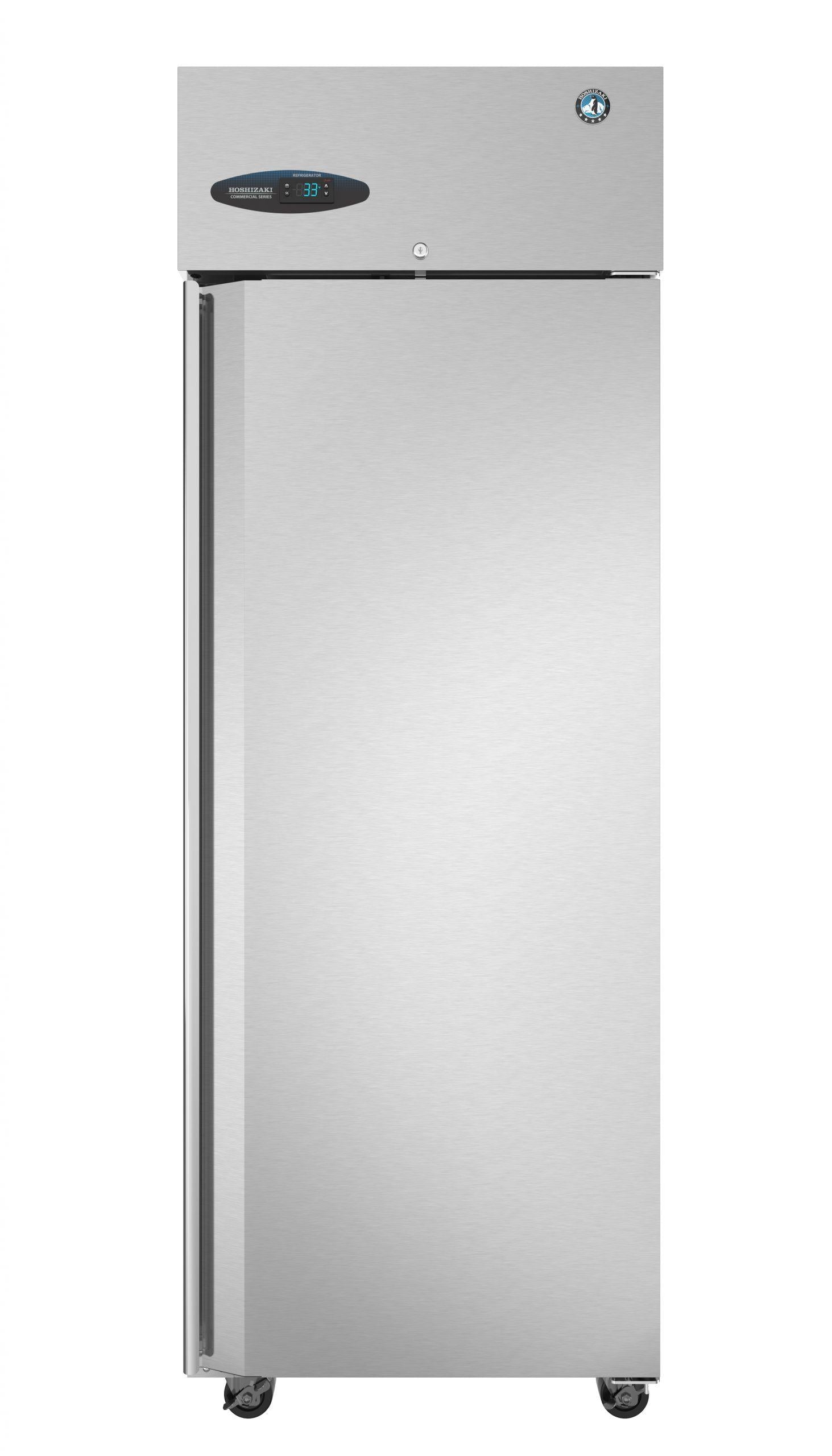

Hoshizaki CF1SFS Freezer, Single Section Upright, Full Stainless Door with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
34"
Height:
79.5"
Type:
Upright Freezers

About this product

Discontinued – Replaced by F1A-FS
Dimensions: 27.5″ W x 34″ D x 79.5″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 2466 BTU/hr at 1/2 HP

Summer Sale

Clearance

SKU: CF1SFS

Hoshizaki CF1SFS Freezer, Single Section Upright, Full Stainless Door with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
34"
Height:
79.5"
Type:
Upright Freezers

About this product

Discontinued – Replaced by F1A-FS
Dimensions: 27.5″ W x 34″ D x 79.5″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 2466 BTU/hr at 1/2 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI CF1SFS

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.38 kwh/day, Amperage: 9, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, , Refrigerant: R-404A
Refrigeration Data	Nominal Compres. of 2466 BTU/hr at 1/2 HP, Heat Rejection: 1429 BTU/hr
Shipping Weight	360
Storage Specs	Nominal Storage Capacity: 22.8ft3, Interior Storage Capacity: 20.9ft3, Door Opening: 22″ W x 59.25″ H , Depth with Door fully extended: 59.75″ D, Shelves Included: 3

Dimensions & weight

Width	27.5 in.
Depth	34 in.
Height	79.5 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The CF1S-FS Commercial Series Upright Single Section Freezer with a Full Stainless Door and One piece, full door length, extruded aluminum flush mount door handle is an attractive workhorse for any business. The durable 1/2 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of freezing cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.

Product Features

Discontinued – Replaced by F1A-FS
Dimensions: 27.5″ W x 34″ D x 79.5″ H
Net capacity of 20.9 cubic feet
Nominal Compres. of 2466 BTU/hr at 1/2 HP
Electrical consumption of 5.38 kWh/day at 9 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Exclusive stepped door design to protect recessed magnetic door gasket
Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
One piece, full door length, extruded aluminum flush mount door handle
Unique “ducted” air distribution system
Full Stainless Door come standard with locks
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior with stainless steel exterior front and sides
Solid state digital controller with temperature alarms and LED display (°F or °C)
R-404a refrigerant
Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 3 epoxy coated wire coated wire shelves
Stainless steel supports adjustable in 1″ increments
Standard with (4) 4″ Stem Casters (2 with brakes)
Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, door reversal kit, air filter
115v/60/1, 10 ft. cord and plug
Shipping Crate: 39.5″ L x 31.5″ D x 83″ H at 360 lbs
Energy efficient non-electric evaporation system
Five Years compressor warranty, Three Years parts and labor warranty
